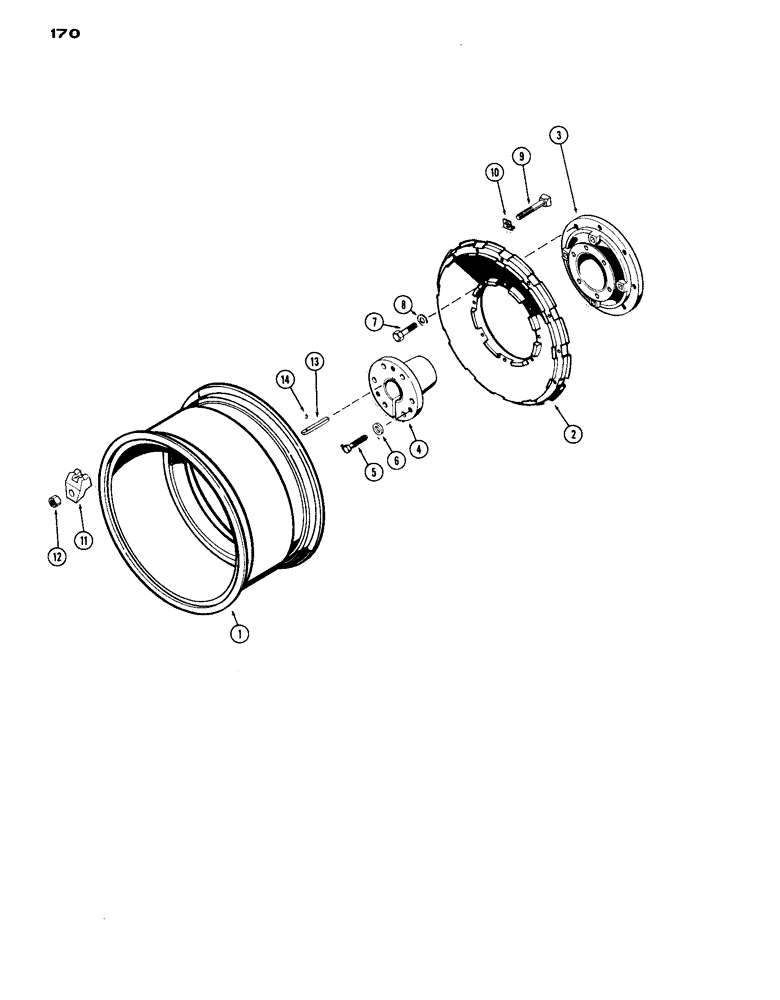

Запчасти Case IH 1070 (170) - DUAL REAR WHEELS, CAST W/38" RIMS, USED WITH 3-1/2" DIA. AXEL (06) - POWER TRAIN

1

A34102

RIM

rear wheel, takes 18.4 x 38" tire

2шт.

2

A33174

WHEEL

rear, universal hub

2шт.

3

A59791

HUB

universal, 3-1/2" tapered bushing

2шт.

4

A59792

HUB

BUSHING tapered, rear wheel

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT hex., 3/4" N.C.

6шт.

6

D31328

WASHER

49/64 x 5/8 x 1/4"

6шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Rear wheel to hub Hex, 5/8"-11 x 2 1/2", G5

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

3/4" x 3-1/2" N.C. sq. hd., cadmium plated

16шт.

10

A34799

LOCK WASHER

lock, rim to wheel clamp bolt

16шт.

11

A57654

CLAMP

double ramp type, Serial Range: rim-wheel

16шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

hex., 3/4" N.C., heavy, cadmium plated

16шт.

13

A34890

BUCKET TOOTH KEY

KEY hub to rear axle

2шт.

14

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.
