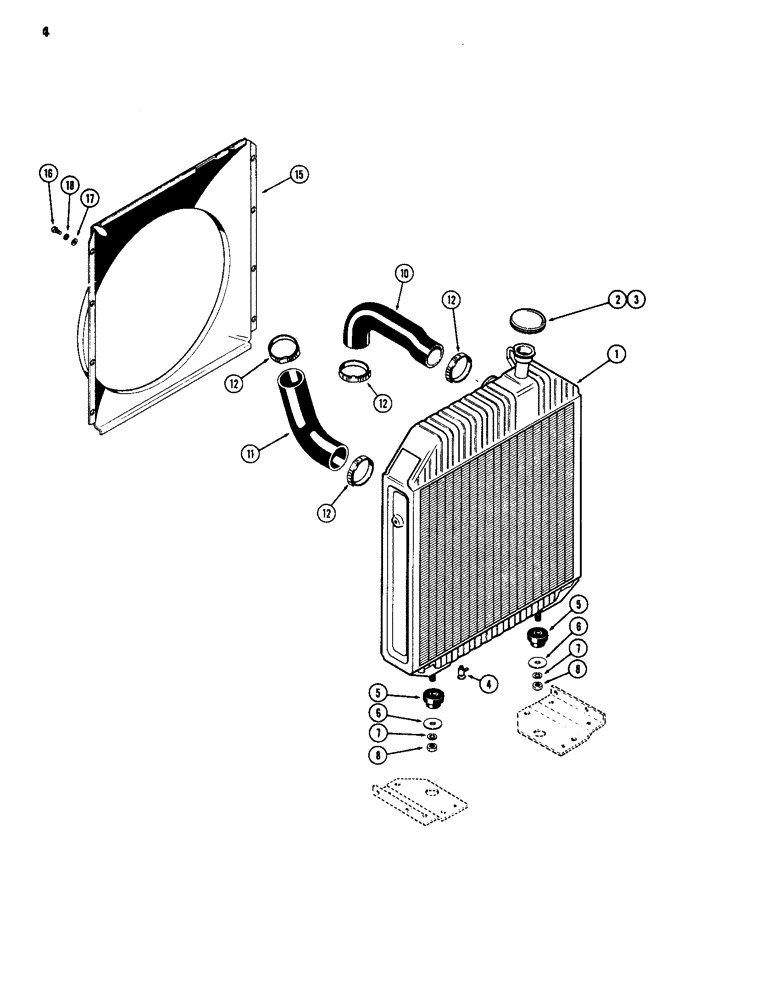

Запчасти Case IH 1070 (004) - RADIATOR, (451B) DIESEL ENGINE (02) - ENGINE

1

A60318

RADIATOR

1шт.

2

A61784

CAP

radiator, w/ air conditioner, 14 P.S.I.

1шт.

3

A59861

RADIATOR

CAP radiator, w/o air conditioner, 7 P.S.I.

1шт.

4

A23656

COCK, DRAIN

VALVE radiator drain, Replaces A23655

1шт.

5

A59863

MOUNTING PARTS

MOUNT center bonded

2шт.

6

51200247

WASHER

center bonded mount snubber

2шт.

7

192-163

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

10

A59887

LARGE HOSE,2.50" ID x 9.80", SAE 20R4 CLASS D1 OR D2

RADIATOR HOSE, , Inlet 2.50" ID x 9.80", SAE 20R4 CLASS D1 OR D2

1шт.

11

A59865

HOSE,2.25" ID x 7.38", SAE 20R4 CLASS SC

RADIATOR HOSE, , Outlet 2.25" ID x 7.38", SAE 20R4 CLASS SC

1шт.

12

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP radiator hose, 2-5/16 to 3-1/4"

4шт.

15

A59891

GUARD

SHROUD fan

1шт.

16

113-22

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

1/4 x 1/2" N.C. hex.

8шт.

17

195-515

WASHER,#12

1/4 x 1/2 x 1/16"

8шт.

18

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

8шт.
