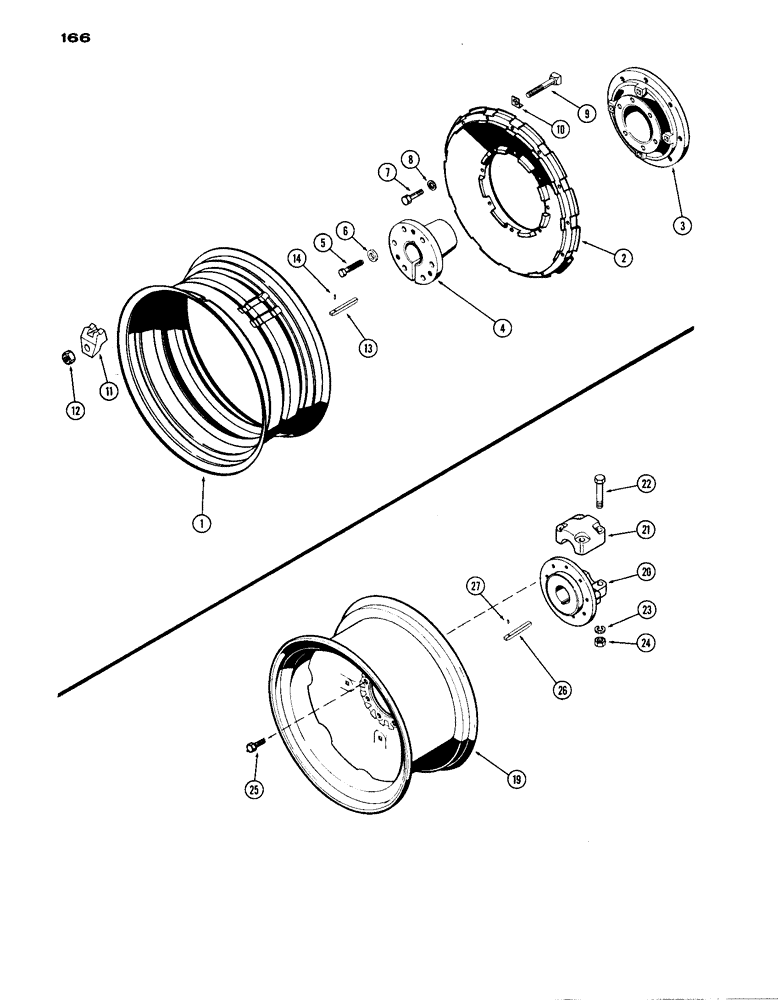

Запчасти Case IH 1070 (166) - DUAL REAR WHEELS, CAST W/ 34" RIMS, 3-1/2" DIA. AXLE (06) - POWER TRAIN

1

A57045

RIM

rear wheel, takes 18.4 x 34 tire

2шт.

2

A33172

WHEEL

rear, universal hub

2шт.

3

A59791

HUB

universal, 3-1/2" tapered bushing

2шт.

4

A59792

HUB

BUSHING tapered, rear wheel hub

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT hex. hd. 3/4" N.C.

6шт.

6

D31328

WASHER

49/64 x 1-5/8 x 1/4"

6шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Rear wheel to hub Hex, 5/8"-11 x 2 1/2", G5

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

3/4 x 3-1/2" N.C. square head

24шт.

10

A34799

LOCK WASHER

lock, rim to wheel clamp bolt

24шт.

11

A57654

CLAMP

double ramp type, Serial Range: rim-wheel

24шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

hex., 3/4" N.C., heavy

24шт.

13

A34890

BUCKET TOOTH KEY

KEY hub to rear axle

2шт.

14

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, 1/4" x 1/2", Slotted

2шт.

19

A60628

RIM

rear wheel, takes 18.4 x 34 tire, stamped w/ 34" rims

2шт.

20

A60625

HUB

ASSY. dual rear wheel, Order (1) A62565 hub and (9) A62567 bolts, Includes Ref. 21 - 24, stamped w/ 34" rims

2шт.

21

A60627

CAP

hub, stamped w/ 34" rims

1шт.

22

14-1496

BOLT,Hex, 7/8" - 14 x 6", Gr 5

7/8 x 6" N.F. hex., grade 5, Replaces A24604, stamped w/ 34" rims

4шт.

23

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , Stamped w/ 34" rims 7/8"

4шт.

24

25-1114

NUT,7/8"-14, G5

hex., 7/8" N.F., stamped w/ 34" rims

4шт.

25

L13538

WHEEL BOLT

rim to hub, stamped w/ 34" rims

18шт.

26

A34890

BUCKET TOOTH KEY

KEY hub to axle, stamped w/ 34" rims

2шт.

27

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN, , Rear axle shaft key, stamped w/ 34" rims 1/4" x 1/2", Slotted

2шт.
