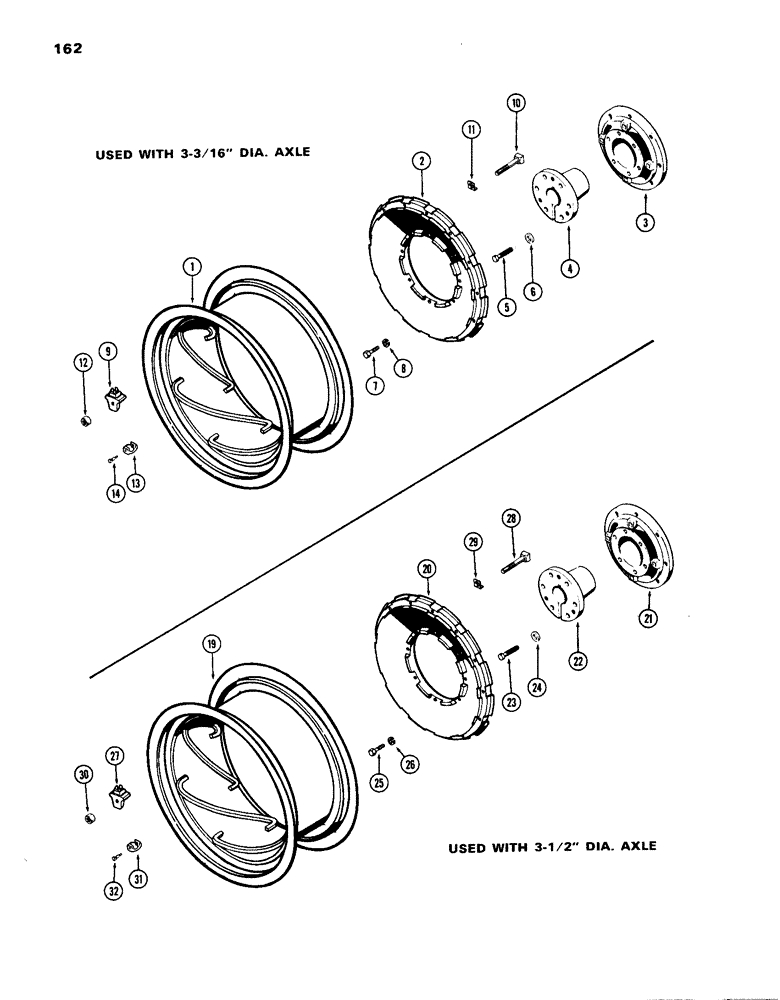

Запчасти Case IH 1070 (162) - REAR WHEELS W/34" RIMS, POWER ADJUSTABLE (06) - POWER TRAIN

1

A33170

RIM

rear wheel, take 16.9 x 34 tire, used w/ 3-3/16" dia. axle

2шт.

2

A33172

WHEEL

rear, universal hub, used w/ 3-3/16" dia. axle

2шт.

3

A59789

HUB

universal, used w/ 3-3/16" dia. axle

2шт.

4

A57993

BUSHING

rear wheel hub, used w/ 3-3/16" dia. axle

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT hex., bushing to hub, used w/ 3-3/16" dia. axle

12шт.

6

D31328

WASHER

49/64 x 1-5/8 x 1/4", used w/ 3-3/16" dia. axle

12шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Rear wheel to hub, used w/ 3-3/16" dia. axle Hex, 5/8"-11 x 2 1/2", G5

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used w/ 3-1/16" dia. axle 5/8"

16шт.

9

A33171

CLAMP

double ramp type, rim to wheel, used w/ 3-3/16" dia. axle

12шт.

10

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

sq. hd., 3/4 x 3" N.C., cadmium plated, used w/ 3-3/16" dia. axle

12шт.

11

A34799

LOCK WASHER

lock, rim to wheel clamp bolt, used w/ 3-3/16" dia. axle

12шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

hex., 3/4" N.C. heavy, cadmium plated, used w/ 3-3/16" dia. axle

12шт.

13

A9406

STOP

LUG rim, used w/ 3-3/16" dia. axle

4шт.

14

A9440

STOP

SCREW lock, lug, used w/ 3-3/16" dia. axle

4шт.

19

A33170

RIM

rear wheel, takes 16.9 x 34 tire, used w/ 3-1/2" dia. axle

2шт.

20

A33172

WHEEL

rear, universal hub, used w/ 3-1/2" dia. axle

2шт.

21

A59791

HUB

universal, used w/ 3-1/2" dia. axle

2шт.

22

A59792

HUB

BUSHING rear wheel, used w/ 3-1/2" dia. axle

2шт.

23

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT hex. hd., bushing to hub, used w/ 3-1/2" dia. axle

12шт.

24

D31328

WASHER

49/64 x 1-5/8 x 1/4", used w/ 3-1/2" dia. axle

12шт.

25

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Rear wheel to hub, used w/ 3-1/2" dia. axle Hex, 5/8"-11 x 2 1/2", G5

16шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used w/ 3-1/2" dia. axle 5/8"

16шт.

27

A33171

CLAMP

double ramp type, rim to wheel, used w/ 3-1/2" dia. axle

12шт.

28

117-603

SQUARE BOLT,3/4" - 10 x 3", Gr 5

sq. hd., 3/4 x 3" N.C., cadmium plated, used w/ 3-1/2" dia. axle

12шт.

29

A34799

LOCK WASHER

lock, rim to wheel clamp bolt, used w/ 3-1/2" dia. axle

12шт.

30

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

hex., 3/4" N.C. heavy, cadmium plated, used w/ 3-1/2" dia. axle

12шт.

31

A9406

STOP

LUG rim, used w/ 3-1/2" dia. axle

4шт.

32

A9440

STOP

SCREW lock, lug,, used w/ 3-1/2" dia. axle

4шт.
