(160) - REAR WHEELS W/38" RIMS, MANUAL ADJUSTABLE, USED WITH 3-3/16" DIA. AXEL

Запчасти Case IH 1070 (160) - REAR WHEELS W/38" RIMS, MANUAL ADJUSTABLE, USED WITH 3-3/16" DIA. AXEL (06) - POWER TRAIN

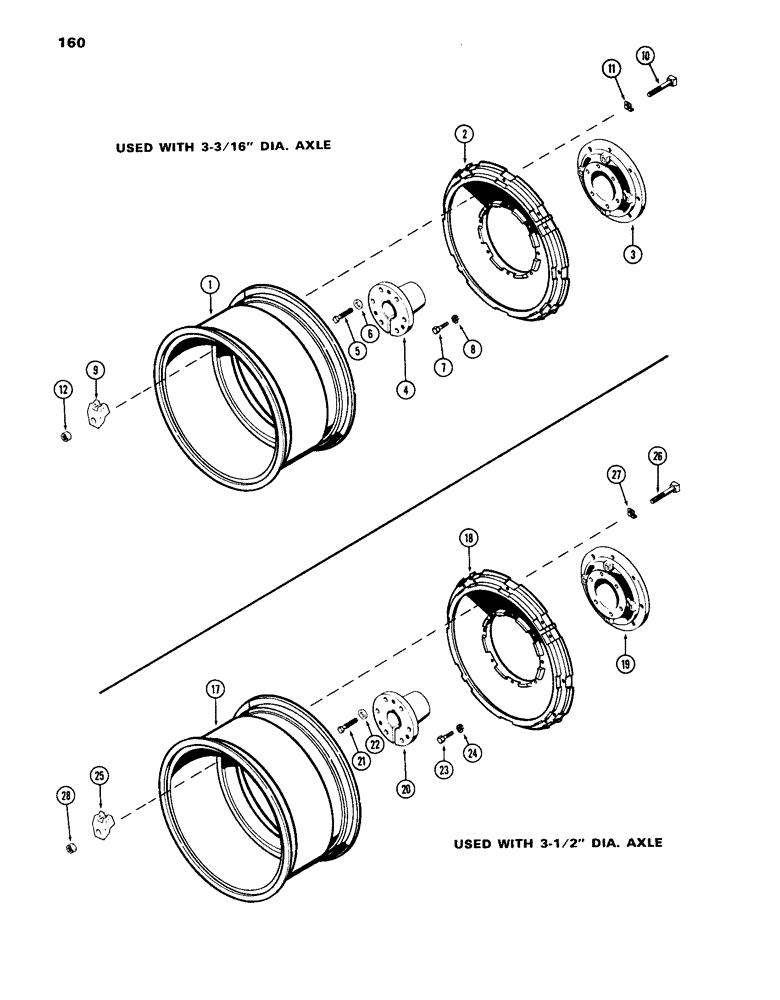

Схема запчастей Case IH 1070 - (160) - REAR WHEELS W/38" RIMS, MANUAL ADJUSTABLE, USED WITH 3-3/16" DIA. AXEL (06) - POWER TRAIN
27
22
12
20
23
3
2
4
10
17
18
6
24
25
9
26
8
5
21
1
11
28
19
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A33223

RIM

rear wheel, takes 14.9 x 38 or 15.5 x 38 tire

2шт.

1

A34102

RIM

rear wheel, takes 18.4 x 38 tire

2шт.

1

A62189

RIM

rear wheel, takes 20.8 x 38 tire

2шт.

2

A33174

WHEEL

rear, universal hub

2шт.

3

A59789

HUB

universal

2шт.

4

A57993

BUSHING

rear wheel hub

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT hex., bushing to hub

12шт.

6

D31328

WASHER

49/64 x 1-5/8 x 1/4"

12шт.

7

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Rear wheel to hub Hex, 5/8"-11 x 2 1/2", G5

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

16шт.

9

A57654

CLAMP

double ramp type, Serial Range: rim-wheel

16шт.

10

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

sq. hd., 3/4 x 3-1/2" N.C., cadmium plated

16шт.

11

A34799

LOCK WASHER

lock, rim to wheel clamp bolt

16шт.

12

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

BOLT hex., 3/4" N.C. heavy, cadmium plated

16шт.

17

A33223

RIM

rear wheel, takes 14.9 x 38 or 15.5 x 38 tire, used w/ 3-1/2" dia.

2шт.

17

A34102

RIM

rear wheel, takes 18.4 x 38 tire, used w/ 3-1/2" dia.

2шт.

18

A33174

WHEEL

rear, universal hub, used w/ 3-1/2" dia.

2шт.

19

A59791

HUB

universal, used w/ 3-1/2" dia.

1шт.

20

A59792

HUB

BUSHING rear wheel, used w/ 3-1/2" dia.

2шт.

21

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT hex. hd., bushing to hub, used w/ 3-1/2" dia.

12шт.

22

D31328

WASHER

49/64 x 1-5/8 x 1/4", used w/ 3-1/2" dia.

12шт.

23

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

Rear wheel to hub, used w/ 3-1/2" dia. Hex, 5/8"-11 x 2 1/2", G5

16шт.

24

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used w/ 3-1/2" dia. 5/8"

16шт.

25

A57654

CLAMP

double ramp type, rim to wheel, used w/ 3-1/2" dia.

16шт.

26

117-604

SQUARE BOLT,3/4" - 10 x 3 1/2", Gr 5

sq. hd., 3/4 x 3-1/2" N.C. cadmium plated, used w/ 3-1/2" dia.

16шт.

27

A34799

LOCK WASHER

lock, rim to wheel clamp bolt, used w/ 3-1/2" dia.

16шт.

28

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

hex., 3/4" N.C. heavy, cadmium plated, used w/ 3-1/2" dia.

16шт.
