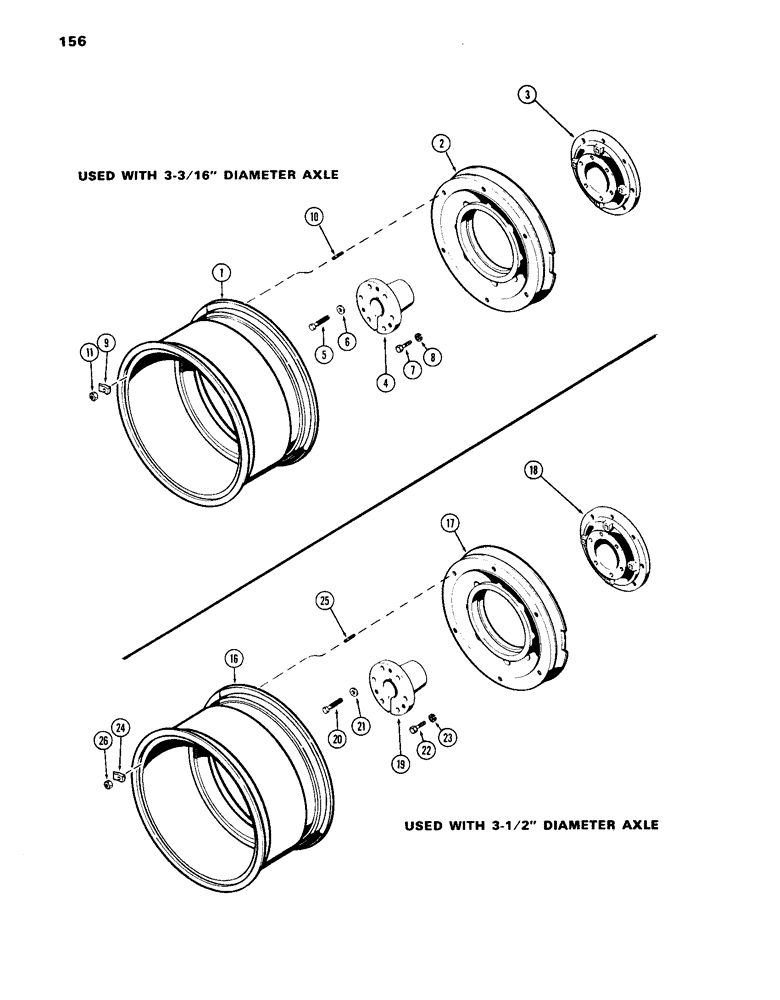

Запчасти Case IH 1070 (156) - REAR WHEELS W/30" RIMS, MANUAL ADJUSTABLE (06) - POWER TRAIN

1

A33176

RIM

rear wheel, use w/ 23.1 x 30 tire, used w/ 3-3/16" dia. axle

2шт.

2

A33175

WHEEL

rear, universal hub, used w/ 3-3/16" dia. axle

2шт.

3

A59789

HUB

universal, used w/ 3-3/16" dia. axle

2шт.

4

A57993

BUSHING

rear wheel hub, used w/ 3-3/16" dia. axle

2шт.

5

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT bushing to hub, used w/ 3-3/16" dia. axle

12шт.

6

D31328

WASHER

49/64 x 1-5/8 x 1/4", used w/ 3-3/16" dia. axle

12шт.

7

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Rear wheel to hub, used w/ 3-3/16" dia. axle Hex, 5/8"-11 x 2 1/4", G5

16шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used w/ 3-3/16" dia. axle 5/8"

16шт.

9

F62001

CLAMP

rim to wheel, used w/ 3-3/16" dia. axle

12шт.

10

A60047

STUD

rim to wheel clamp, 5/8" N.C. x 2-7/16", used w/ 3-3/16" dia. axle

12шт.

11

A27183

NUT

rim to wheel clamp stud, 5/8" N.C. hex., special, used w/ 3-3/16" dia. axle

12шт.

16

A33176

RIM

rear wheel, use w/ 23.1 x 30 tire, used w/ 3-1/2" dia. axle

2шт.

17

A33175

WHEEL

rear, universal hub, used w/ 3-1/2" dia. axle

2шт.

18

A59791

HUB

universal, used w/ 3-1/2" dia. axle

2шт.

19

A59792

HUB

BUSHING rear wheel hub, used w/ 3-1/2" dia. axle

2шт.

20

1533578C1

SPECIAL BOLT,Hex, 3/4" - 10 x 4.38", Gr 5

BOLT bushing to hub, used w/ 3-1/2" dia. axle

12шт.

21

D31328

WASHER

49/64 x 1-5/8 x 1/4", used w/ 3-1/2" dia. axle

12шт.

22

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

Rear wheel to hub, used w/ 3-1/2" dia. axle Hex, 5/8"-11 x 2 1/4", G5

16шт.

23

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Used w/ 3-1/2" dia. axle 5/8"

16шт.

24

F62001

CLAMP

rim to wheel, used w/ 3-1/2" dia. axle

12шт.

25

A60047

STUD

rim to wheel clamp, 5/8" N.C. x 2-7/16", used w/ 3-1/2" dia. axle

12шт.

26

A27183

NUT

rim to wheel clamp stud, 5/8" N.C. hex., special, used w/ 3-1/2" dia. axle

12шт.
