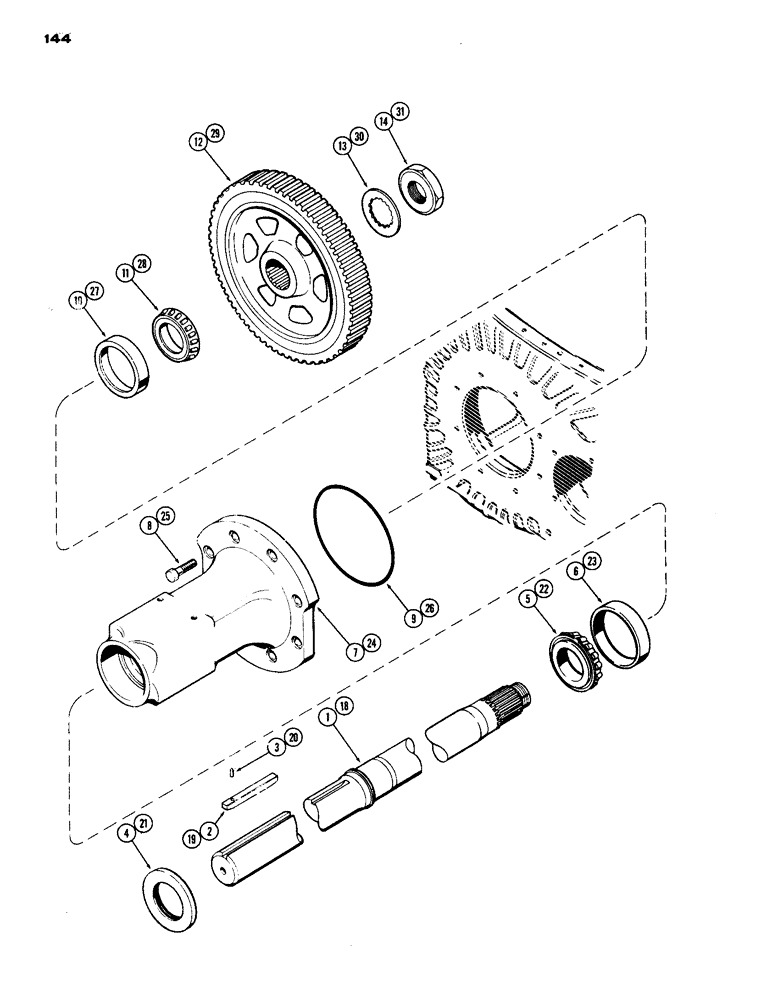

Запчасти Case IH 1070 (144) - 96" REAR AXLE, 3-1/2" DIAMETER INTERMEDIATE AXLE (06) - POWER TRAIN

1

A62205

SHAFT rear axle, 3-1/2" dia., 46" long

2шт.

2

A34890

BUCKET TOOTH KEY

KEY rear axle, 5/8" sq. x 6"

2шт.

3

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN key, 1/4 x 1-3/8" roll

2шт.

4

A59046

OIL SEAL

oil, 3-7/8 x 5-3/4 x 3/8"

2шт.

5

A59049

ROLLER BEARING

CONE bearing, housing, outer, 3-9/16" I.D.

2шт.

6

A59048

BEARING CUP

CUP bearing, housing, outer, 5-11/16" O.D.

2шт.

7

A62283

HOUSING

rear axle shaft, Replaces A59045

2шт.

8

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

5/8 x 2-1/4" N.C. hex.

16шт.

9

A33050

OIL SEAL

axle housing, 9 x 9-1/4 x 1/8"

2шт.

10

A50324

BEARING CUP

CUP bearing, housing, inner, 5-1/4" O.D.

2шт.

11

A34339

BEARING

CONE bearing, housing, inner, 3-1/4" I.D.

2шт.

12

A32805

GEAR

final drive

2шт.

13

A32806

LOCK WASHER

lock, drive, Serial Range: gear-axle

2шт.

14

A23386

NUT

lock, drive gear

2шт.

18

A59047

SHAFT

rear axle, 3-1/2" dia., 57-1/8" long, 118 rear axle

2шт.

19

A34890

BUCKET TOOTH KEY

KEY rear axle, 5/8" sq. x 6", 118 rear axle, 3-1/2" dia. long

2шт.

20

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN roll, rear axle shaft key, 1/4 x 1-3/8", 118 rear axle, 3-1/2" dia. long

2шт.

21

A59046

OIL SEAL

oil, 3-7/8 x 5-3/4 x 3/8", 118 rear axle, 3-1/2" dia. long

2шт.

22

A59049

ROLLER BEARING

CONE bearing, housing, outer, 3-9/16" I.D., 118 rear axle, 3-1/2" dia. long

2шт.

23

A59048

BEARING CUP

CUP bearing, housing, outer, 5-11/16" O.D., 118 rear axle, 3-1/2" dia. long

2шт.

24

A62283

HOUSING

rear axle, Replaces A59045, 118 rear axle, 3-1/2" dia. long

2шт.

25

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

5/8 x 2-1/4" N.C. hex., 118 rear axle, 3-1/2" dia. long

16шт.

26

A33050

OIL SEAL

oil, rear axle housing, rubber, 9 x 9-1/4 x 1/8", 118, 3-1/2" dia. long

2шт.

27

A50324

BEARING CUP

CUP bearing, housing, inner, 5-1/4" O.D., 118 rear axle, 3-1/2" dia. long

2шт.

28

PA34339

NUT

CONE bearing, housing inner, 3-1/4" I.D., 118 rear axle, 3-1/2" dia. long

2шт.

29

A32805

GEAR

final drive, rear axle, 118, 3-1/2" dia. long

2шт.

30

A32806

LOCK WASHER

lock, rear axle, 2-7/16 x 4-7/8 x 5/64", 118, 3-1/2" dia. long

2шт.

31

A23386

NUT

lock, rear axle shaft, 118, 3-1/2" dia. long

2шт.
