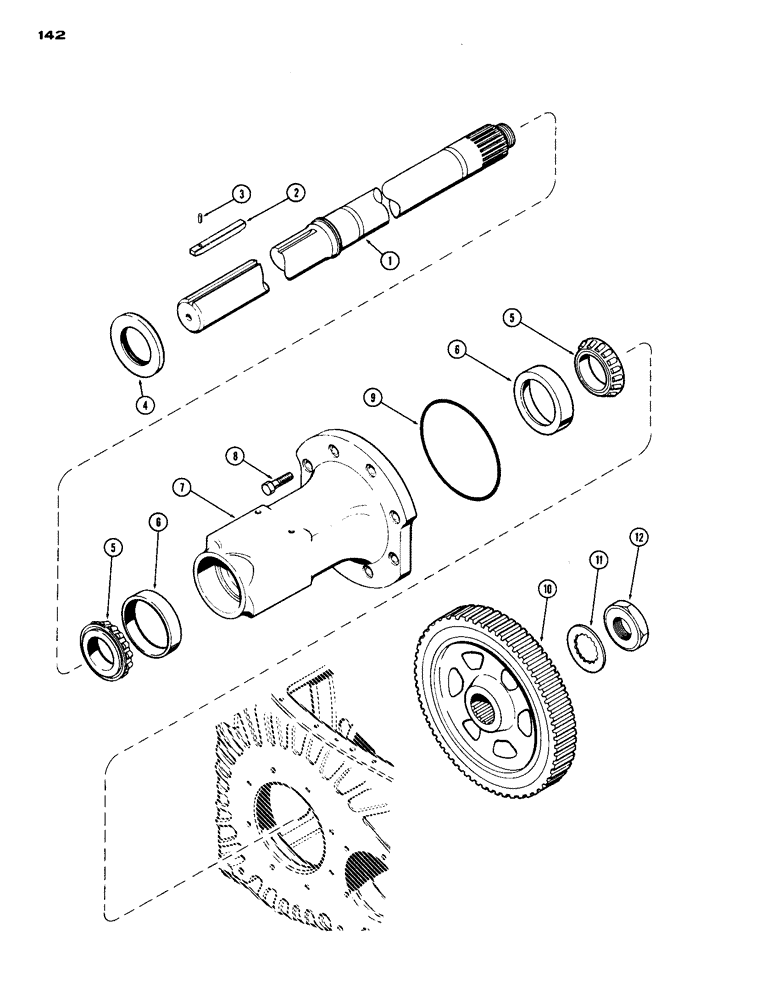

Запчасти Case IH 1070 (142) - 88" REAR AXLE, 3-3/16" DIAMETER SHORT AXLE (06) - POWER TRAIN

1

A57646

SHAFT

rear axle, 3-3/16" dia., 40-3/4" length, Replaces A58482

2шт.

2

A34890

BUCKET TOOTH KEY

KEY rear axle, 5/8" sq. x 6"

2шт.

3

138-127

LOCK PIN,1/4" x 1/2", Slotted

PIN roll, shaft key, rear axle, 1/4 x 1-3/8"

2шт.

4

A41814

SEAL

KIT oil seal, rear axle shaft

2шт.

NSS

NOT SOLD SEPARAT

SLEEVE wear, Order A41814, not illustrated

1шт.

NSS

NOT SOLD SEPARAT

SEAL oil, Order A41814, not illustrated

1шт.

5

PA34339

NUT

CONE bearing, rear axle shaft

4шт.

6

A50324

BEARING CUP

CUP bearing, rear axle shaft

4шт.

7

A58481

HOUSING axle, rear

2шт.

8

26-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

5/8 x 2-1/4" N.C. hex.

16шт.

9

A33050

OIL SEAL

oil, rear axle housing, rubber, 9 x 9-1/4 x 1/8"

2шт.

10

A32805

GEAR

final drive, rear axle

2шт.

11

A32806

LOCK WASHER

lock, rear axle shaft, 2-7/16 x 4-7/8 x 5/64"

2шт.

12

A23386

NUT

lock, rear axle shaft

2шт.
