Запчасти Case IH 1070 (141A) - PARKING BRAKE (06) - POWER TRAIN

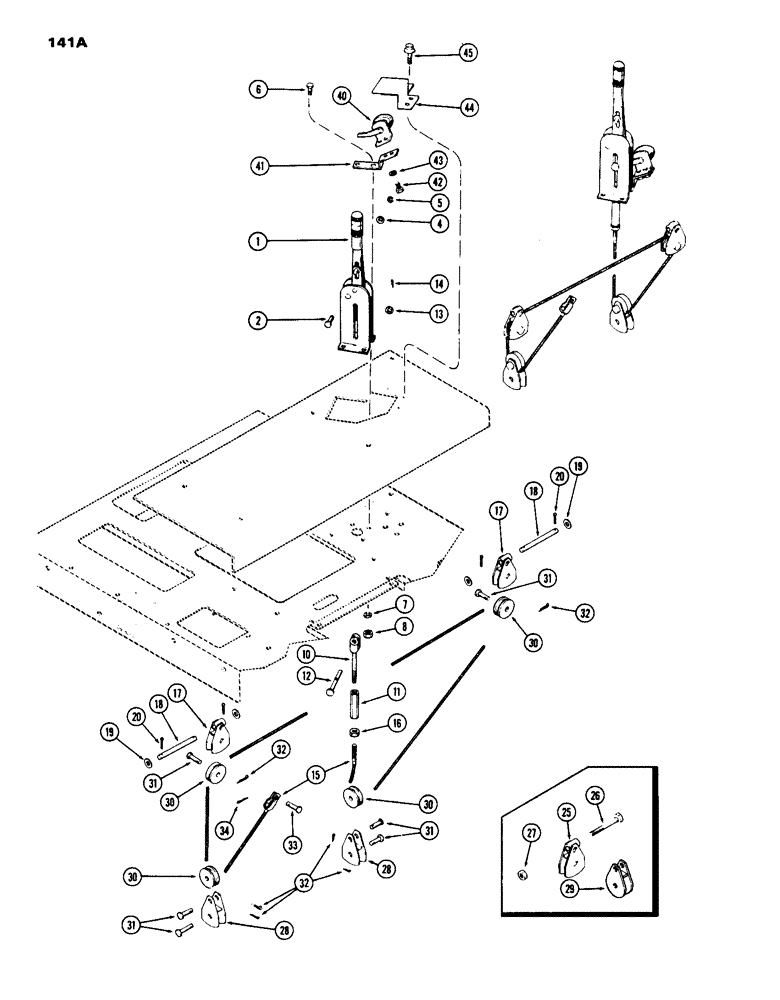

Схема запчастей Case IH 1070 - (141A) - PARKING BRAKE (06) - POWER TRAIN
4
32
16
5
32
10
18
45
41
31
43
30
20
25
34
31
17
42
40
19
12
44
28
2
19
6
13
30
26
30
7
8
17
28
18
11
27
15
1
33
20
30
31
14
32
31

Артикул

Название

Примечание

Количество

1

A59410

LEVER

ASSY. hand brake, Includes Ref. 2 - 5

1шт.

2

A42204

PIN

hand brake lever

1шт.

A47261

BUSHING

WASHER, 21/64 x 39/64 x 1/100", conical spring, not illustrated, Order A55937

1шт.

4

195-521

WASHER,5/16", SAE

11/32 x 11/16" x 16 ga.

1шт.

5

C14652

RING

hand brake lever pin retaining

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

7

92-6

LOCK WASHER,3/8"

3шт.

8

25-106

NUT,3/8"-16, G5

3/8" N.C. hex.

3шт.

10

A59411

ROD

END rod

1шт.

11

A59412

TURNBUCKLE

1шт.

12

A59153

CLEVIS PIN

PIN clevis, brake lever, Order (1) A76379, (1) 132-26 and (1) 195-21

1шт.

13

195-21

WASHER,5/16"

5/16 x 7/8 x 1/16"

2шт.

14

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

15

A59420

CABLE

parking brake

1шт.

16

25-145

JAM NUT,Jam, 5/16"-18, G5

5/16" N.C. hex., jam

1шт.

17

A62258

SUPPORT

pulley, parking brake

2шт.

18

A62262

PIN

pulley support

2шт.

19

195-21

WASHER,5/16"

5/16 x 7/8 x 1/16"

4шт.

20

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

25

A61881

SUPPORT

ASSY. pulley, upper, Replaces A60534, Order (1) A62258, (1) A62262, (2) 195-21 and (2) 132-26

2шт.

26

13-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16"-18 NC x 3-1/2"

2шт.

27

131-173

NUT,5/16"-18, GA

5/16" N.C. lock

2шт.

28

A62260

SUPPORT

ASSY. pulley lower

2шт.

29

A61882

SUPPORT

ASSY. pulley, Replaces A60540, Order A62260

2шт.

30

A59416

SHEAVE

PULLEY parking brake cable

4шт.

31

A59419

PIN,7.9mm OD x 30.96mm L

clevis, parking brake pulley and cable

6шт.

32

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

6шт.

33

141-1

CLEVIS PIN,3/16" x .580"

PIN clevis, 3/16 x 37/64"

1шт.

34

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

40

A33977

SWITCH

brake light

1шт.

41

A60542

BRACKET brake light switch

1шт.

42

174-95

SCREW,Sl Rd Hd, #10 - 32 x 3/8"

no. 10 x 3/8" N.F. rd. hd. mach.

2шт.

43

193-26

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

2шт.

44

A59422

COVER parking brake light switch

1шт.

45

187-1053

SELF-TAP SCREW,Truss Hd, #10 x 1/2"

SCREW, no. 10 x 1/2" truss hd., self-tapping

3шт.

Выбрано товаров: 35
