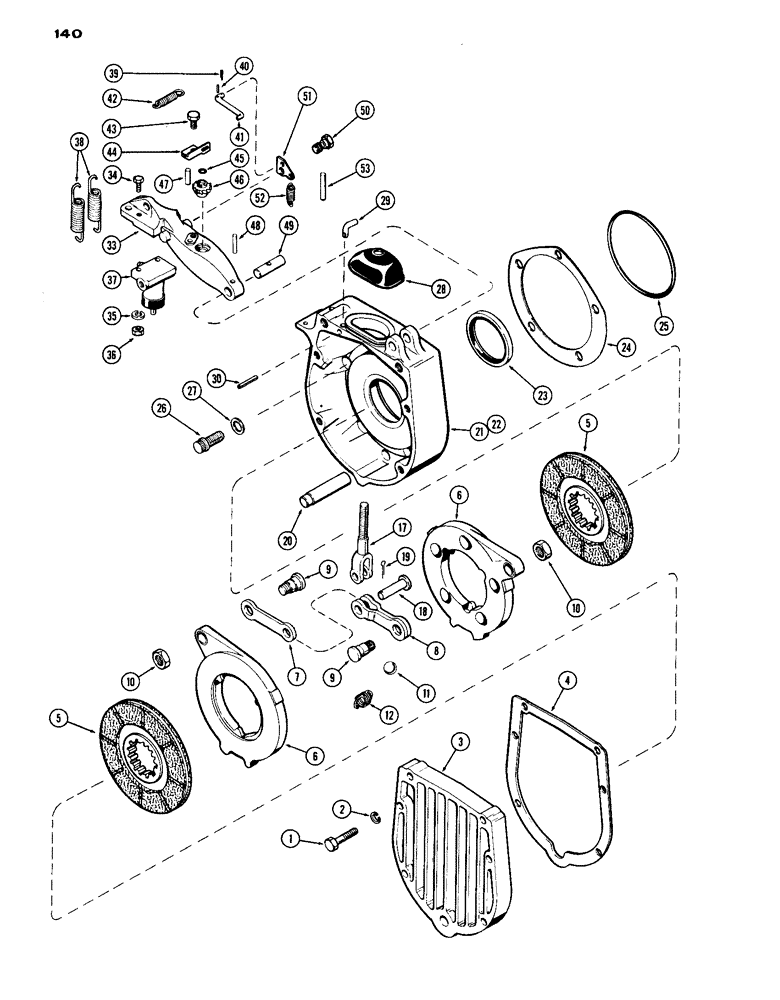

Запчасти Case IH 1070 (140) - DIFFERENTIAL BRAKE (06) - POWER TRAIN

1

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

12шт.

2

92-8

LOCK WASHER,1/2"

12шт.

3

A58461

COVER

Differential brake

2шт.

4

A59088

SHIM,.1196" Thk

Differential brake cover (.1266/.1126")

4шт.

5

A58474

DISC

ASSY brake, w/ bonded lining, Order A65336

4шт.

6

A41860

DISC

Brake actuating

4шт.

7

A41861

LINK

Actuating disc, single

2шт.

8

A41862

LINK

Actuating disc, dual

2шт.

9

A41865

BOLT

BOLT actuating disc

4шт.

10

A42801

JAM NUT

Hex, 1/2" N.F. jam, special, Replaces 129-165

4шт.

11

A42043

BALL

Actuating, 1" dia.

10шт.

12

A41864

SPRING

Disc tension

6шт.

17

A58021

ROD

Differential brake

2шт.

18

141-7

CLEVIS PIN,5/8" x 1.610"

Yoke end, 5/8 x 1-29/64"

2шт.

19

132-48

COTTER PIN,1/8" x 1"

Clevis pin

2шт.

20

A58449

PIN

Anchor, differential brake

2шт.

21

A58454

HOUSING

ASSY. differential brake w/ seal, RH

1шт.

22

A58455

HOUSING

ASSY. differential brake w/ seal, LH, Includes Ref. 23

1шт.

23

A57658

OIL SEAL

Oil, differential brake housing

1шт.

24

A60490

SHIM,.003" Thk

Differential brg. carrier

1шт.

24

A60491

SHIM,.005" Thk

Differential brg. carrier

1шт.

24

A60492

SHIM,.010" Thk

Differential brg. carrier

1шт.

25

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

2шт.

26

A60496

LOCK BOLT

5/8 x 2-1/2" N.C. ferry cap

4шт.

26

A62449

FLANGE BOLT

5/8 x 2-3/4" N.C. ferry cap

6шт.

27

A29881

WASHER

41/64 x 1-1/16 x 1/16"

10шт.

28

A27465

CAP

Dust, differential brake rod

2шт.

29

A59319

STUD

Spring hold-down

2шт.

30

138-71

LOCK PIN,5/32" x 5/8", Slotted

Spring stud

2шт.

33

A62923

LEVER

Actuating differential brake, Replaces A60695

2шт.

34

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

35

92-4

LOCK WASHER,1/4"

4шт.

36

25-104

NUT,1/4"-20, G5

4шт.

37

REF

INSTRUCTION

CYLINDER ASSY. brake slave, 7/8" dia., See Figure 154

2шт.

38

A35789

SPRING

Return, brake actuating lever, 2-3/4" free length

4шт.

39

132-5

COTTER PIN,1/16" x 1/2"

2шт.

40

138-20

LOCK PIN,5/64" x 1/2", Slotted

2шт.

41

A59607

ROD

Brake, self-adjusting

2шт.

42

A60555

SPRING

Self-adjusting brake rod, 1-39/64" free length

2шт.

43

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

44

A59609

BRACKET

Self-adjusting brake rod

2шт.

45

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

2шт.

46

A62230

NUT

Ratchet adjusting, 20T, used w/ hyd. brakes

2шт.

46

A60488

NUT

Ratchet adjusting, 16T, used w/ power brakes

2шт.

47

138-92

LOCK PIN,3/16" x 3/4", Slotted

2шт.

48

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

Brake lever to brake pin

2шт.

49

A62822

PIN

Brake lever, 5/8 x 2-1/4", chrome, Replaces A61952

2шт.

50

A58471

STEP BOLT

Shoulder, self adjuster cam

2шт.

51

A64490

CAM

Self adjusting differential brake, Replaces A59606

2шт.

52

A60489

SPRING

Self adjusting cam to stud, 1-23/32" free length

2шт.

53

A61216

ROD

Spring, self adjuster cam to stud, Replaces A59608

2шт.
