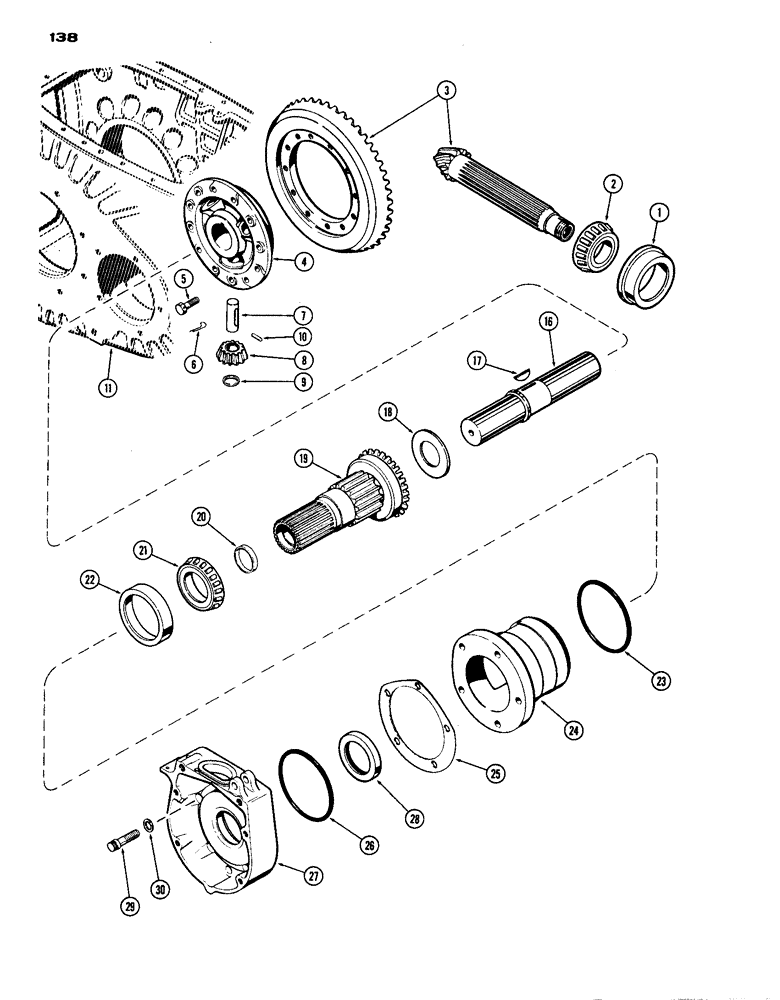

Запчасти Case IH 1070 (138) - DIFFERENTIAL (06) - POWER TRAIN

1

A34332

CUP

BEARING tapered flange cup, countershaft, rear

1шт.

2

A34333

CONE

BEARING tapered cone, countershaft, rear

1шт.

3

A34574

X

GEAR SET countershaft and ring gear, Order A64188

1шт.

4

A33905

WHEEL

center, differential, Order (1) A142498 and (4) A64747

1шт.

5

A32769

BOLT

center wheel to ring gear, drilled head

12шт.

6

391-705

ELECTRICAL WIRE

WIRE 18 ga., 0.0475" x no. 10 annealed

6шт.

7

A62214

PIN

differential pinion gear, Replaces A34174

4шт.

8

A62530

PINION

GEAR pinion, differential bevel, Replaces A32767

4шт.

9

A33539

WASHER

thrust, differential pinion gear

4шт.

10

138-2019

PIN,5/16" x 7/8", Coiled

4шт.

11

A61181

HOUSING transmission, power shift, 1st used tractor ser. no. 8650101

1шт.

11

A58419

HOUSING transmission, power shift, used prior to tractor ser. no. 8650101, Order A61181

1шт.

11

A58972

HOUSING transmission, mechanical shift

1шт.

16

A34800

SHAFT

differential, Order A62902

1шт.

17

126-51

WOODRUFF KEY,#TX, 3/8" x 2 3/4"

KEY woodruff, center wheel, 3/8 x 2-3/4"

1шт.

18

A62407

WASHER

thrust, differential gear, Replaces A58448

2шт.

19

A58008

GEAR

ASSY. differential side, with sleeve and plug, Order A64748, Includes Ref. 20

2шт.

20

41-1042

PLUG,Cup, 2 5/8"

cup type, differential side gear, Replaces A24555

1шт.

21

A34340

ROLLER BEARING

BEARING tapered cone, differential side gear

2шт.

22

A34343

BEARING CUP

BEARING tapered cup, differential side gear

2шт.

23

A28183

O-RING,0.139" Thk x 6.234" ID, -259, Cl 5, 75 Duro

6-1/4 x 6-1/2 x 1/8"

2шт.

24

A60493

SLEEVE

ASSY support, with bushing

2шт.

25

A60490

SHIM,.003" Thk

Differential brg. carrier .003" Thk

1шт.

25

A60491

SHIM,.005" Thk

Differential brg. carrier .005" Thk

1шт.

25

A60492

SHIM,.010" Thk

Differential brg. carrier .010" Thk

1шт.

26

D36103

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

differential brake housing

2шт.

27

A58454

HOUSING

ASSY. differential brake w/ seal, R.H.

1шт.

27

A58455

HOUSING

ASSY. differential brake w/ seal, L.H., Includes Ref. 28

1шт.

28

A57658

OIL SEAL

oil, differential brake hsg.

1шт.

29

A60496

LOCK BOLT

BOLT, 5/8 x 2-1/2" N.C. ferry cap, self-sealing

4шт.

29

A62449

FLANGE BOLT

BOLT, 5/8 x 2-3/4" N.C. ferry cap

6шт.

30

A29881

WASHER

41/64 x 1-1/16 x 19/32"

10шт.
