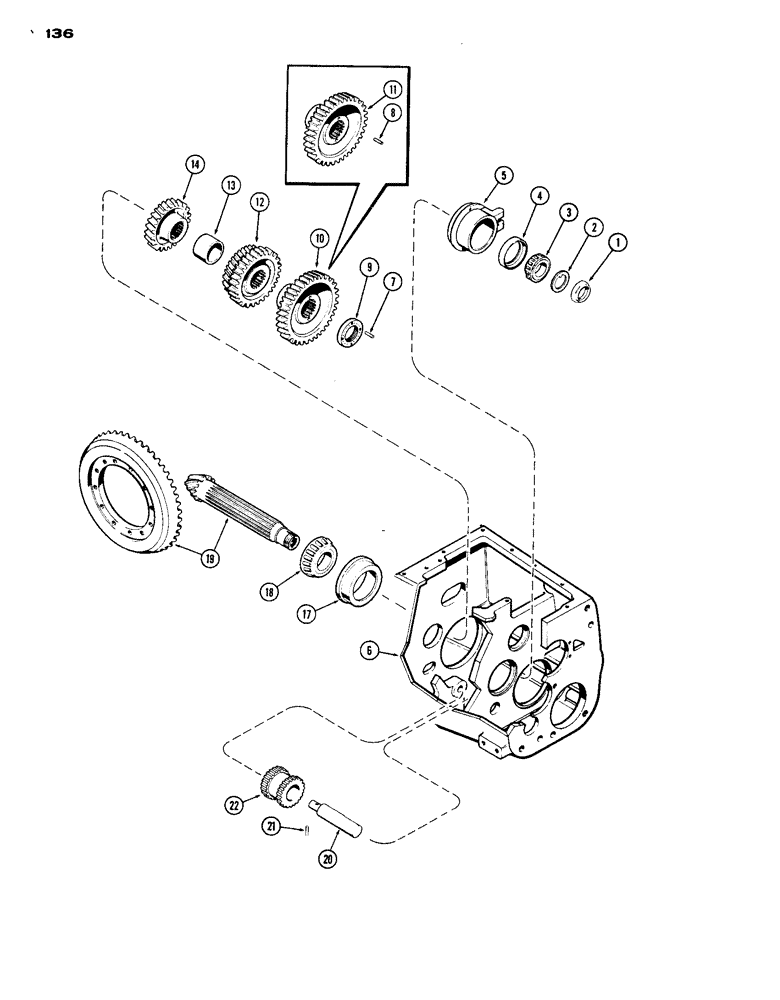

Запчасти Case IH 1070 (136) - COUNTER AND REVERSE IDLER SHAFTS, MECHANICAL SHIFT (06) - POWER TRAIN

1

A60019

NUT

lock, countershaft front bearing

1шт.

2

A28170

WASHER

thrust, countershaft front bearing

1шт.

3

A32764

ROLLER BEARING,1.875" ID x 1"

BEARING tapered cone, countershaft, front

1шт.

4

A32763

CUP

BEARING tapered cup, countershaft, front

1шт.

5

A61820

CARRIER

countershaft front bearing, Replaces A61758 or A59006

1шт.

6

A58972

HOUSING transmission

1шт.

7

138-2053

PIN,1/4" x 1 1/4", Coiled

Locknut (use w/A61893 gear) (1st used trans. S/N 2349308) 1/4" x 1 1/4", Coiled

1шт.

8

138-2051

PIN,1/4" x 3/4", Coiled

Locknut (use w/ A33561gear) (used prior to trans. S/N 2349308) 1/4" x 3/4", Coiled

1шт.

9

A61115

NUT

lock, countershaft gear

1шт.

10

A61893

GEAR

driven, 1st and 5th, 40 external and 26 internal teeth, use w/ 138-2053 pin, 1st used trans. ser. no. 2349308

1шт.

11

A33561

GEAR

used w/ 138-2051 pin, used prior to trans. ser. no. 2349308, Order (1) A61893 and (1) 138-2053

1шт.

12

A58146

GEAR

cluster, 2nd and 3rd speed driven, 31 and 36 ext. and 26 int. teeth

1шт.

13

A57651

BUSHING

SPACER countershaft gear

1шт.

14

A57445

GEAR

4th speed driven, 29 ext. and 26 int. teeth

1шт.

17

A34332

CUP

BEARING taper, flange cup, countershaft, rear

1шт.

18

A34333

CONE

BEARING tapered cone, countershaft, rear

1шт.

19

A34574

X

SET gear, countershaft and ring gear, Order A64188

1шт.

20

A58140

SHAFT

idler, reverse, Order A62910

1шт.

21

138-224

LOCK PIN,5/16" x 3/4", Slotted

PIN, , Reverser idler shaft to trans. case 5/16" x 3/4", Slotted

1шт.

22

A58141

GEAR

ASSY. reverse idler with bushing

1шт.
