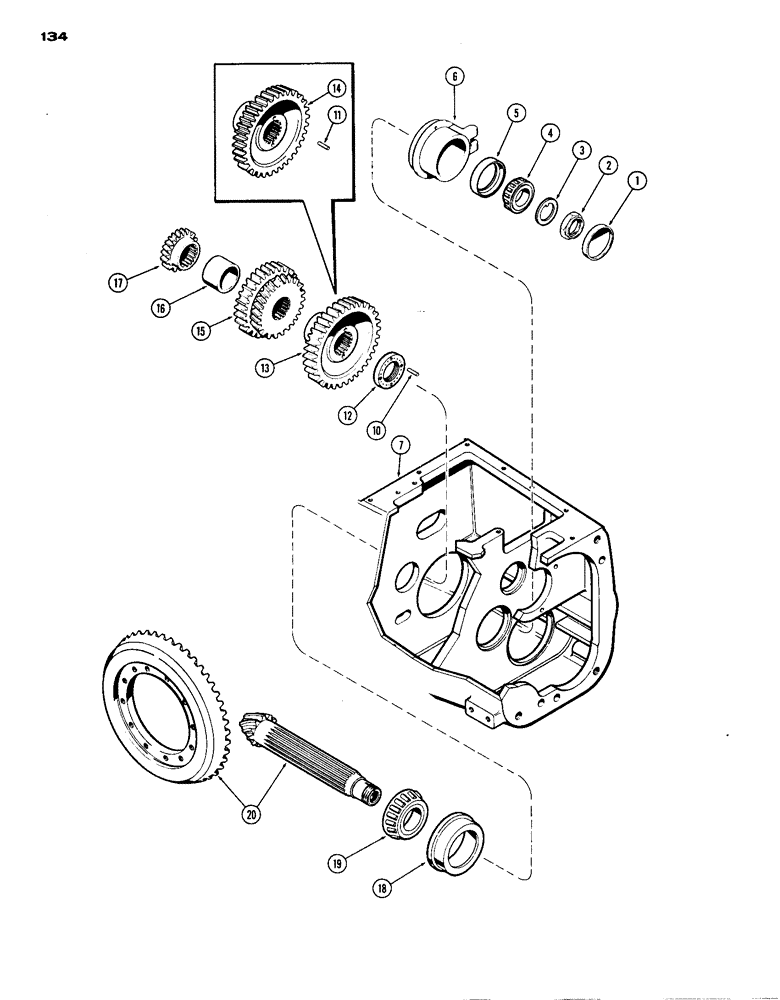

Запчасти Case IH 1070 (134) - COUNTERSHAFT, POWER SHIFT (06) - POWER TRAIN

1

A58007

PLUG

cup type, countershaft front bearing

1шт.

2

A60019

NUT

lock, countershaft front bearing

1шт.

3

A28170

WASHER

thrust, countershaft front bearing

1шт.

4

A32764

ROLLER BEARING,1.875" ID x 1"

BEARING tapered cone, countershaft, front

1шт.

5

A32763

CUP

BEARING tapered cup, countershaft, front

1шт.

6

A61820

CARRIER

countershaft front bearing, Replaces A61758 or A59006

1шт.

7

A61181

HOUSING trans., 1st used tractor ser. no. 8650101

1шт.

7

A58419

HOUSING trans., used prior to tractor ser. no. 8650101, Order A61181

1шт.

10

138-2053

PIN,1/4" x 1 1/4", Coiled

Locknut (use w/A61894 gear) (1st used trans. S/N 2349168) 1/4" x 1 1/4", Coiled

1шт.

11

138-2051

PIN,1/4" x 3/4", Coiled

Locknut (use w/A58005 gear) (used prior to trans. S/N 2349168) 1/4" x 3/4", Coiled

1шт.

12

A61115

NUT

lock, countershaft gear

1шт.

13

A61894

GEAR

1st range driven, 40 ext. and 26 int. teeth, use w/ 138-2053 pin, 1st used trans. ser. no. 2349168

1шт.

14

A58005

GEAR

1st range driven, 40 ext. and 26 int. teeth, use w/ 138-2051 pin, used prior to trans. ser. no. 2349168, Order (1) A61894 and (1) 138-2053

1шт.

15

A58004

GEAR

cluster, 2nd and 3rd range driven, 34 ext. and 26 int. teeth

1шт.

16

A57651

BUSHING

SPACER countershaft range gear

1шт.

17

A58003

GEAR

4th range driven, 18 ext. and 26 int. teeth

1шт.

18

A34332

CUP

BEARING tapered flange cup, countershaft, rear

1шт.

19

A34333

CONE

BEARING tapered cone, countershaft, rear

1шт.

20

A34574

X

SET gear, counter shaft and ring gear, Order A64188

1шт.
