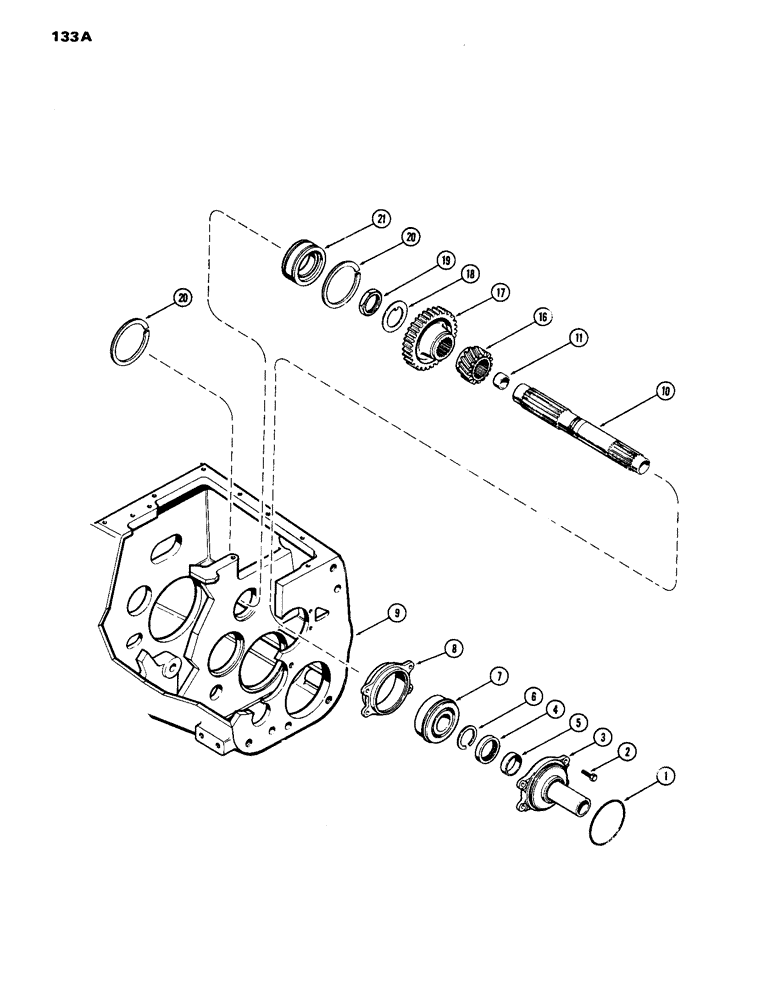

Запчасти Case IH 1070 (133A) - RANGE SHAFT AND GEARS, MECHANICAL SHIFT (06) - POWER TRAIN

1

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

4-1/4 x 4-1/2 x 1/8"

1шт.

2

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3/8 x 1-1/2" N.C. hex.

4шт.

3

A57698

CARRIER

ASSY. range drive shaft bearing, Includes Ref. 4

1шт.

4

A60076

OIL SEAL

oil, helix lip type, range drive shaft

1шт.

5

A57697

SLEEVE

wear, range drive shaft oil seal

1шт.

6

A27085

RING

snap, retaining, range drive shaft front bearing

1шт.

7

39320

BALL BEARING,45mm ID x 106.38mm OD x 39.69mm W

ball, range drive shaft, front

1шт.

8

A32791

CARRIER

bearing, range drive shaft, front

1шт.

9

A58972

HOUSING transmission

1шт.

10

A61603

SHAFT

ASSY. range drive w/ bushing, Replaces A60026, Includes Ref. 11

1шт.

11

A28235

BUSHING

range drive shaft, 1-1/8 x 1-1/4 x 3/4"

1шт.

16

A34349

GEAR

drive, low-range, 18T

1шт.

17

A34350

GEAR

drive, high-range, 38T

1шт.

18

A32035

LOCK WASHER

seat, high range drive gear shaft nut

1шт.

19

A32034

NUT

lock, high range drive gear shaft

1шт.

20

A28153

RING

snap, retaining, range drive shaft, rear bearing

2шт.

21

A32751

BEARING ASSY,43.96mm ID x 72mm OD x 26.99mm W

BEARING roller, range drive shaft, rear

1шт.
