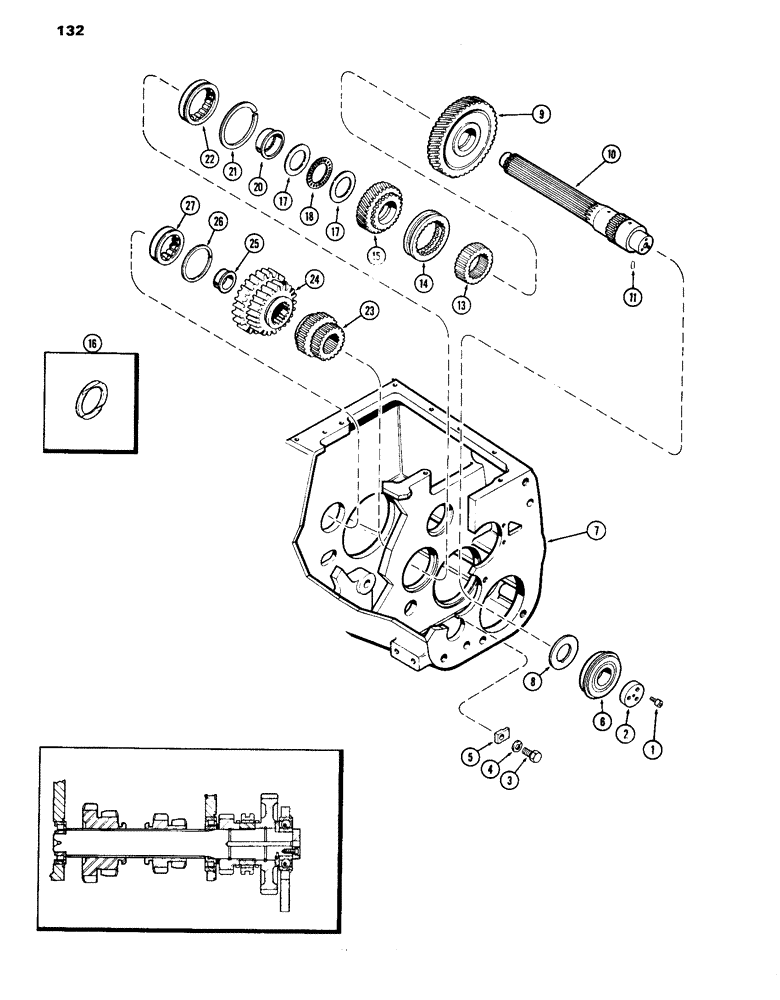

Запчасти Case IH 1070 (132) - SLIDING GEAR SHAFT, MECHANICAL SHIFT (06) - POWER TRAIN

1

165-118

HEX SOC SCREW,Prev Torque, 5/16" - 18 x 3/4"

BOLT, 5/16 x 3/4" N.C. hex. sckt. hd.

3шт.

2

A32019

PLATE

lock, sliding gear shaft front bearing

1шт.

3

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

4

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

5

A32788

CLAMP

retaining, sliding gear shaft front bearing plate

2шт.

6

A32018

BALL BEARING,44.99mm ID x 100mm OD x 25mm W

BEARING ball, sliding gear shaft, front

1шт.

7

A58972

HOUSING transmission

1шт.

8

A60040

WASHER

thrust, low range gear

1шт.

9

A61314

GEAR

driven, low range w/ bushing, 47 and 20 helical teeth, Replaces A34347

1шт.

10

A34905

SHAFT

sliding gear

1шт.

11

138-215

LOCK PIN,3/16" x 3/8", Slotted

Pin, , thrust washer 3/16" x 3/8", Slotted

1шт.

13

A32024

COLLAR

range clutch, 20 ext. and int. teeth

1шт.

14

A32025

SLEEVE

range clutch, 27 int. teeth, Order A62977

1шт.

15

A61317

GEAR

driven, high range, w/ bushing, 20 and 23 teeth, Replaces A34348

1шт.

16

A57970

WASHER

thrust, sliding gear shaft, Order (2) A32784 race and (1) A32785 bearing

1шт.

17

A32784

WASHER

RACE sliding gear shaft thrust bearing

2шт.

18

A32785

THRUST BEARING,2.125" ID x 2.875" OD x 0.0781"

BEARING thrust, sliding gear shaft

1шт.

20

A34772

BEARING, CONE,32T

RACE center roller bearing, inner

1шт.

21

A32005

RING

snap, retaining, center bearing, sliding gear shaft

1шт.

22

A32004

BEARING ASSY,55mm ID x 100mm OD x 21mm W

BEARING roller, sliding gear shaft, center

1шт.

23

A33564

GEAR

sliding cluster, 1st-2nd and 5th-6th, 15 and 19 teeth

1шт.

24

A58417

GEAR

sliding cluster, 3rd-4th and 7th-8th, 23 and 26 external and 32 internal teeth

1шт.

25

A33043

ROLLER BEARING,34.99mm ID x 20.87mm W

RACE rear roller bearing, inner

1шт.

26

A33041

RING, SNAP

RING snap, rear roller bearing

1шт.

27

A33042

BEARING ASSY

BEARING roller, sliding gear shaft, rear

1шт.
