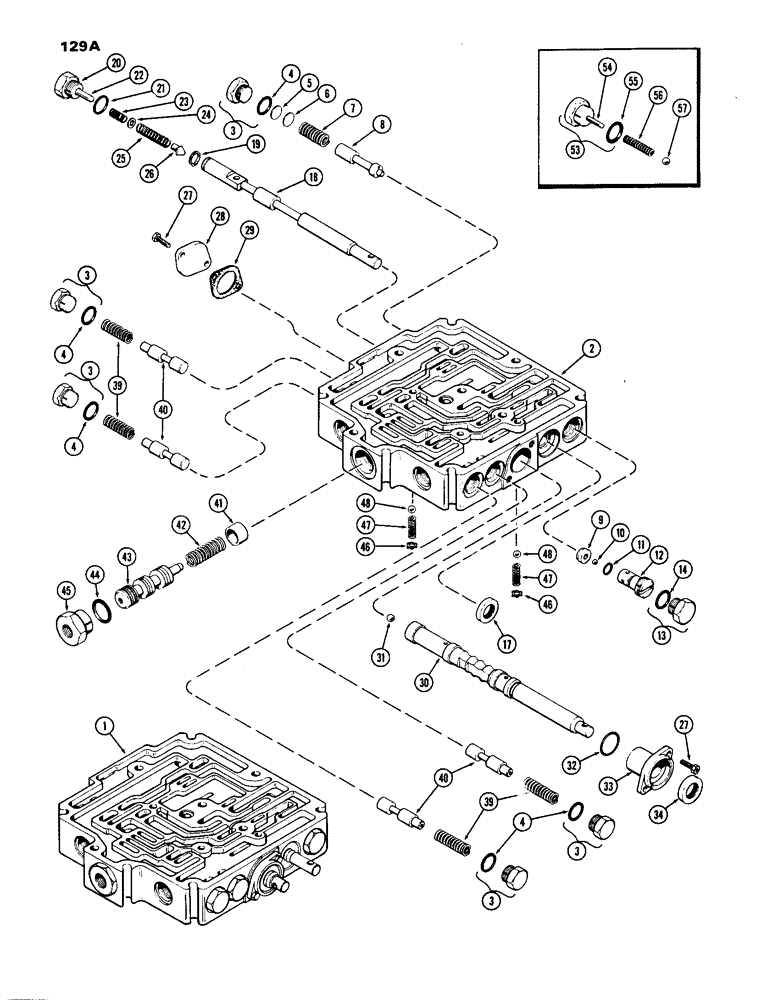

Запчасти Case IH 1070 (129A) - A61984 TRANSMISSION CONTROL VALVE, POWER SHIFT, USED PRIOR TO TRANS. SER. NO. 2366001 (06) - POWER TRAIN

1

A61984

VALVE

ASSY. trans. control, Order A66708, Includes Ref. 2 - 57

1шт.

2

NSS

NOT SOLD SEPARAT

BODY trans. control valve, Order A61984

1шт.

3

A62564

PLUG

ASSY. pressure regulator

5шт.

5

A37554

SHIM,.0269" Thk

Pressure adjustment (10 PSI) .0269" Thk

1шт.

6

A37555

SHIM,.0120" Thk

Pressure adjustment (5 PSI) .0120" Thk

1шт.

7

A58436

SPRING

compression, regulator, 1-3/8" free length

1шт.

8

A37551

PLUNGER

pressure regulator

1шт.

9

A58441

SEAT

ball, shuttle valve

1шт.

10

211-7

BALL,1/4" Dia

shuttle valve seat 1/4" Dia

1шт.

11

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

3/32 x 1/2 x 11/16"

1шт.

Part of trans. control valve seal kit P/N A42885

1шт.

12

A58440

SLEEVE

shuttle valve

1шт.

13

86512512

PLUG,7/8" - 14 ORB

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32"

1шт.

Part of trans. control valve seal kit P/N A42885

1шт.

17

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

clutch control spool

1шт.

Part of trans. control valve seal kit P/N A42885

1шт.

18

A60515

SPOOL clutch control

1шт.

19

G46176

SNAP RING,#56, Ext

Ring, Snap, , clutch control spool #56, Ext

1шт.

A42887

KIT

clutch modulator, not illustrated, Includes Ref. 20 - 26, 1st used trans. ser. no. 2237294

1шт.

1st used trans. serial No. 2237294

1шт.

20

A61985

PLUG

ASSY. modulator, Includes Ref. 21 and 22

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32"

1шт.

Part of trans. control valve seal kit P/N A42885

1шт.

22

NSS

NOT SOLD SEPARAT

PIN spring guide, Order A61985

1шт.

23

A61988

SPRING

secondary, clutch modulator, 49/64" free length, 17/64" dia.

1шт.

24

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

spring guide, 13/64 x 23/64 x 1/25"

1шт.

A60155

SPRING

POINT AND SPRING ASSY. clutch mod., not illustrated, Includes Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

SPRING primary, 1-39/64" free length, 5/16" dia.

1шт.

26

NSS

NOT SOLD SEPARAT

POINT modulator

1шт.

27

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

cap, 1/4 x 3/4" N.C. hex. socket hd.

4шт.

28

A58429

COVER

selector spool

1шт.

29

A58427

GASKET

selector spool cover

1шт.

Part of trans. control valve seal kit P/N A42885

1шт.

30

A60550

SPOOL

ASSY. selector, Includes Ref. 31

1шт.

31

NSS

NOT SOLD SEPARAT

BALL chrome steel, 9/32" dia., Order A60550

1шт.

32

A59066

O-RING,1.239" ID x 1.379" OD

spool sleeve, 1-1/4 x 1-3/8 x 1/16"

1шт.

Part of trans. control valve seal kit P/N A42885

1шт.

33

A62839

SLEEVE

selector spool, Replaces A58426

1шт.

34

50421

SEAL oil, selector spool

1шт.

Part of trans. control valve seal kit P/N A42885

1шт.

39

A58271

SPRING

spool return, 1-49/64" free length

4шт.

40

A59063

SPOOL

pilot

4шт.

41

A61033

SLEEVE

reverse lock-out spool

1шт.

42

A58432

SPRING

compression, reverse lock-out spool

1шт.

43

A61032

SPOOL

reverse lock-out

1шт.

44

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

spool bushing, 3/4 x 59/64 x 1/8"

1шт.

Part of trans. control valve seal kit P/N A42885

1шт.

45

A58434

BUSHING boss reducer, reverse lock-out spool

1шт.

46

A58439

RETAINER

retard check spring

2шт.

47

A58438

SPRING

retard check, 15/16" free length

2шт.

48

211-8

BALL,9/32" Dia

- pilot release retard check 9/32" Dia

2шт.

A42885

SEAL KIT

seal, trans. control valve, Includes Ref. 4, 11, 14, 17, 21, 29, 32, 34 and 44

1шт.

53

A60516

PLUG ASSY. modulator, Includes Ref. 54 and 55, used prior to trans. ser. no. 2237294

1шт.

Used prior to trans. serial No. 2237294

1шт.

54

A60519

PIN spring guide

1шт.

55

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32"

1шт.

56

A60517

SPRING clutch modulator, 1-43/64" free length, used prior to trans. ser. no. 2237294

1шт.

Used prior to trans. serial No. 2237294

1шт.

57

211-8

BALL,9/32" Dia

steel, grade 3, used prior to trans. S/N 2237294 9/32" Dia

1шт.

Used prior to trans. serial No. 2237294

1шт.

4

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 21/32 x 3/32"

1шт.

Part of trans. control valve seal kit P/N A42885

1шт.
