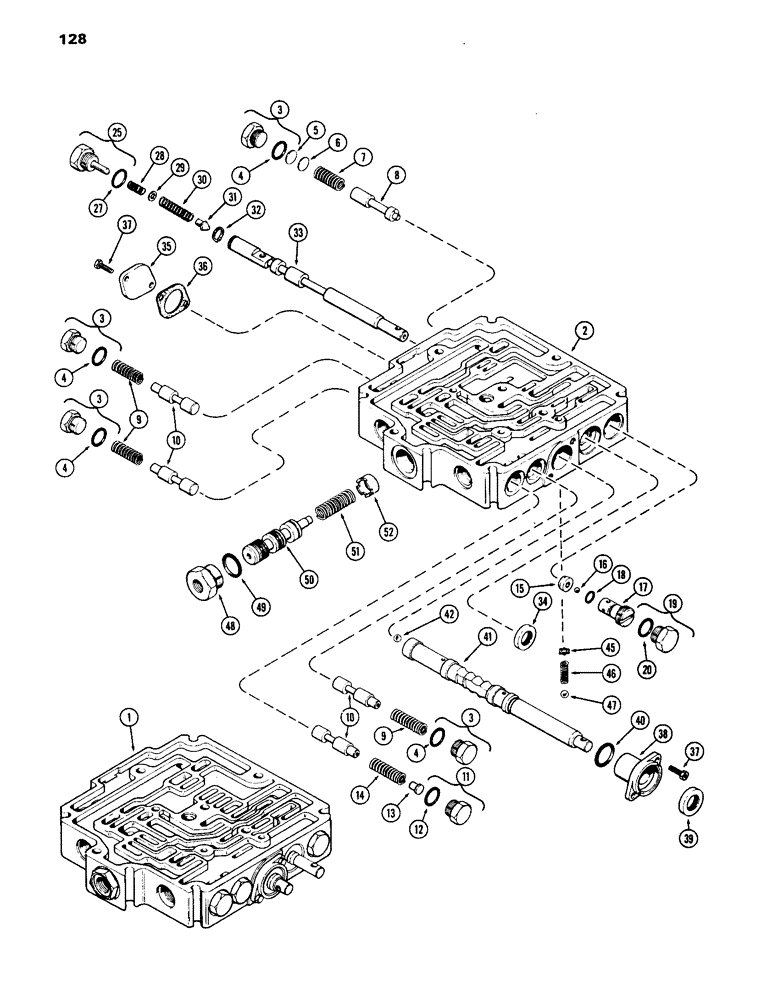

Запчасти Case IH 1070 (128) - A62634 TRANSMISSION CONTROL VALVE, POWER SHIFT, 1ST USED TRANS. SER NO. 2366001 (06) - POWER TRAIN

1

A66708

VALVE

ASSY. transmission control, Replaces A62634, Includes Ref. 2 - 52

1шт.

2

NSS

NOT SOLD SEPARAT

BODY value, Order A66708

1шт.

3

A62564

PLUG

pressure regulator

4шт.

4

216-5006

O-RING, 1/2 x 21/32 x 3/32"

4шт.

5

A37554

SHIM,.0269" Thk

Pressure regulating (10 PSI) .0269" Thk

1шт.

6

A37555

SHIM,.0120" Thk

Pressure regulating (5 PSI) .0120" Thk

1шт.

7

A58436

SPRING

compression, regulator, 1-3/8" free length

1шт.

8

A37551

PLUNGER

pressure regulator

1шт.

9

A58271

SPRING

spool return, 1-49/64" free length

3шт.

10

A59063

SPOOL

pilot

4шт.

11

A62641

PLUG

pilot spool bore

1шт.

13

A62640

STOP

pilot spool, C4

1шт.

14

A66692

SPRING

pilot spool return, 1-3/4" free length, Replaces A62639

1шт.

15

A58441

SEAT

ball, shuttle valve

1шт.

16

211-7

BALL,1/4" Dia

shuttle valve ball seat 1/4" Dia

1шт.

17

A58440

SLEEVE

shuttle valve

1шт.

18

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

3/32 x 1/2 x 11/16"

1шт.

19

86512512

PLUG,7/8" - 14 ORB

Shuttle valve bore, Incl. Ref. 20 Hex Hd, 7/8"-14 ORB

1шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32"

1шт.

A42887

KIT

clutch modulator, Includes Ref. 25 - 31

1шт.

25

A61985

PLUG

ASSY. modulator, Includes Ref. 27

1шт.

27

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32"

1шт.

28

A61988

SPRING

clutch modulator, 49/64" free length

1шт.

29

A61989

WASHER,4.95mm ID x 9.27mm OD x 1.02mm Thk

spring guide

1шт.

A60155

SPRING

POINTER AND SPRING ASSY. clutch modulator, Includes Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

SPRING modulator, 1-39/64" free length

1шт.

31

NSS

NOT SOLD SEPARAT

POINT modulator

1шт.

32

G46176

SNAP RING,#56, Ext

Ring, Snap, , clutch control spool #56, Ext

1шт.

33

A62636

SPOOL

clutch control

1шт.

34

A37558

SEAL,14.27mm ID x 28.7mm OD x 6.73mm Thk

clutch control spool

1шт.

35

A58429

COVER

selector spool

1шт.

36

A66110

GASKET

selector spool cover, Replaces A58427

1шт.

37

61-412

HEX SOC SCREW,1/4"-20 x 3/4"

1/4 x 3/4" N.C. hex. sckt. hd. cap

4шт.

38

A62839

SLEEVE

selector spool, Replaces A58426

1шт.

39

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

oil, selector spool

1шт.

40

A59066

O-RING,1.239" ID x 1.379" OD

1-1/4 x 1-3/4" x 1/16"

1шт.

41

A60550

SPOOL

ASSY. selector, Includes Ref. 42

1шт.

42

NSS

NOT SOLD SEPARAT

BALL, 9/32" dia. chrome steel, Order A60550

1шт.

45

A58439

RETAINER

retard check spring

2шт.

46

A58438

SPRING

retard check, 15/16" free length

2шт.

47

211-8

BALL,9/32" Dia

- pilot release retard check 9/32" Dia

2шт.

48

A58434

BUSHING reducer, reverse lock-out spool

1шт.

49

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 x 59/64 x 1/8"

1шт.

50

A61032

SPOOL

reverse lock-out

1шт.

51

A58432

SPRING

reverse lock-out spool

1шт.

52

A61033

SLEEVE

KIT seal, Includes Ref. 4, 18, 20, 27, 32, 34, 37, 38 and 49

1шт.

A42885

SEAL KIT

seal, Includes Ref. 4, 18, 20, 27, 32, 34, 37, 38 and 49

1шт.

A42887

KIT

clutch modulator, Includes Ref. 25, 28, 29 and 31

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 21/32 x 3/32"

1шт.
