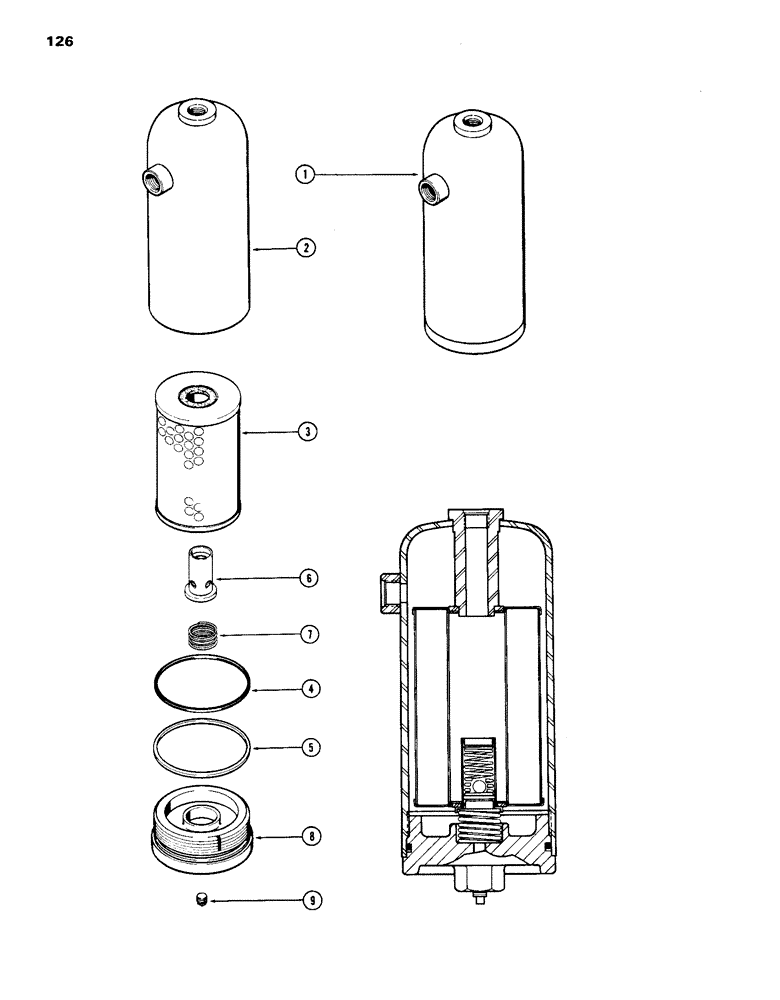

Запчасти Case IH 1070 (126) - A60766 HYDRAULIC OIL FILTER, POWER SHIFT (06) - POWER TRAIN

1

A60766

SPROCKET

FILTER ASSY. hydraulic oil, 10 micron, white wrapper, Includes Ref. 2 - 9

1шт.

2

A60767

BODY

oil filter, Order G100002

1шт.

A65854

HYDRAULIC OIL FILTER

KIT oil filter element, not illustrated, Replaces A61235, Includes Ref. 3, 4 and 5

1шт.

3

NSS

NOT SOLD SEPARAT

ELEMENT oil filter, 10 micron, white color code, Order A65854

1шт.

4

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

sealing, oil filter body to cap, 4 x 4-1/4 x 1/8"

1шт.

5

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Leather, Oil filter, Serial Range: body-cap

1шт.

6

D37207

VALVE

relief, oil filter

1шт.

7

D31212

SPRING

retaining, oil filter

1шт.

8

A60765

CAP

end, oil filter

1шт.

9

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG pipe, 1/8" square head

1шт.
