Запчасти Case IH 9390 (6-024) - POWER SHIFT TRANSMISSION ASSEMBLY, 9 INCH CLUTCH PACK ASSEMBLY (06) - POWER TRAIN

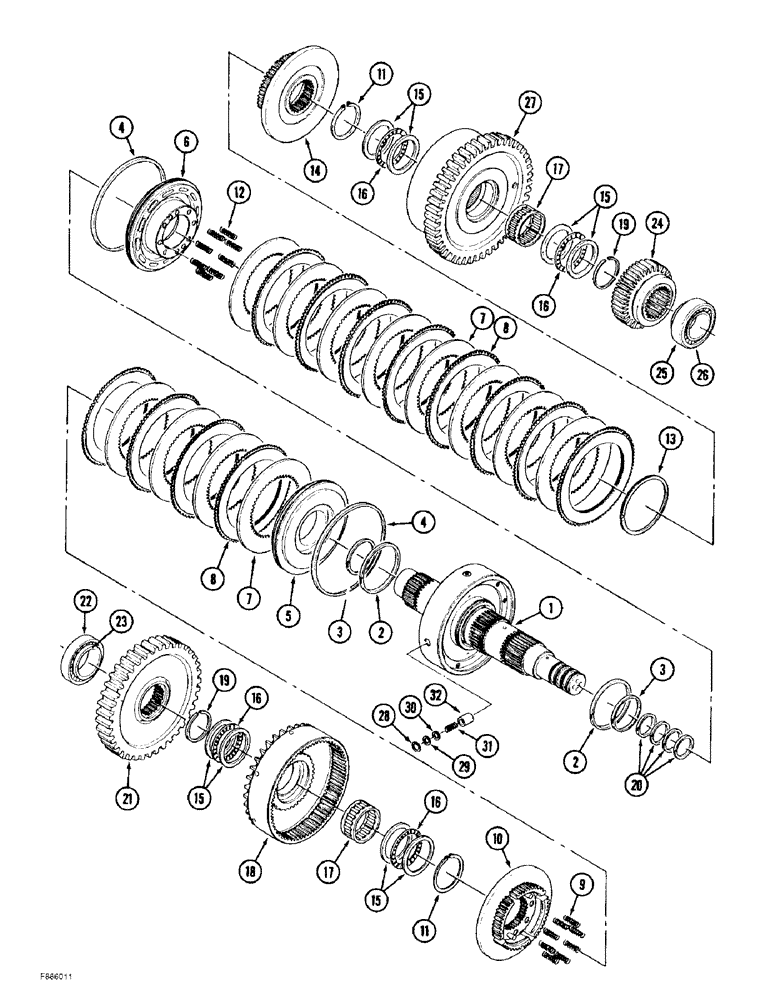

Схема запчастей Case IH 9390 - (6-024) - POWER SHIFT TRANSMISSION ASSEMBLY, 9 INCH CLUTCH PACK ASSEMBLY (06) - POWER TRAIN
15
30
4
3
16
22
14
16
11
9
31
15
17
32
8
15
27
23
10
15
7
11
25
8
6
20
12
21
2
18
19
7
26
19
28
2
29
16
16
17
5
3
4
13
1
24

Артикул

Название

Примечание

Количество

90-8454T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY - Powershift, replaces 90-7016T91 transmission, parts list Figures 6-006 - 6-032, Includes: Ref. 1 - 32

1шт.

S5000S00F

CLUTCH HOUSING

PACK ASSEMBLY - clutch, 9 inch, Includes: Ref. 1 - 32

1шт.

1

S5900S00F

SHAFT ASSY.

SHAFT - drum

1шт.

2

S5520S00F

RING

- piston

2шт.

Part of transmission rebuild gasket kit P/N 33-1559T2.

1шт.

3

S5510S00F

RING

- piston

2шт.

Part of transmission rebuild gasket kit P/N 33-1559T2.

1шт.

4

S4430S00F

RING

- sealing

2шт.

Part of transmission rebuild gasket kit P/N 33-1559T2.

1шт.

5

33-1523T1

PISTON

- clutch

1шт.

6

33-1522T1

RACE

PISTON - clutch

1шт.

7

S5120S00F

CLUTCH DISC

PLATE - steel, 2.6 mm thick

1шт.

Steel plates, Ref. 7; a total set of 12 pieces must be used.

1шт.

7

S5130S00F

CLUTCH DISC

PLATE - steel, 2.4 mm thick

1шт.

Steel plates, Ref. 7; a total set of 12 pieces must be used.

1шт.

8

33-1520T2

NOTCHED DISK

PLATE - faced

12шт.

9

S5550S00F

SPRING

- return, piston

8шт.

10

S5850S01G

HUB

- clutch

1шт.

11

S5100S00F

RING, SNAP

RING - snap

2шт.

12

S5540S00F

SPRING

- return, piston

8шт.

13

S5490S00F

RING

- retaining

1шт.

14

S5840S01G

HUB

- clutch

1шт.

15

S5230S00F

BEARING WASHER

WASHER - thrust

8шт.

16

A75158

THRUST BEARING,76.25mm ID x 95mm OD x 1.98mm W

BEARING - thrust, replaces S5050S00F bearing

4шт.

17

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

BEARING - needle

2шт.

18

S5080S01F

PINION

GEAR - clutch, 37 teeth

1шт.

19

S5040S00F

RING

- retaining

2шт.

20

S3070S00F

RING

- sealing

4шт.

Part of transmission rebuild gasket kit P/N 33-1559T2.

1шт.

21

S5060S01F

PINION

GEAR - input, 43 teeth

1шт.

22

54404R1

BEARING ASSY,2.25" ID x 112.712 mm OD x 23.812 mm

CUP - tapered roller bearing

1шт.

23

ST2016A

BEARING

- tapered roller

1шт.

24

S5270S00F

PINION

GEAR - drive, 21 teeth

1шт.

25

90-6579T1

BEARING CUP

CUP - tapered roller bearing

1шт.

26

ST2018A

BEARING ASSY,66.67mm ID x 30.24mm W

CONE - tapered roller bearing

1шт.

27

S5280S01F

GEAR

- clutch, 46 teeth

1шт.

28

SM9222160

RING, SNAP

RING - snap

2шт.

29

S3220S00F

SHIM

- drain valve, 0.7 mm thick

1шт.

30

S3230S00F

SHIM

- drain valve, 0.2 mm thick

1шт.

31

S3210S00F

SPRING

- valve

2шт.

32

S3200S00F

DRAIN VALVE

VALVE - drain

2шт.

33-1559T2

GASKET

KIT - gasket, transmission rebuild, Includes: Ref. 2, 3, 4 and 20 and parts on Figures 6-006 - 6-028

1шт.
