Артикул
Название
Примечание
Количество

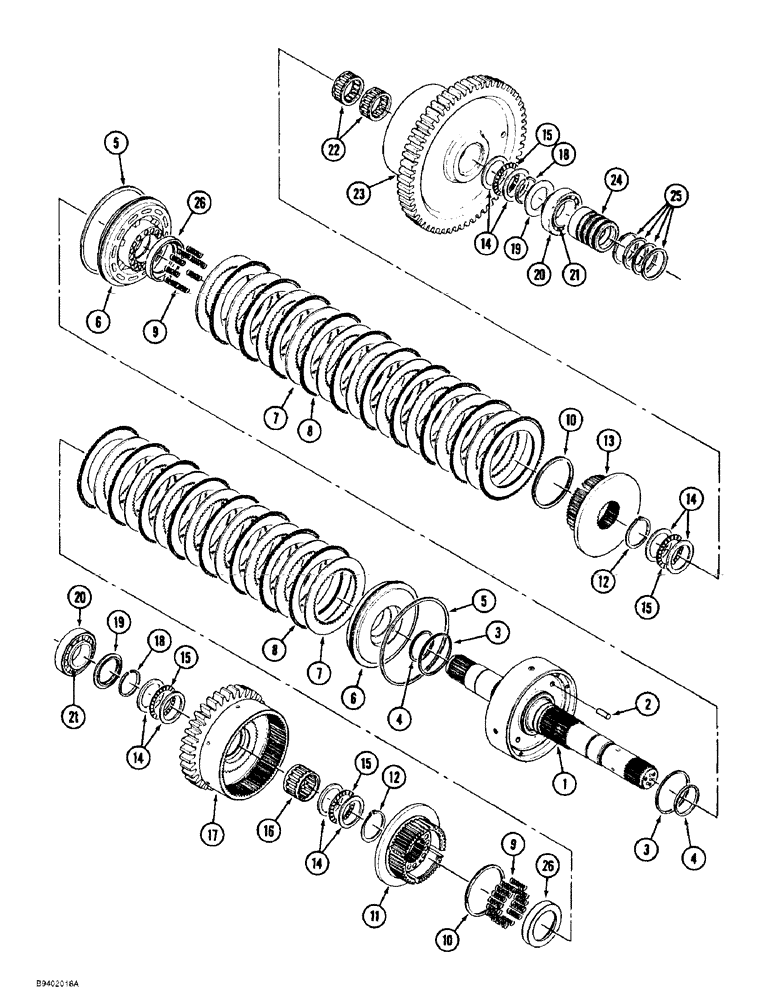

90-8454T91
GEARBOX ASSY
TRANSMISSION ASSEMBLY - Powershift, replaces 90-7016T91 transmission parts list Figures 6-006 - 6-032, Includes: Ref. 1 - 26
1шт.
S4000S02F
CLUTCH HOUSING
PACK ASSEMBLY - clutch, 8 inch, Includes: Ref. 1 - 26
1шт.
1
S4900S02F
SHAFT ASSY.
SHAFT ASSEMBLY - drum, Includes: Ref. 2
1шт.
2
S4680S02F
SPECIAL NUT
PIN - guide, 11 mm diameter
4шт.
3
S4420S00F
RING
- piston
2шт.
Part of transmission rebuild gasket kit P/N 33-1559T2.
1шт.
4
S4410S00F
RING
- piston
2шт.
Part of transmission rebuild gasket kit P/N 33-1559T2.
1шт.
5
S4430S00F
RING
- sealing
2шт.
Part of transmission rebuild gasket kit P/N 33-1559T2.
1шт.
6
S4180S02F
PISTON
- clutch
2шт.
7
S4070S00F
CLUTCH DISC,2.4mm Thk
PLATE - steel, 2.4 mm thick
1шт.
Steel plates, Ref. 7; a total of 18 pieces must be used.
1шт.
7
S4110S00F
CLUTCH DISC,2.1mm Thk
PLATE - steel, 2.1 mm thick
1шт.
Steel plates, Ref. 7; a total of 18 pieces must be used.
1шт.
8
33-1519T2
NOTCHED DISK
PLATE - faced
18шт.
9
S4440S00F
SPRING
- return, piston
22шт.
10
S4390S00F
RING, SNAP
RING - retaining
2шт.
11
S4100S01G
HUB
- clutch
1шт.
12
S2100S00F
RING, SNAP
RING - snap
2шт.
13
S4380S01G
HUB
- clutch
1шт.
14
H144527
WASHER,63.55mm ID x 82.3mm OD x 3.2mm Thk
- thrust, bearing, 3.2 mm, replaces S2200S00F washer
8шт.
15
THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W
BEARING - needle, thrust, replaces S2230S00F bearing
4шт.
16
S2210S00F
BEARING, ROLLER
BEARING - roller
1шт.
17
S4210S00F
PINION
GEAR - output, 38 teeth
1шт.
18
S2240S00F
RING, SNAP
RING - retaining
2шт.
19
S4040S00F
SPACER
- bearing
2шт.
20
54404R1
BEARING ASSY,2.25" ID x 112.712 mm OD x 23.812 mm
CUP - tapered roller bearing
2шт.
21
ST2016A
BEARING
- tapered roller
2шт.
22
S2030S00F
BEARING, ROLLER
BEARING - roller
2шт.
23
S4170S00F
PINION
GEAR - output, 59 teeth
1шт.
24
S4160S00F
SLEEVE
CARRIER - piston ring
1шт.
25
S4150S00F
RING
- sealing
4шт.
Part of transmission rebuild gasket kit P/N 33-1559T2.
1шт.
26
S4530S02F
LARGE PLATE
PLATE - retaining, spring
2шт.
33-1559T2
GASKET
KIT - gasket, transmission rebuild, Includes: Ref. 3, 4, 5 and 25 and parts on Figures 6-006 - 6-028
1шт.
