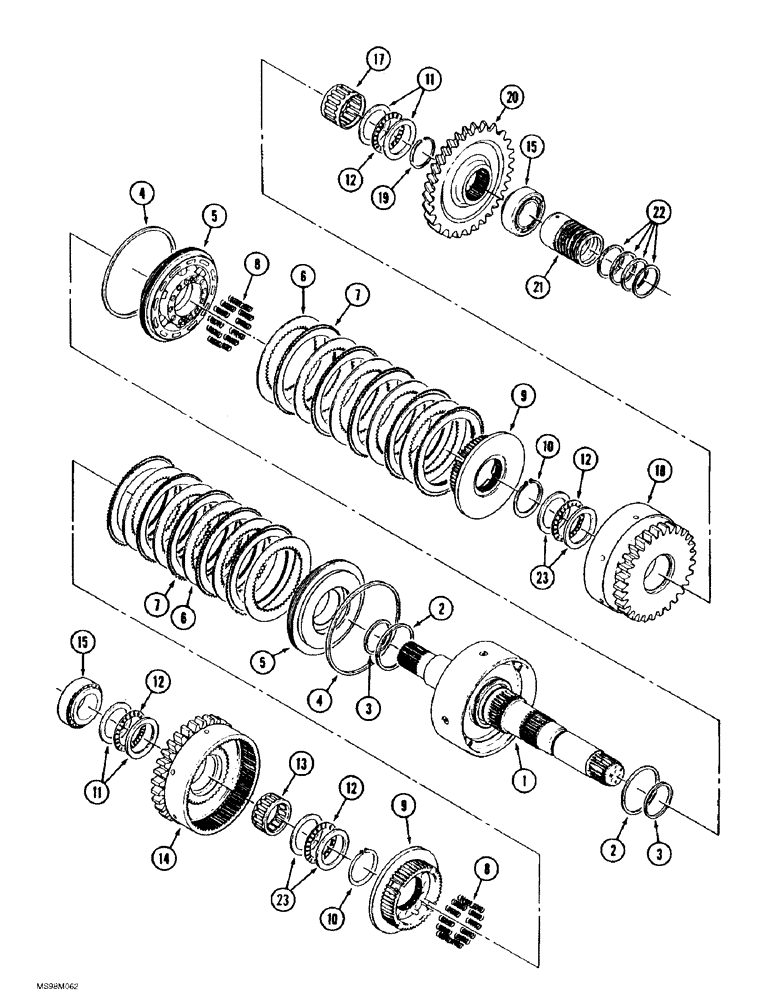

Запчасти Case IH 9390 (6-018) - POWER SHIFT TRANSMISSION ASSEMBLY, 7 INCH INPUT CLUTCH PACK ASSEMBLY (06) - POWER TRAIN

90-8454T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY - Powershift, replaces 90-7016T91 transmission, parts list Figures 6-006 - 6-032, Includes: Ref. 1 - 23

1шт.

S2000S02F

CLUTCH & DISC ASSY

PACK ASSEMBLY - clutch, input, replaces S2000S01A pack, Includes: Ref. 1 - 23

1шт.

1

S2900S01F

SHAFT ASSY.

SHAFT - drum, also order (4) Ref. 23 S2220S00F washers

1шт.

2

S2620S00F

RING

- piston

2шт.

Part of transmission rebuild gasket kit P/N 33-1559T2.

1шт.

3

S2610S00F

RING

- piston

2шт.

4

S2630S00F

RING

- sealing

2шт.

Part of transmission rebuild gasket kit P/N 33-1559T2.

1шт.

5

33-1521T1

PISTON

- clutch

2шт.

6

S2080S00F

CLUTCH DISC,2.4mm Thk

PLATE - steel, 2.4 mm thick

1шт.

Steel plates, Ref. 6; a total of 10 pieces must be used.

1шт.

6

S2090S00F

CLUTCH DISC,2.1mm Thk

PLATE - steel, 2.1 mm thick

1шт.

Steel plates, Ref. 6; a total of 10 pieces must be used.

1шт.

7

33-1518T2

NOTCHED DISK

PLATE - friction

10шт.

8

S2640S00F

SPRING

- return, piston

24шт.

9

S2850S00F

HUB

- clutch

2шт.

10

S2100S00F

RING, SNAP

RING - snap

2шт.

11

H144527

WASHER,63.55mm ID x 82.3mm OD x 3.2mm Thk

- thrust, bearing, 3.2 mm, replaces S2200S00F washer

4шт.

12

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING - needle, thrust, replaces S2230S00F bearing

4шт.

13

S2030S00F

BEARING, ROLLER

BEARING - roller

1шт.

14

S2040S01F

PINION

GEAR - drive, 32 teeth, replaces S2040S00F gear

1шт.

15

90-8459T1

ROLLER BEARING

CONE - tapered roller bearing, replaces 529208R1 gear and 529207R91 cone

2шт.

17

80909C1

BEARING ASSY,Needle, 63.49mm ID x 73.05mm OD x 38.1mm W

BEARING - needle, caged

1шт.

18

S2280S00F

PINION

GEAR - drive, 29 teeth

1шт.

19

S2240S00F

RING, SNAP

RING - retaining

1шт.

20

S2270S02F

PINION

GEAR - input, replaces S2270S01F gear

1шт.

21

S2410S00F

CARRIER FLANGE SEAL

CARRIER - piston ring

1шт.

22

S2250S00F

SEALING RING

RING - sealing

4шт.

Part of transmission rebuild gasket kit P/N 33-1559T2.

1шт.

23

S2220S00F

THRUST WASHER

WASHER - thrust, bearing, 2.4 mm

4шт.

33-1559T2

GASKET

KIT - gasket, transmission rebuild, Includes: Ref. 2, 4 & 22 and additional parts on Figures 6-006 - 6-028

1шт.
