Запчасти Case IH 9390 (6-012) - POWER SHIFT TRANSMISSION ASSEMBLY, FRONT COVERS AND YOKES (CONTD) (06) - POWER TRAIN

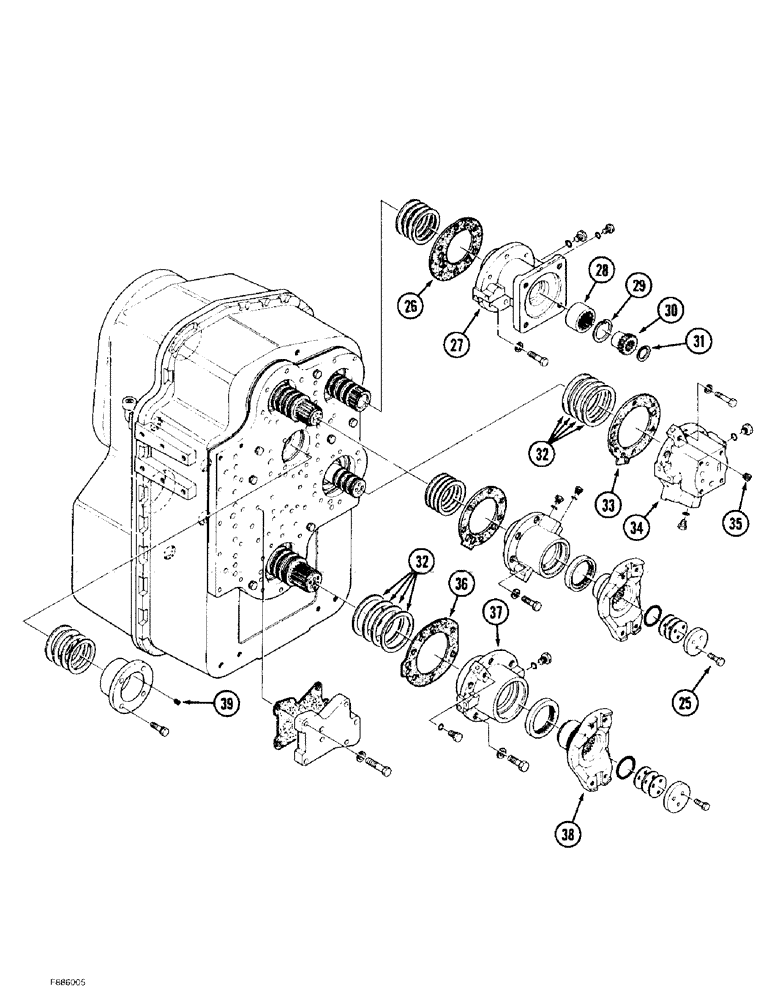

Схема запчастей Case IH 9390 - (6-012) - POWER SHIFT TRANSMISSION ASSEMBLY, FRONT COVERS AND YOKES (CONTD) (06) - POWER TRAIN
26
27
31
29
39
32
38
25
33
35
36
37
32
30
34
28

Артикул

Название

Примечание

Количество

90-8454T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY - Powershift, replaces 90-7016T91 transmission, parts list Figures 6-006 - 6-032, Includes: Ref. 25 - 39 and 1 - 24 on Figure 6-010

1шт.

25

SM8174035

BOLT

BOLT - hex, special, 10 - 1.25 x 35 mm, class 10.9

3шт.

26

33-1468T2

GASKET

- pump support

1шт.

Part of short gasket kit P/N 90-8402T91.

1шт.

27

33-1514T1

HOLDER

SUPPORT - oil pump

1шт.

28

33-1444T1

COUPLING

- pump adapter

1шт.

29

33-1445T1

RING, SNAP

RING - snap

1шт.

30

33-1515T1

ADAPTER

- pump drive

1шт.

31

33-1517T1

RING, SNAP

RING - snap

1шт.

32

33-1460T1

SHIM

- bearing, 0.1 mm thick

1шт.

32

33-1461T1

SHIM

- bearing, 0.3 mm thick

1шт.

32

33-1462T1

SHIM

- bearing, 0.5 mm thick

1шт.

32

33-1463T1

SHIM

- bearing, 0.7 mm thick

1шт.

32

33-1475T1

SHIM

- bearing, 0.15 mm thick

1шт.

33

33-1433T2

GASKET

- clutch collector

1шт.

Part of short gasket kit P/N 90-8402T91.

1шт.

34

33-1438T1

CLUTCH

COLLECTOR - clutch

1шт.

35

STX99700F

PLUG

- oil

1шт.

36

33-1426T2

GASKET

- bearing retainer

1шт.

Part of short gasket kit P/N 90-8402T91.

1шт.

37

33-1427T1

BEARING CARRIER

RETAINER - bearing

1шт.

38

33-1429T1

YOKE

- output, front

1шт.

39

33-1439T1

PLUG

- orifice

2шт.

33-1559T2

GASKET

KIT - gasket, transmission rebuild, Includes: parts on Figures 6-006 - 6-028

1шт.

90-8402T91

GASKET KIT

KIT - gasket, short, Includes: Ref. 26, 33 and 36 and parts on Figures 6-006 - 6-012

1шт.
