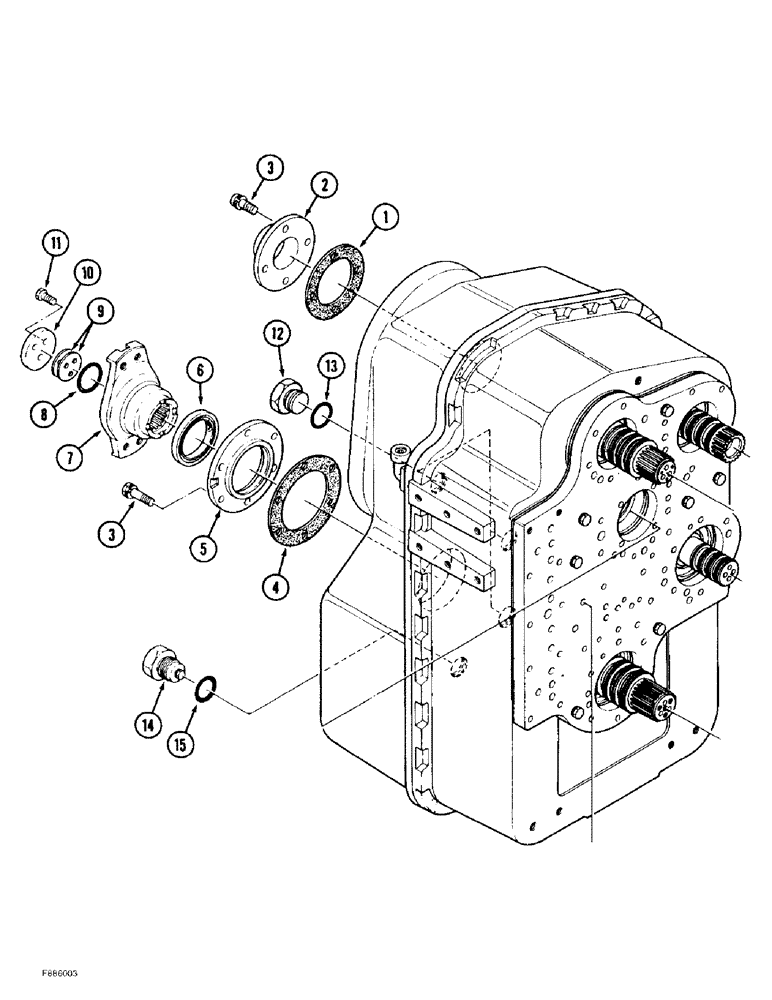

Запчасти Case IH 9390 (6-008) - POWER SHIFT TRANSMISSION ASSEMBLY, REAR COVERS AND YOKE (06) - POWER TRAIN

90-8454T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY - Powershift, replaces 90-7016T91 transmission, parts list Figures 6-006 - 6-032, Includes: Ref. 1 - 15

1шт.

1

33-1470T2

GASKET

- PTO shaft cover

1шт.

Part of short gasket kit P/N 90-8402T91.

1шт.

2

33-1442T1

COVER

- PTO shaft, without PTO

1шт.

3

SM8124230

BOLT

BOLT - hex, 12 - 1.25 x 30 mm

10шт.

4

33-1417T2

GASKET

- bearing retainer

1шт.

Part of short gasket kit P/N 90-8402T91.

1шт.

5

33-1418T1

RETAINER

- bearing

1шт.

6

33-1428T1

OIL SEAL

SEAL - output shaft

1шт.

Part of transmission rebuild gasket kit P/N 33-1559T2.

1шт.

7

33-1420T1

YOKE

- output, rear

1шт.

8

33-1422T1

O-RING

O-RING - yoke sealing

1шт.

Part of transmission rebuild gasket kit P/N 33-1559T2.

1шт.

9

33-1450T1

SHIM

- 0.10 mm thick

1шт.

9

33-1451T1

SHIM

- 0.30 mm thick

1шт.

10

33-1432T1

WASHER

PLATE - retainer, yoke

1шт.

11

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

12

S1010S00F

PLUG, DRAIN

PLUG - O-ring boss, Includes: Ref. 13

3шт.

13

S1080S00F

O-RING

- plug

1шт.

14

S1090S00F

PLUG

- magnetic, Includes: Ref. 15

1шт.

15

S1080S00F

O-RING

- plug

1шт.

33-1559T2

GASKET

KIT - gasket, transmission rebuild, Includes: Ref. 6 and 8 in this Figure and parts on Figures 6-006 - 6-028

1шт.

90-8402T91

GASKET KIT

KIT - gasket, short, Includes: Ref. 1 and 4 in this Figure and parts on Figures 6-006 - 6-012

1шт.
