Запчасти Case IH 9390 (5-18) - STEERING CYLINDER MOUNTING (05) - STEERING

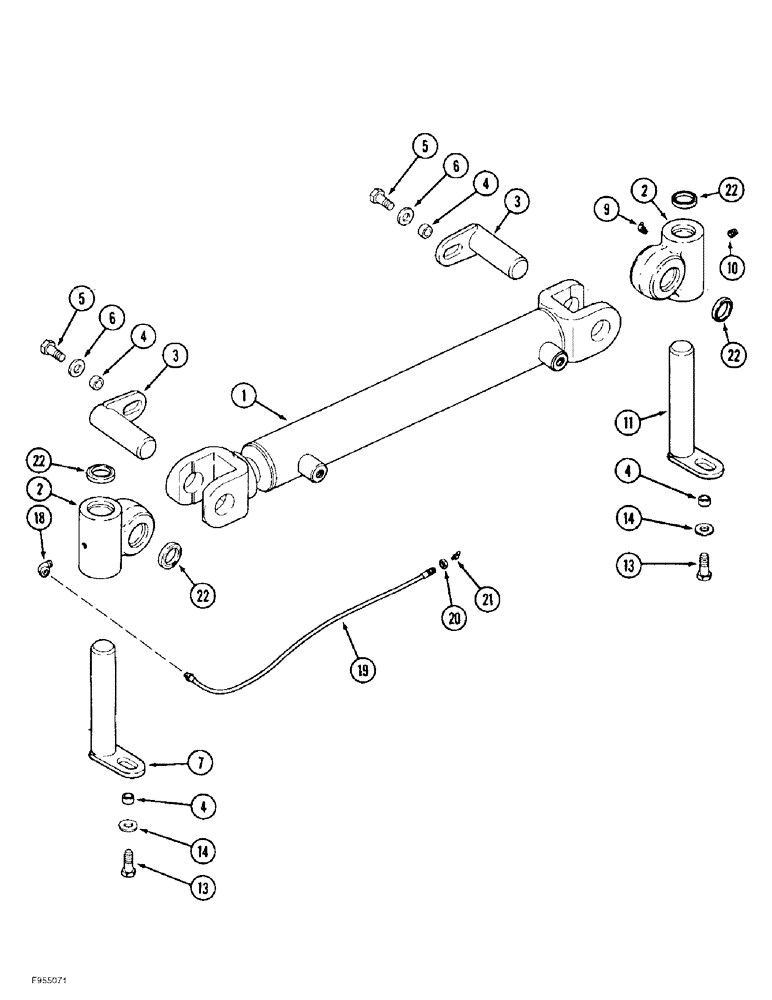

Схема запчастей Case IH 9390 - (5-18) - STEERING CYLINDER MOUNTING (05) - STEERING
18
11
3
6
9
4
7
5
19
22
13
20
1
5
4
14
4
10
21
14
3
22
6
2
4
22
13
22
2

Артикул

Название

Примечание

Количество

1

50-3368T93

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering, parts list Figure 5-16

2шт.

2

50-3360T3

JOINT

KNUCKLE - pivot

4шт.

When replacing Ref. 2, 50-3360T3 knuckle, also order four D95143 wipers, Ref. 22, per knuckle.

1шт.

3

70-6013T2

PIN

- pivot, knuckle

4шт.

4

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin

8шт.

5

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

4шт.

6

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

4шт.

7

70-6076T2

PIN

- pivot, cylinder, rear

2шт.

9

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

2шт.

10

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket headless, 1/8 inch PT

4шт.

11

70-6085T2

PIN

- pivot

2шт.

13

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

4шт.

14

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

4шт.

18

217-1014

ELBOW,1/8" - 27 Female x 1/8" - 27 Male

Street 90º, 1/8"-27 Female x 1/8"-27 Male

2шт.

19

1339090C1

HOSE

- grease, 838 mm (33 inch) long

2шт.

20

F53473

LOCK NUT,1/8-27 NPSM

- special, hose

2шт.

21

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 special threads x 1/2"

2шт.

22

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - dust

16шт.

When replacing Ref. 2, 50-3360T3 knuckle, also order four D95143 wipers, Ref. 22, per knuckle.

1шт.
