Запчасти Case IH 9390 (5-12) - STEERING SYSTEM HYDRAULICS, 9390 ONLY (05) - STEERING

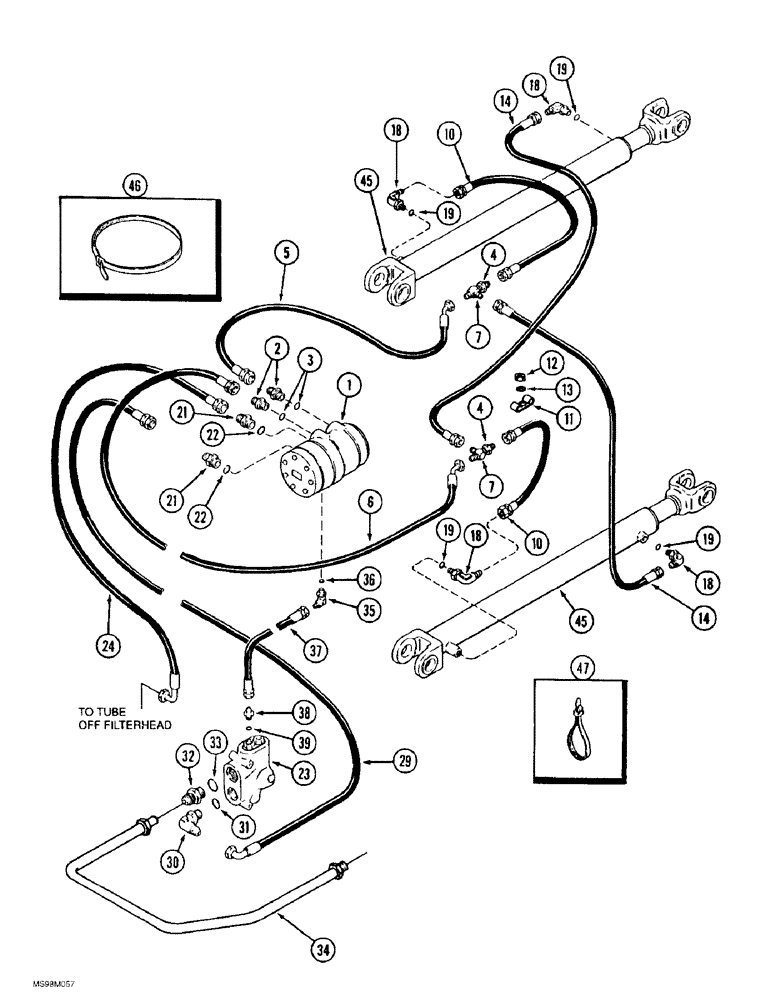

Схема запчастей Case IH 9390 - (5-12) - STEERING SYSTEM HYDRAULICS, 9390 ONLY (05) - STEERING
24
21
39
2
14
38
18
34
4
5
19
19
32
14
18
19
23
4
11
6
19
7
21
45
33
31
22
3
36
18
22
10
10
7
46
29
1
45
35
18
47
37
13
12
30

Артикул

Название

Примечание

Количество

1

50-3553T91

VALVE

ASSEMBLY - control, steering, parts list Figure 5-14

1шт.

2

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 3

3шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

5

31-2958

HOSE

- 2337 mm (92 inch) long, to left cylinder tee

1шт.

6

31-2959

HOSE,15.88mm ID x 2743mm L

- 2743 mm (108 inch) long, to cylinder right tee

1шт.

7

218-1236

TEE,3/4"-16, 37 Degree, Blkhd

- 3/4-16 inch flare branch x flare x bulkhead flare

2шт.

10

32-150

HOSE

- 673 mm (26-1/2 inch), Serial Range: long,-tee

2шт.

11

242563A1

CLAMP

- hose

1шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

14

31-2961

HOSE

- 1600 mm (63 inch), Serial Range: long,-tee

2шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 19

4шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 22

2шт.

22

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

23

50-3155T91

VALVE

ASSEMBLY - priority, parts list Figure 8-38

1шт.

24

31-3026

HOSE

- 864 mm (34 inch) long, to filter tube

1шт.

29

31-1041

HOSE,19.05mm ID x 838mm L

- 838 mm (33 inch) long, to priority valve

1шт.

30

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 31

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

32

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 33

1шт.

33

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

34

50-3612T2

HYD TUBE

TUBE - valve to priority valve

1шт.

35

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 36

1шт.

36

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

37

31-2814

HOSE

- 711 mm (28 inch) long, control valve

1шт.

38

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 flare x O-ring boss, Incl. Ref. 39

1шт.

39

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

45

50-3368T93

CYLINDER ASSY.

CYLINDER ASSEMBLY - steering, parts list Figure 5-16

2шт.

46

50-2037T1

STRAP

- tie, hose retainer

1шт.

47

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

48

D147773

CLAMP

STRAP - tie, hose retaining, not shown

2шт.
