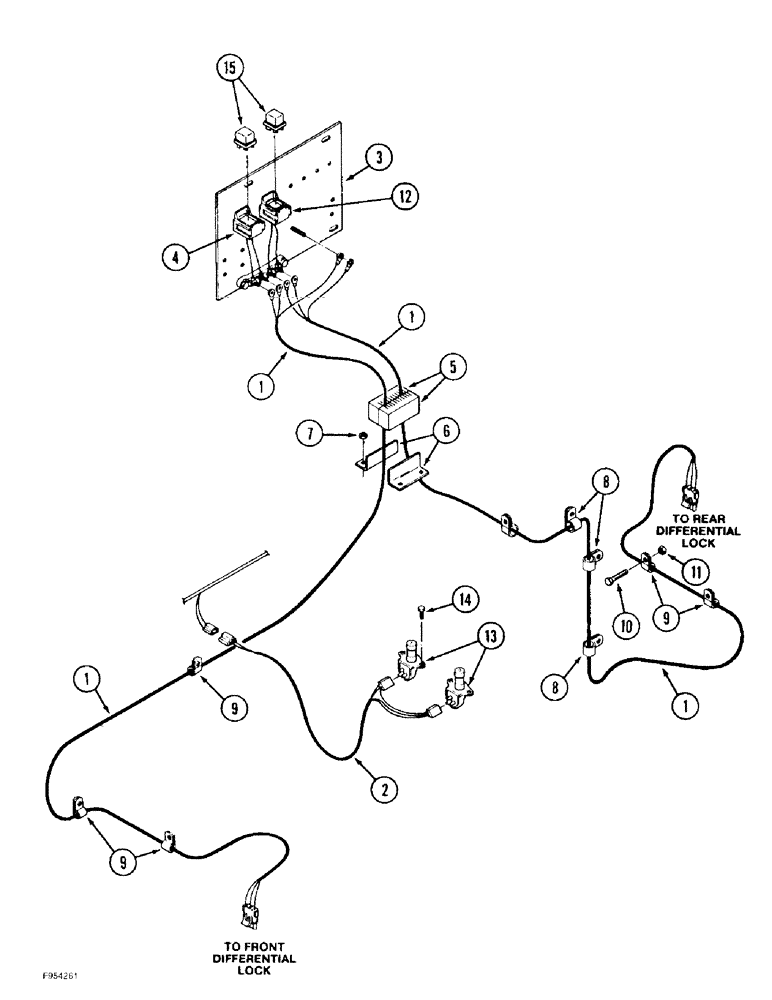

Запчасти Case IH 9390 (4-70) - CONTROL TRACTION DIFFERENTIAL HARNESSES (04) - ELECTRICAL SYSTEMS

1

20-2484T1

HARNESS

- differential, front and rear

2шт.

2

60-6341T1

HARNESS

- switch, differential lock

1шт.

3

60-5052T3

LARGE PLATE

PLATE - relay mounting

1шт.

4

60-6340T1

HARNESS

- relay, front differential lock, See Figure 4-17 for mounting hardware

1шт.

5

60-6066T1

FOAM

SEAL - foam

2шт.

6

60-6065T1

ANGLE BAR

ANGLE - retaining, foam

2шт.

7

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

8

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

P-type, Harness 15/16", Insul, 3/8" Bolt

3шт.

9

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- P-type

5шт.

10

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

60-6339T1

HARNESS

- relay, rear differential lock, See Figure 4-17 for mounting hardware

1шт.

13

20-1988T1

IGNITION SWITCH

SWITCH - on/off, differential

2шт.

14

426-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

- hex, 1/4 NC x 1/2 inch, grade 8

4шт.

15

1983394C2

RELAY

- mini, 12 volt

2шт.
