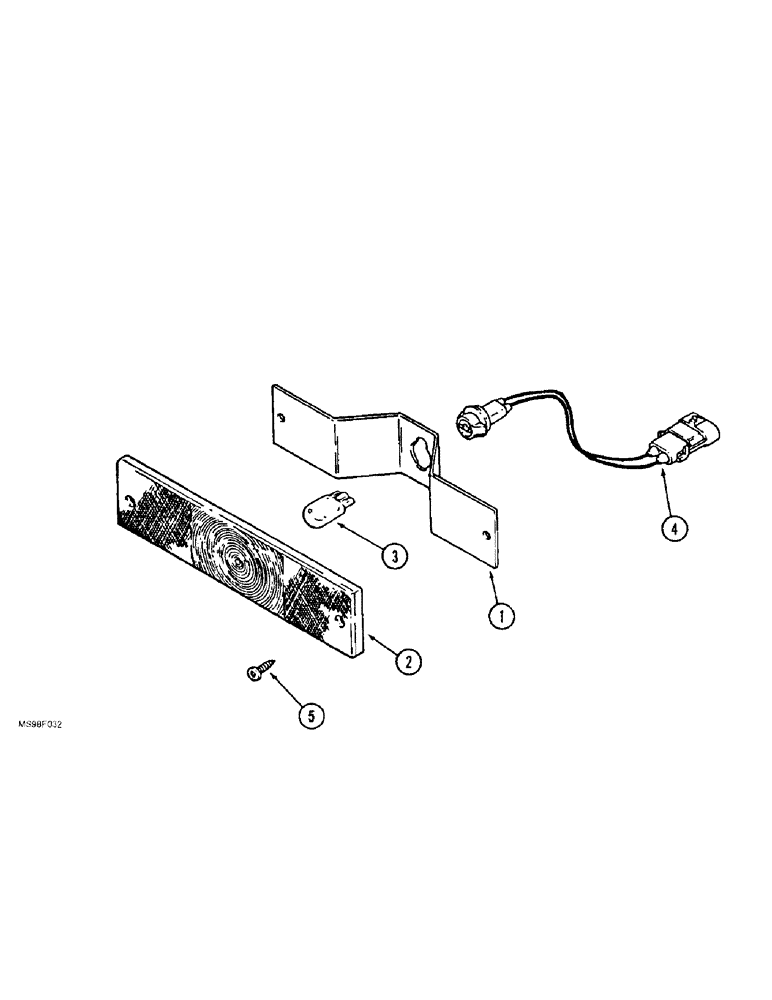

Запчасти Case IH 9390 (4-50[1]) - LAMPS, TAIL LAMP ASSEMBLY (04) - ELECTRICAL SYSTEMS

A186202

LAMP

ASSEMBLY - tail, Includes: Ref. 1 - 5

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - tail lamp

1шт.

2

NSS

NOT SOLD SEPARAT

LENS - tail lamp

1шт.

3

D71346

TAIL LAMP,12V

BULB - lamp, No. 168

1шт.

4

A186201

WIRE HARNESS

HARNESS - includes socket

1шт.

5

260-14416

SELF-TAP SCREW,Cross Pan Hd, #8 x 1"

SCREW, SELF TAPPING, pan Phillips, No. 8-18 x 1"

4шт.
