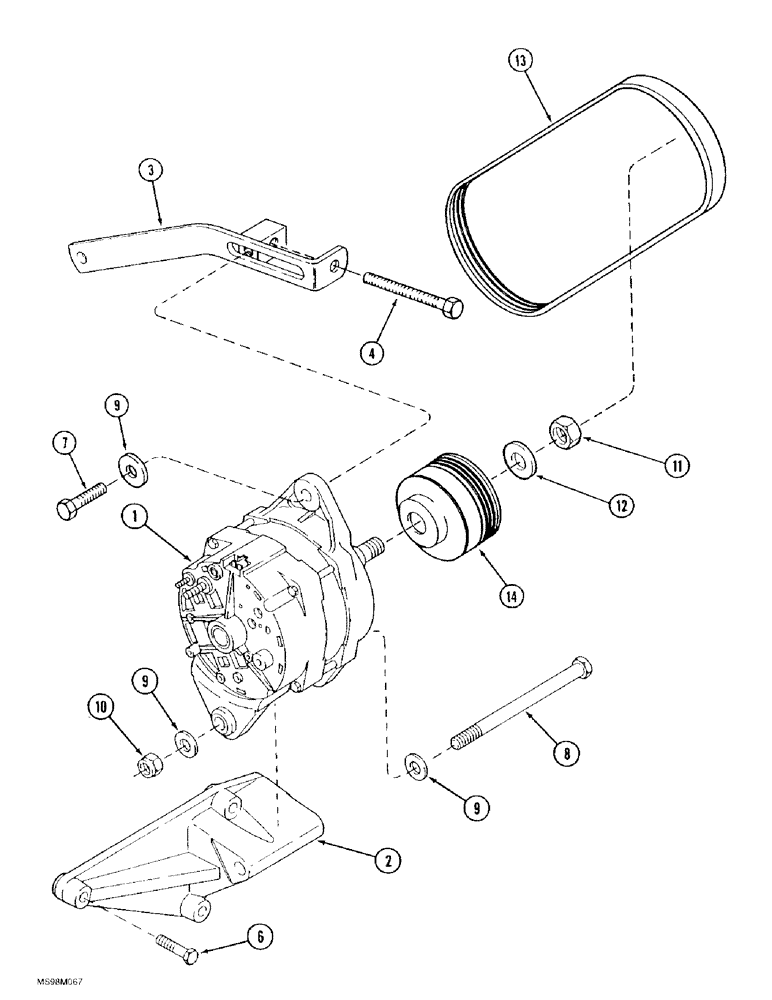

Запчасти Case IH 9390 (4-44) - ALTERNATOR MOUNTING, 9390 ONLY (04) - ELECTRICAL SYSTEMS

1

1987560C1

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 125 amp, engine, includes Ref. 11 A49635 nut and Ref. 12 A40792 washer, parts list Figure 4-46

1шт.

Units with PIN JEE0074933 and after use P/N 125849A1.

1шт.

1

1987560C1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 125 ampere,

1шт.

1

1987560C1C

CORE-ALTERNATOR

Return Part Number

1шт.

2

REF

INSTRUCTION

MOUNT - alternator

1шт.

Units with PIN JEE0074933 and after use P/N 357134A1.

1шт.

3

REF

INSTRUCTION

BRACKET - alternator mount

1шт.

Units with PIN JEE0074933 and after use P/N 367449A2.

1шт.

4

REF

INSTRUCTION

BOLT - hex

1шт.

6

REF

INSTRUCTION

BOLT - hex

3шт.

7

REF

INSTRUCTION

BOLT - hex

1шт.

8

REF

INSTRUCTION

BOLT - hex

1шт.

9

REF

INSTRUCTION

WASHER - flat

3шт.

10

REF

INSTRUCTION

NUT - hex

1шт.

11

A49635

NUT

NUT - shaft

1шт.

12

A40792

WASHER

WASHER - flat, 5/8 x 1-1/4 x 3/32 inch

1шт.

13

90-8383T1

V-BELT,3.60 mm W x 1054.00 mm L, 5 Ribs

Alternator

1шт.

14

REF

INSTRUCTION

PULLEY - alternator

1шт.
