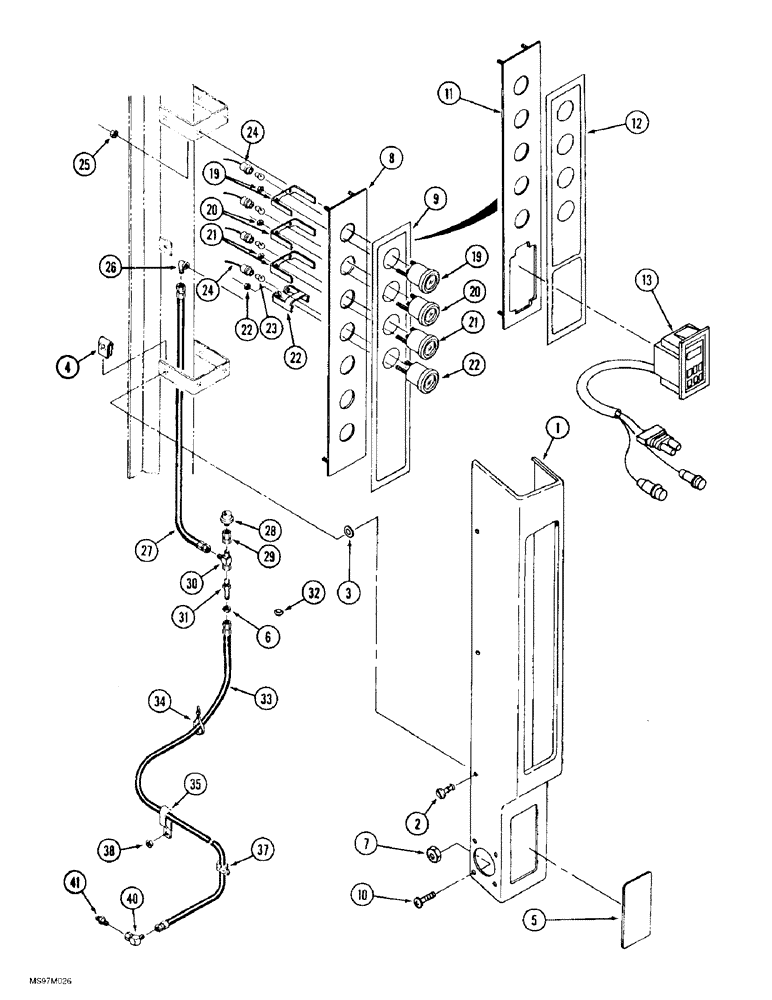

Запчасти Case IH 9390 (4-34) - GAUGE PANEL, P.I.N. JEE0071001 AND AFTER (04) - ELECTRICAL SYSTEMS

1

60-7056T2

COVER

- panel, cab, gauge

1шт.

1

60-6166T1

COVER

- panel, ROPS, gauge, not shown

1шт.

2

19-6136

STUD

- quarter turn, five used on ROPS

6шт.

3

19-5668

WASHER

- flat, 1/4 x 3/4 x 3/16 inch, five used on ROPS

6шт.

4

A36042

CLIP

RETAINER - quarter turn, five used on ROPS

6шт.

5

REF

INSTRUCTION

DECAL - MPH, See Figure 9-120 for decal

1шт.

6

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

1шт.

7

230-14106

LOCK NUT,#6-32, GB

NUT - hex, self-locking, No. 6 NC

4шт.

8

60-5756T1

PANEL

- gauge, if used

1шт.

9

60-5939T3

DECAL

- gauge panel, if used, See Figure 9-116 for decal

1шт.

10

140-101

SCREW,Cross Pan Hd, #6 - 32 x 1/2"

4шт.

11

60-7295T1

PANEL ASSY.

PANEL - gauge, if used

1шт.

12

60-7297T1

DECAL

- gauge panel, if used

1шт.

13

60-7298T1

METER

- area, if equipped

1шт.

19

20-2466T2

VOLTMETER

GAUGE - voltmeter

1шт.

20

20-2464T2

FUEL GAUGE

GAUGE - fuel level

1шт.

21

20-2465T2

GAUGE ASSY.

GAUGE - water temperature, engine

1шт.

22

60-6145T2

OIL PRESSURE GAUGE

GAUGE - oil pressure, engine

1шт.

23

23731R1

BULB,C2F, #1893, 14V

- lamp, No.1893

5шт.

24

60-6292T4

HARNESS

- instrument panel lamp

1шт.

25

9411893

LOCK NUT,#10-32, GB

NUT - hex, self-locking, No. 10 NF

4шт.

26

31-2740

ELBOW

- 90 degree, 1/8 PT x 7/16 inch thread

1шт.

27

31-2784

HOSE

- 1067 mm (42 inch) long, gauges

1шт.

28

60-6330T1

ASSEMBLY

SWITCH - pressure

1шт.

29

218-1557

HYD CONNECTOR,37º, Sw, 7/16"-20 x 1/8"-27 NPTF

ADAPTER - straight, 7/16-20 swivel x 1/8 inch female PT

1шт.

30

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

- 7/16-20 inch flare branch x flare x swivel

1шт.

31

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

ADAPTER - straight, 7/16-20 inch flare x bulkhead flare

1шт.

32

64-146

PLUG

- hole, access

1шт.

33

31-3024

HOSE

- 2743 mm (108 inch) long, engine oil pressure

1шт.

34

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

35

31-1070

CLAMP,5/8", 3/8" Bolt, Double

- extended P-type

1шт.

37

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type, One used on cab 3/4", Insul, 3/8" Bolt

2шт.

38

425-106

NUT,3/8"-16, Cl 5

1шт.

40

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree, 7/16-20 inch flare x swivel

1шт.

41

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

1шт.

35-2010T91

PACKAGE, REPAIR

KIT - area meter installation, P.I.N. JEE0072111 and after, includes (1) 60-7298T1 meter, item 13 and (2) 22-824 tie wraps, not shown

1шт.

Machines built prior to P.I.N. JEE0072111 need to order (1) 35-2011T91 kit in order to install area meter. All machines built P.I.N. JEE0072111 and after are area meter ready and can order (1) 35-2010T91 for service. As an additional option to the area meter, the implement status switch kit 35-2012T91 may be used to relay information on the positioning of the implement.

1шт.

35-2011T91

PACKAGE, REPAIR

KIT - area meter installation, prior to P.I.N. JEE0072111

1шт.

Machines built prior to P.I.N. JEE0072111 need to order (1) 35-2011T91 kit in order to install area meter. All machines built P.I.N. JEE0072111 and after are area meter ready and can order (1) 35-2010T91 for service. As an additional option to the area meter, the implement status switch kit 35-2012T91 may be used to relay information on the positioning of the implement.

1шт.

35-2012T91

IGNITION SWITCH

KIT - implement status switch, not shown, includes (1) 221545A1 switch and (2) 221546A1 harness, may be used with area meter

1шт.

Machines built prior to P.I.N. JEE0072111 need to order (1) 35-2011T91 kit in order to install area meter. All machines built P.I.N. JEE0072111 and after are area meter ready and can order (1) 35-2010T91 for service. As an additional option to the area meter, the implement status switch kit 35-2012T91 may be used to relay information on the positioning of the implement.

1шт.
