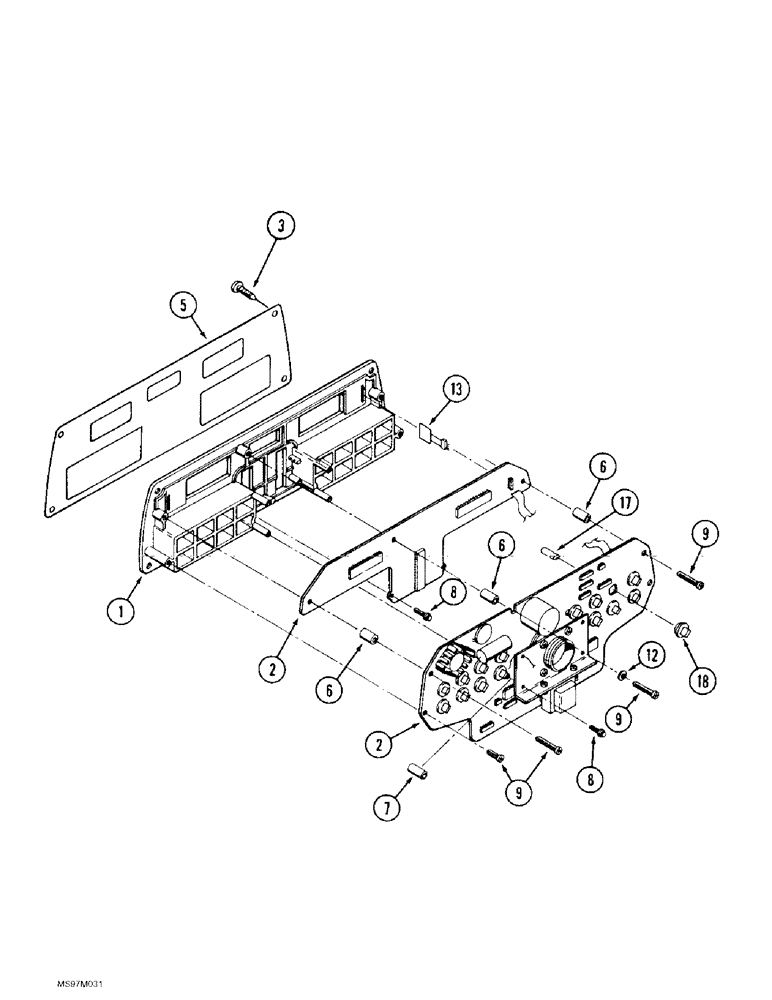

Запчасти Case IH 9390 (4-30) - INSTRUMENT CLUSTER (04) - ELECTRICAL SYSTEMS

60-7162T91

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instrument, Power Shift, prior to P.I.N. JEE0071001, Includes: Ref. 1 - 18

1шт.

60-7284T92

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instrument, Power Shift, P.I.N. JEE0071001 and after, Includes: Ref. 1 - 18

1шт.

60-7161T91

CLUSTER, INSTR.

CLUSTER ASSEMBLY - electronic, SynchroShift, prior to P.I.N. JEE0071001, Includes: Ref. 1 - 18

1шт.

60-7283T91

CONTROL

CLUSTER ASSEMBLY - electronic, SynchroShift, P.I.N. JEE0071001 and after, Includes: Ref. 1 - 18

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - circuit board, plastic

1шт.

2

NSS

NOT SOLD SEPARAT

CIRCUIT BOARD - printed, dash

1шт.

3

280-13410

SELF-TAP SCREW,Slotted Hex Wash Hd, #8 x 5/8"

SCREW - self-tapping, hex washer head, No. 8-18 x 5/8 inch

4шт.

4

60-6344T2

DECAL

- instrument cluster, Power Shift, prior to P.I.N. JEE0071001, not shown

1шт.

4

60-6926T1

DECAL

- instrument cluster, SynchroShift, prior to P.I.N. JEE0071001, not shown

1шт.

5

60-7285T1

DECAL

- instrument cluster, Power Shift, P.I.N. JEE0071001 and after, See Figure 9-114 for decal

1шт.

5

60-7286T1

DECAL

- instrument cluster, SynchroShift, P.I.N. JEE0071001 and after, See Figure 9-114 for decal

1шт.

6

NSS

NOT SOLD SEPARAT

SPACER - circuit board

3шт.

7

NSS

NOT SOLD SEPARAT

SPACER - circuit board

4шт.

8

NSS

NOT SOLD SEPARAT

SCREW - flange head tap, No. 3 x 3/8 inch

6шт.

9

NSS

NOT SOLD SEPARAT

SCREW - pan head tap, No. 8 x 1-1/8 inch

5шт.

12

NSS

NOT SOLD SEPARAT

WASHER - flat, No. 8

1шт.

13

25-9000262

IGNITION SWITCH

SWITCH - instrument cluster

2шт.

17

W10478

LAMP

BULB - lamp, No. 194

16шт.

18

20-1178T1

HOLDER

SOCKET - bulb

16шт.
