(4-24) - FRONT HEADLAMP HARNESS

Запчасти Case IH 9390 (4-24) - FRONT HEADLAMP HARNESS (04) - ELECTRICAL SYSTEMS

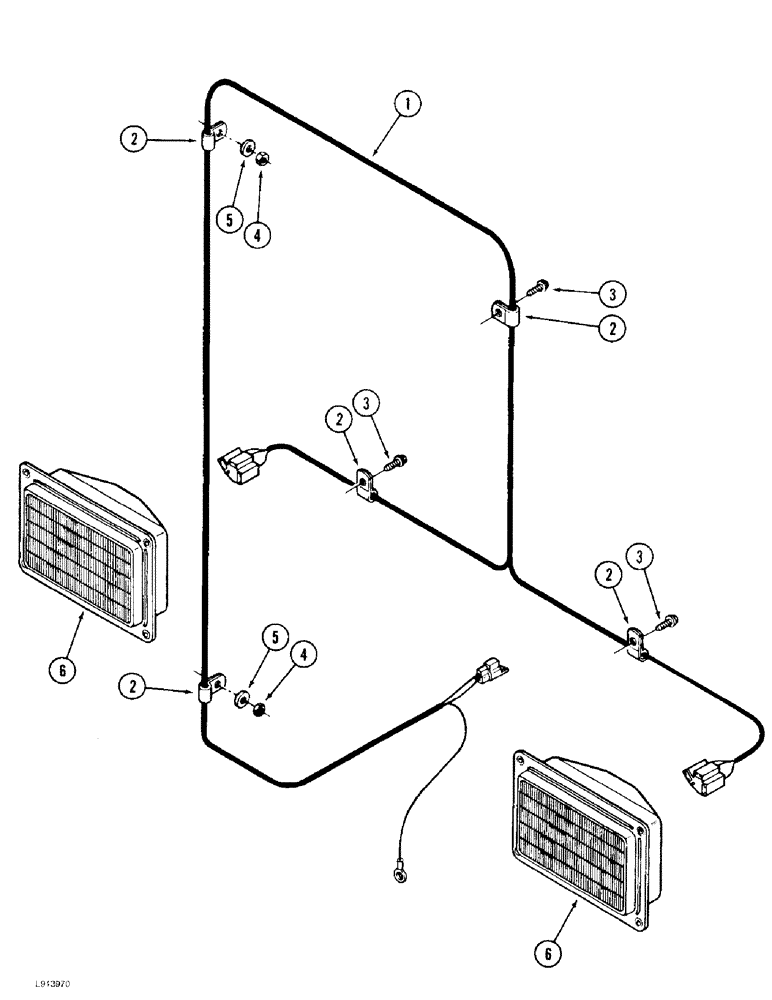

Схема запчастей Case IH 9390 - (4-24) - FRONT HEADLAMP HARNESS (04) - ELECTRICAL SYSTEMS
6
3
5
4
2
3
1
6
3
2
4
2
2
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

60-6783T2

HARNESS

- headlamp, front

1шт.

2

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Tube 3/8", Insul, 3/8" Bolt

5шт.

3

281-14712

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

3шт.

4

425-106

NUT,3/8"-16, Cl 5

3шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

6

60-6731T1

LAMP

- sealed beam, See Figure 4-49 for mounting hardware, replaces 60-6730T92 lamp

2шт.
