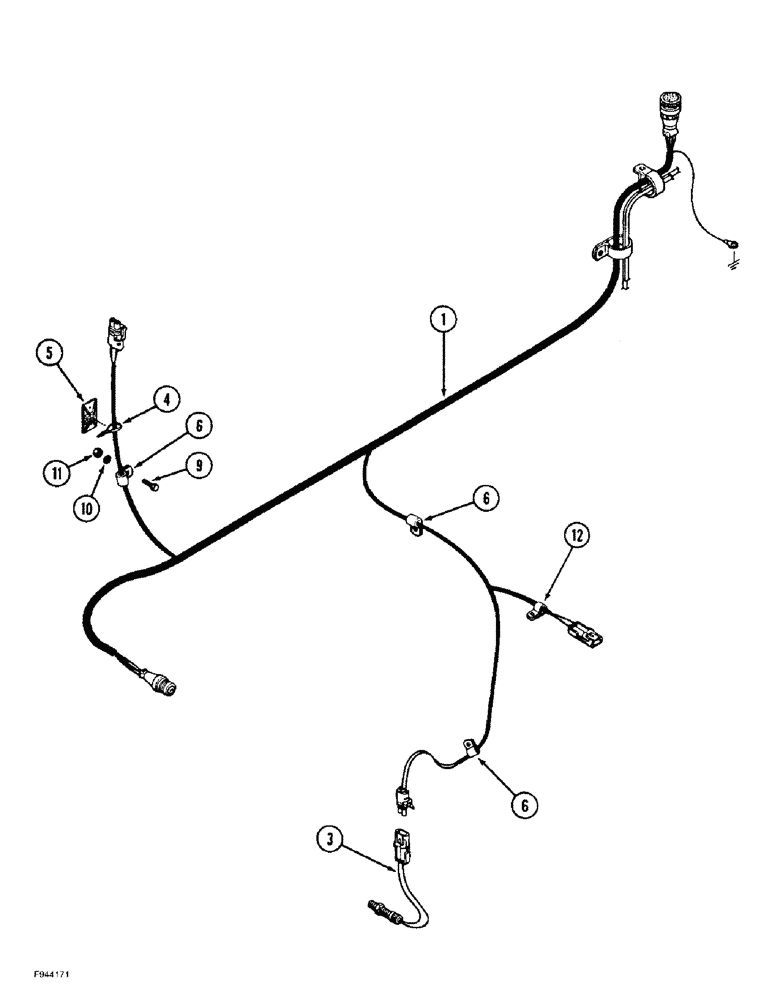

Запчасти Case IH 9390 (4-22) - TRANSMISSION HARNESS, SYNCHROSHIFT TRANSMISSION (04) - ELECTRICAL SYSTEMS

1

60-7074T1

HARNESS

- transmission

1шт.

3

60-7204T1

SENSOR

- magnetic, RPM

1шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

5

22-823

MOUNT

MOUNT - adhesive back, strap

1шт.

6

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

4шт.

9

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

1шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

12

515-2563

CLAMP,1/4", Insul, 1/2" Bolt

P-type 1/4", Insul, 1/2" Bolt

1шт.
