Запчасти Case IH 9390 (4-18) - ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

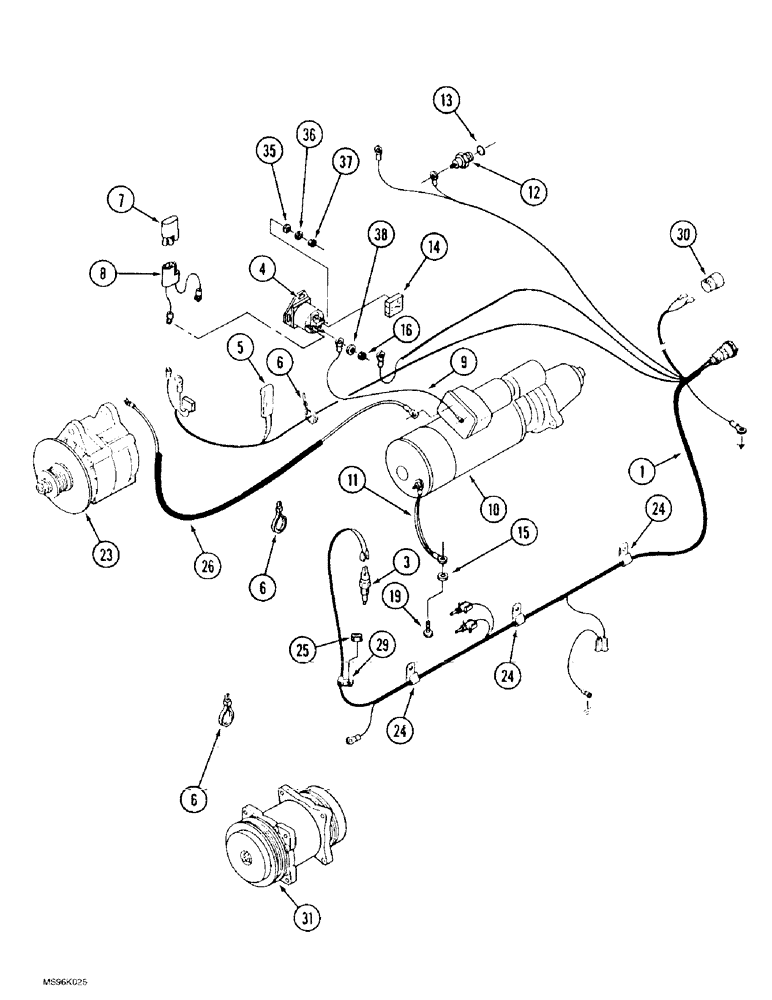

Схема запчастей Case IH 9390 - (4-18) - ENGINE HARNESS (04) - ELECTRICAL SYSTEMS
12
11
38
25
7
24
24
4
6
26
9
10
5
37
15
35
8
13
3
24
16
30
36
29
6
1
23
19
31
6
14

Артикул

Название

Примечание

Количество

1

60-7166T2

HARNESS

HARNESS - engine

1шт.

2

492-11010

LOCK WASHER,#10

WASHER, LOCK, , Not Shown #10

1шт.

Part of solenoid switch kit, with barrier and cover P/N 178149A1

1шт.

3

20-1676T2

TEMPERATURE SENDER

SWITCH - temperature, sender, coolant

1шт.

4

183038A1

SOLENOID

SWITCH - solenoid with cover, starter

1шт.

Part of solenoid switch kit, with barrier and cover P/N 178149A1

1шт.

5

60-6251T1

DIODE

DIODE - electrical

1шт.

6

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP STRAP - tie, 7 inch

5шт.

7

22-738

DIODE

DIODE - electrical

1шт.

8

60-7238T1

HARNESS

HARNESS - diode

1шт.

9

60-7237T1

HARNESS

WIRE - jumper, starter to switch, replaces 20-2463T2 wire

1шт.

10

140855A2

STARTING MOTOR

KIT - starter, 12 volt, Delco Remy, parts list Figure 4-40

1шт.

11

60-6862T1

CABLE

Ground, engine to starter

1шт.

12

60-6935T1

IGNITION SWITCH

SWITCH - temperature, transmission filter, See Figure 8-034 for correct assembly and component parts, Includes: Ref. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

O-Ring, 8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

178148A1

COVER

COVER - solenoid switch, order 178149A1 kit, below

1шт.

Part of solenoid switch kit, with barrier and cover P/N 178149A1

1шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

WASHER, (Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

16

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

2шт.

Part of solenoid switch kit, with barrier and cover P/N 178149A1

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, not shown

2шт.

Part of solenoid switch kit, with barrier and cover P/N 178149A1

1шт.

19

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

BOLT - hex, 3/8 NC x 3/4 inch, grade 8

1шт.

23

1987560C1

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 125 amp, parts list Figure 4-46

1шт.

23

1987560C1GV

ALTERNATOR

Value, 12V, 125A

1шт.

23

1987560C1R

REMAN-ALTERNATOR

12 volt 125 ampere

1шт.

23

1987560C1C

CORE-ALTERNATOR

Return Part Number

1шт.

24

358986R1

CABLE CLIP

CLAMP - P-type

3шт.

25

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

26

60-6860T1

CABLE

CABLE - alternator

1шт.

28

225-14210

NUT,#10-32

NUT, , Not shown #10-32

1шт.

Part of solenoid switch kit, with barrier and cover P/N 178149A1

1шт.

29

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

CLAMP, 3/8", Insul, 3/8" Bolt

1шт.

30

1983233C1

RESTRICTION SWITCH

SWITCH - restriction, air cleaner

1шт.

31

1999755C2

COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioning, parts list Figure 9-106

1шт.

31

86993462R

REMAN-COMPRESSOR

9370, 9380 both (6/95-8/00), 9390 (1/97-8/00); Reman For New P/N 1999755C2

1шт.

31

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

31

48017123R

REMAN-A/C COMP KIT

Reman Kit -- A/C Compressor, Receiver-Dryer, Valve

1шт.

31

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

31

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

31

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

35

495-11028

WASHER,1/4", SAE

WASHER, (flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

36

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

37

425-104

NUT,1/4"-20, Cl 5

NUT - hex, 1/4 inch NC

2шт.

38

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Part of solenoid switch kit, with barrier and cover P/N 178149A1

1шт.

178149A1

SOLENOID SWITCH

KIT - solenoid switch, with barrier and cover, Includes: Ref. 2, 4, 14, 16, 17, 28 and 38.

1шт.

Выбрано товаров: 47
