(4-12) - OVERHEAD ROPS HARNESS

Запчасти Case IH 9390 (4-12) - OVERHEAD ROPS HARNESS (04) - ELECTRICAL SYSTEMS

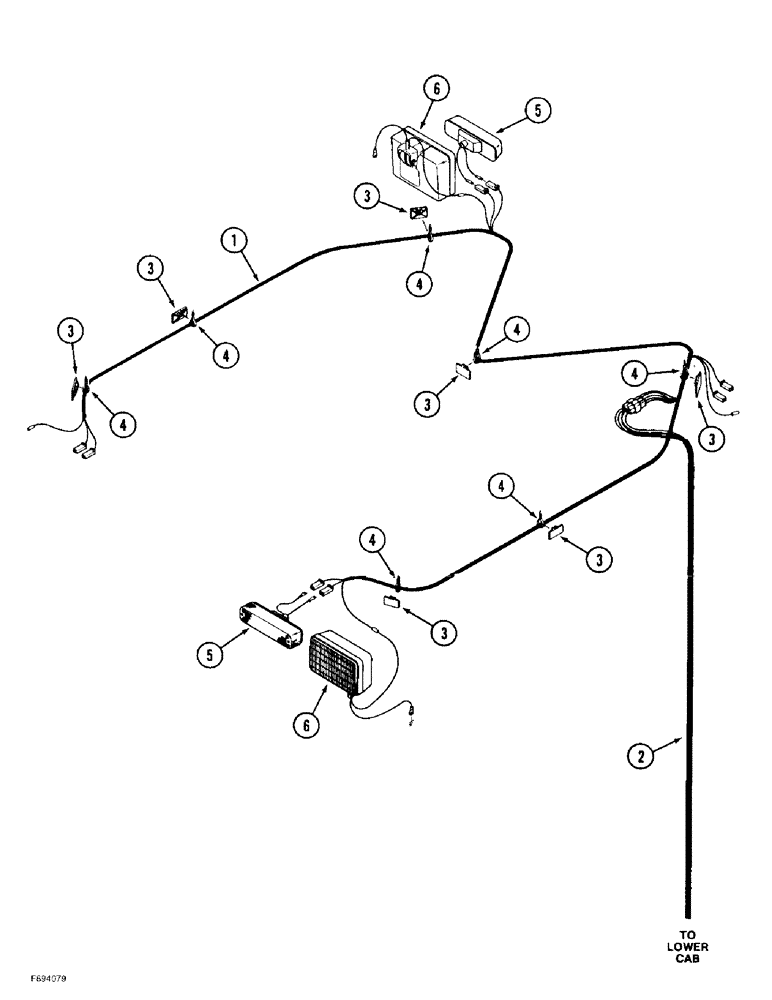

Схема запчастей Case IH 9390 - (4-12) - OVERHEAD ROPS HARNESS (04) - ELECTRICAL SYSTEMS
4
3
4
4
5
2
6
4
3
4
3
4
5
1
3
6
3
3
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

20-2483T1

HARNESS

- overhead

1шт.

2

REF

INSTRUCTION

HARNESS - main ROPS, See Figures 4-06 and 4-08 for correct harness

1шт.

3

22-823

MOUNT

MOUNT - adhesive back, strap

7шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

5

22-665T1

LIGHT ASSY.

LAMP ASSEMBLY - warning, parts list Figure 4-48

4шт.

6

ZAA7189850

HEADLIGHT

LAMP ASSEMBLY - flood, replaces 20-1730T92 lamp, parts list Figure 4-48

4шт.
