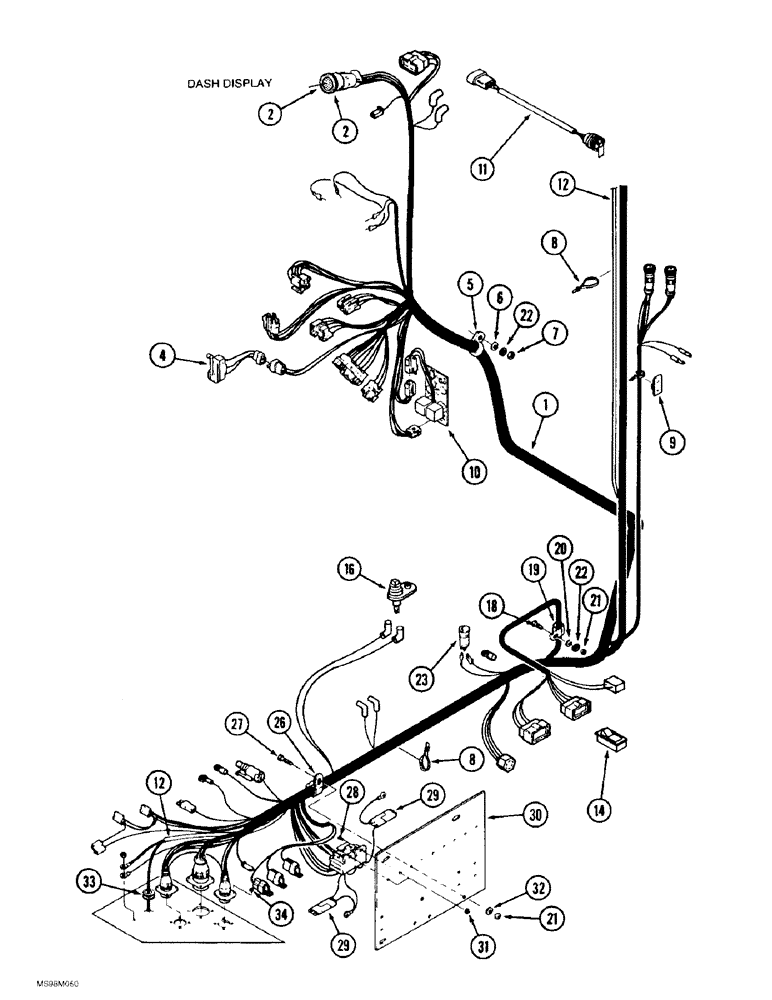

Запчасти Case IH 9390 (4-02) - LOWER CAB HARNESS, SYNCHROSHIFT TRACTOR (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
60-7060T3
HARNESS
- cab main, Includes: Ref. 2
1шт.
2
60-6128T2
RING, SNAP
RING - coupling, socket
1шт.
4
20-2340T91
IGNITION SWITCH
SWITCH ASSEMBLY - micro, See Figure 6-112 for service parts
1шт.
5
515-23270
CLAMP,1 1/16", Insul, 3/8" Bolt
- P-type, 1-1/16 inch ID
1шт.
6
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE
2шт.
7
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
2шт.
8
22-824
CABLE TIE,3/16" x 7 1/4"
STRAP - tie, 7 inch
1шт.
9
22-823
MOUNT
MOUNT - adhesive back, strap
1шт.
10
REF
INSTRUCTION
FLASHER ASSEMBLY - time base, parts list Figure 4-74
1шт.
11
60-7089T2
HARNESS
- auxiliary power
1шт.
12
60-6807T1
HARNESS
- overhead power, for complete overhead wiring system, See Figure 4-10
1шт.
14
245012C1
SWITCH
- rocker, 2-speed
1шт.
16
1534229C1
PUSH BUTTON SWITCH
SWITCH - parking brake
1шт.
18
426-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 8
- hex, 1/4 NC x 3/4 inch, grade 8
1шт.
19
515-23238
CLAMP,15/16", Insul, 3/8" Bolt
P-type 15/16", Insul, 3/8" Bolt
1шт.
20
495-11028
WASHER,1/4", SAE
(flat, 9/32 x 5/8 x 1/16") 1/4", SAE
1шт.
21
232-4114
LOCK NUT,1/4"-20, GC
NUT, LOCK, 1/4"-20, GC
2шт.
22
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
5шт.
23
1964773C1
CIGAR LIGHTER
LIGHTER - cigar, 12 volt, replaces 245576C1 lighter
1шт.
26
515-23381
CLAMP,1 1/2", Insul, 3/8" Bolt
P-type 1 1/2", Insul, 3/8" Bolt
1шт.
27
413-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
- hex, 1/4 NC x 1 inch
1шт.
28
459-1108
SCREW,Slotted Pan Hd, #10-32 x 1/2"
- machine, pan head slotted, No. 10 NF x 1/2 inch
2шт.
30
60-5052T3
LARGE PLATE
PLATE - relay mounting
1шт.
31
193-1000
NUT,Keps, w/LW,#10-32
- hex, with external tooth lock washer, No. 10 NF
2шт.
32
495-21031
WASHER,1/4"
- flat, 5/16 x 3/4 x 1/16 inch
1шт.
33
60-6853T1
BUSHING
- protective
1шт.
34
225-14106
NUT,#6-32
4шт.
Выбрано товаров: 28
