Запчасти Case IH 9390 (9-092) - CAB AIR CONDITIONER AND HEATER MODULE (09) - CHASSIS/ATTACHMENTS

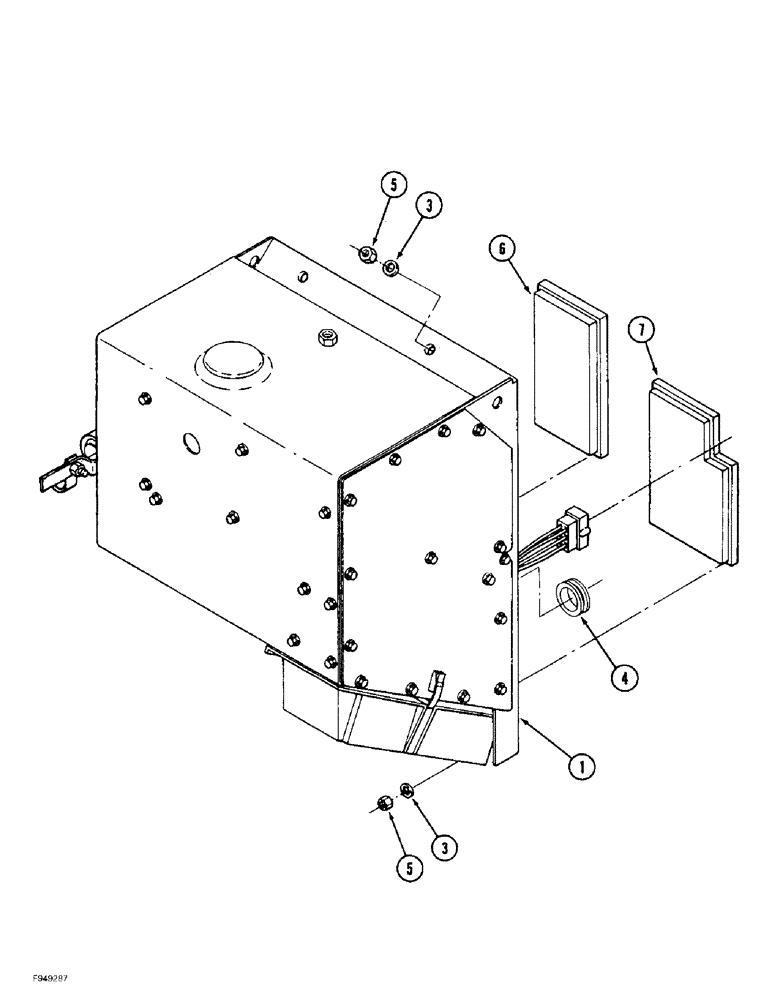

Схема запчастей Case IH 9390 - (9-092) - CAB AIR CONDITIONER AND HEATER MODULE (09) - CHASSIS/ATTACHMENTS
1
6
5
4
3
7
5
3

Артикул

Название

Примечание

Количество

1

60-6973T91

AIR CONDITIONER

MODULE ASSEMBLY - air conditioning and heating, parts list Figures 9-094 and 9-096

1шт.

3

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

4шт.

4

1-1051

GROMMET

- harness protection

1шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

60-3846T2

FILTER

- air recirculation

1шт.

7

60-6706T1

FILTER

- air recirculation, cab

1шт.

Выбрано товаров: 6
