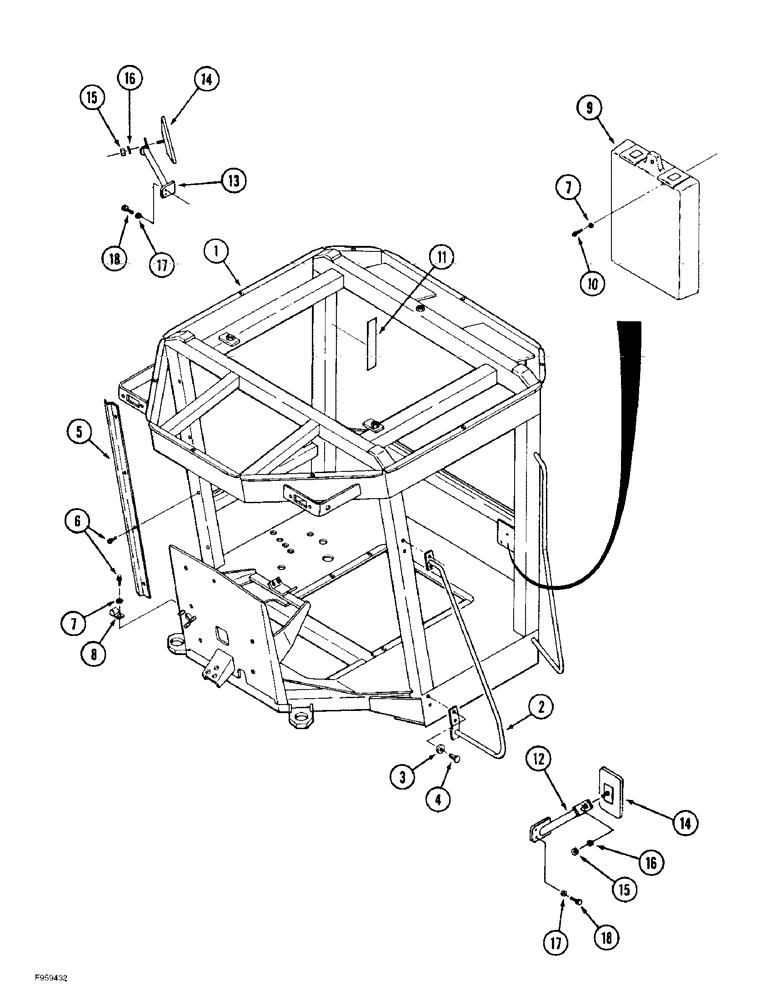

Запчасти Case IH 9390 (9-040) - ROPS FRAME (09) - CHASSIS/ATTACHMENTS

1

60-7087T1

FRAME

- ROPS, protective

1шт.

2

60-5778T1

HANDLE

- grab, side

1шт.

3

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

4шт.

4

426-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 8

- hex, 3/8 NC x 5/8 inch, grade 8

4шт.

5

60-5855T1

GUARD

- wire, ROPS post

1шт.

6

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10 NC x 1/2 inch

6шт.

7

495-31022

WASHER,#10

6шт.

8

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type 1 1/2", Insul, 3/8" Bolt

2шт.

9

R46464

CASE

BOX - operators manual

1шт.

10

463-41012

SCREW,Slot Hex Wash Hd, #10-24 x 3/4"

- machine, hex slotted washer head, No. 10 NC x 3/4 inch

1шт.

11

60-6468T2

DECAL

- Warning, avoid injury or death

1шт.

12

60-7040T1

SUPPORT

MOUNT - mirror, left-hand

1шт.

13

60-7068T1

SUPPORT

MOUNT - mirror, right-hand

1шт.

14

1283403C1

MIRROR

- rear view

2шт.

16

892-11010

LOCK WASHER,M10

2шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

18

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

4шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
