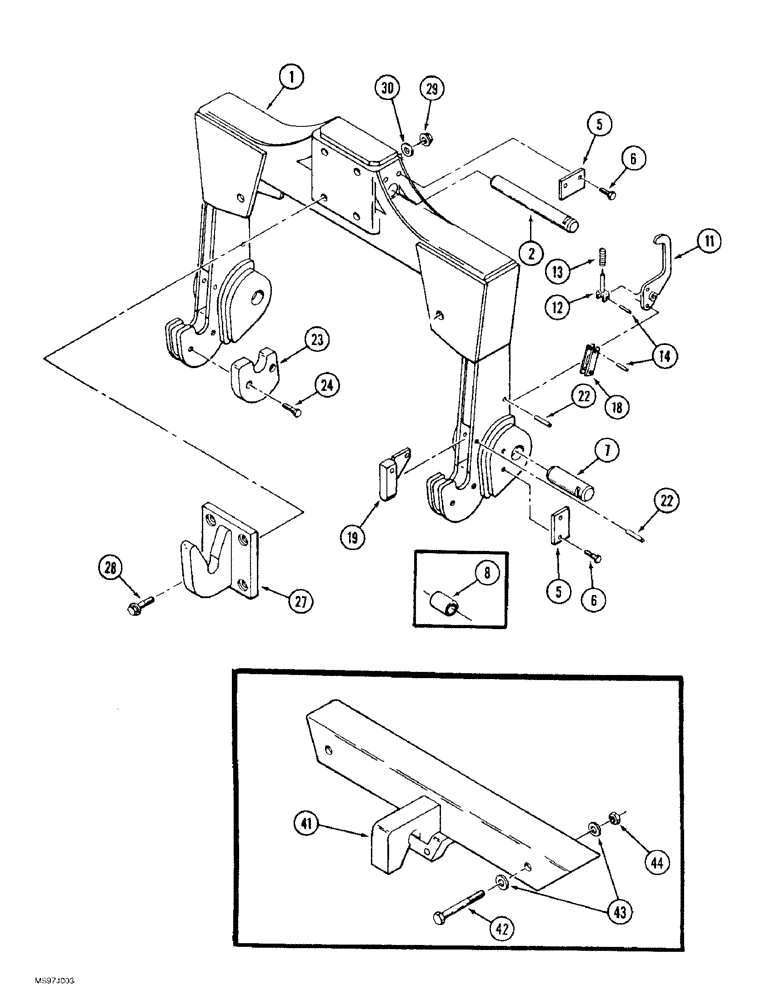

Запчасти Case IH 9390 (9-018) - QUICK HITCH COUPLER, CATEGORY IV-NARROW, PRIOR JEE0069308 AND AFTER (09) - CHASSIS/ATTACHMENTS

186104A1

KIT

- quick hitch coupler, order from Machinery Price List, Includes: Ref. 1 - 30

1шт.

1

281462A1

COUPLING

HITCH - quick attachment

1шт.

2

70-1895T1

PIN

- hitch, upper

1шт.

5

70-3082T2

LARGE PLATE

BLOCK - pin retaining

3шт.

6

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

6шт.

7

70-1894T1

PIN

- hitch, lower

2шт.

8

2-5306T1

SPACER

- conversion

2шт.

11

70-1880T1

LATCH

HANDLE - hitch release

2шт.

12

70-1884T1

PITMAN

LINK - spring return

2шт.

13

2-4345T1

SPRING

- return, handle

2шт.

14

38-32018

PIN,5/16" x 1 1/8", Coiled

6шт.

18

70-1887T1

PITMAN

LINKAGE - connecting, Serial Range: handle-catch

2шт.

19

70-1890T2

STOP

CATCH - hitch release

2шт.

22

38-33240

PIN,1/2" x 2 1/2", Coiled

4шт.

23

70-1920T1

CAP

- spacer, right-hand

1шт.

23

70-1921T1

CAP

- spacer, left-hand

1шт.

24

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

4шт.

27

70-1869T1

HOOK

- quick attachment

1шт.

28

460-1240

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

- hex flange, 3/4 NC x 2-1/2 inch, grade 8

4шт.

29

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

30

495-11081

WASHER,3/4", SAE

4шт.

KIT - conversion, category III, Includes: Ref. 41 - 44

1шт.

41

70-1913T1

HOOK

- quick attachment, category III conversion kit

1шт.

42

426-16120

BOLT,Hex, 1" - 8 x 7-1/2", Gr 8

- hex, 1 NC x 7-1/2 inch, grade 8, Category III Conversion kit

2шт.

43

326-16120

BOLT,Hex, 1" - 8 x 7-1/2", Gr 8

- hex, 1 NC x 7-1/2 inch, grade 8, category III conversion kit

4шт.

44

425-1016

NUT,1"-8, G5

- hex, 1 inch NC, Category III conversion kit

2шт.
