Запчасти Case IH 9390 (2-10) - AIR INDUCTION SYSTEM (02) - ENGINE

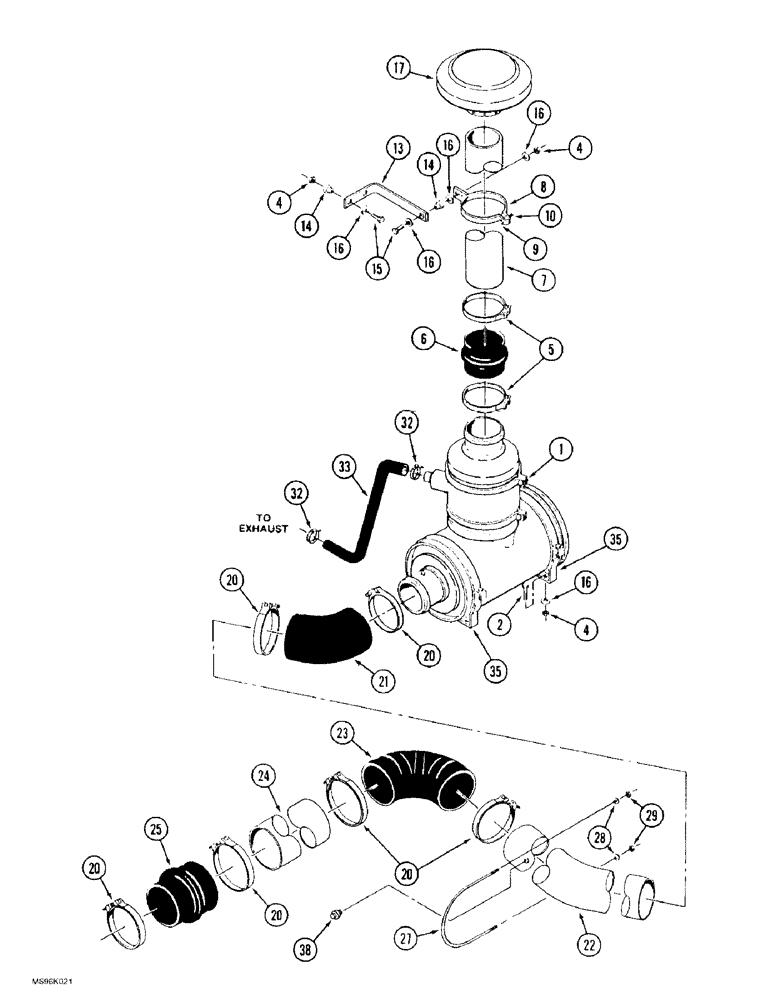

Схема запчастей Case IH 9390 - (2-10) - AIR INDUCTION SYSTEM (02) - ENGINE
5
14
23
16
35
20
29
9
4
32
20
38
14
4
2
16
28
8
6
20
15
24
33
20
4
35
20
32
17
1
27
21
13
7
16
10
25
16
16
22

Артикул

Название

Примечание

Количество

1

90-7779T91

AIR CLEANER

CLEANER ASSEMBLY - air, engine, Includes: precleaner and mounting parts, prior to P.I.N. JEE0036501, parts list Figure 2-12

1шт.

1

90-8298T91

AIR CLEANER

CLEANER ASSEMBLY - air, engine, Includes: precleaner and mounting parts, P.I.N. JEE0036501 and after, parts list Figure 2-12

1шт.

2

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

4

231-4136

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

7шт.

5

214-32120

HOSE CLAMP,6-3/4" - 7-5/8", HD Worm, W/ Liner

CLAMP - adj, 6-3/4 - 7-5/8 inch dia

2шт.

6

9-73

HOSE

- coupling, 7 inch ID

1шт.

7

90-3869T1

TUBE,7 mm OD x 44 mm L

- air inlet

1шт.

8

60-2764T1

MOUNTING CLIP

CLAMP - support

1шт.

9

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

13

90-6870T1

SUPPORT

BRACKET - support, air inlet tube

1шт.

14

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber, brace

3шт.

15

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, grade 8

3шт.

16

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

9шт.

17

9-120

CAP ASSY.

CAP - air inlet

1шт.

20

214-32104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm, W/ Liner

CLAMP - adj, 5-3/4 - 6-5/8 inch dia

6шт.

21

90-6892T1

ELBOW

- 70 degree

1шт.

22

90-8052T1

AIR INTAKE TUBE,6 mm OD x 42.48, 11.57 mm L

TUBE - air intake, prior to P.I.N. JEE0036501

1шт.

22

90-8123T1

AIR INTAKE TUBE,6 mm OD x 42.47, 10.31 mm L

TUBE - air intake, P.I.N JEE0036501 and after

1шт.

23

9-22

ELBOW

- 90 degree

1шт.

24

90-6895T1

AIR INTAKE TUBE,6" OD x 15.25" L

TUBE - air intake, 387 mm (15-1/4 inch) long

1шт.

25

9-76

HOSE,6.00" ID x 6.00"

Coupling 6.00" ID x 6.00"

1шт.

27

44-13T1

U-BOLT,5/16" - 18 x 7.29", Class 8.8

- tube

1шт.

28

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

29

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

32

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, , Adj #36, 1.81/2.75 Type F Worm

2шт.

33

90-3979T1

HOSE,2.00" ID

Aspirator, Air Cleaner to Exhaust 2.00" ID

1шт.

35

90-3871T1

CLIP

CLAMP - band, air cleaner mounting

2шт.

38

1983233C1

RESTRICTION SWITCH

SWITCH - restriction, air cleaner

1шт.

Выбрано товаров: 29
