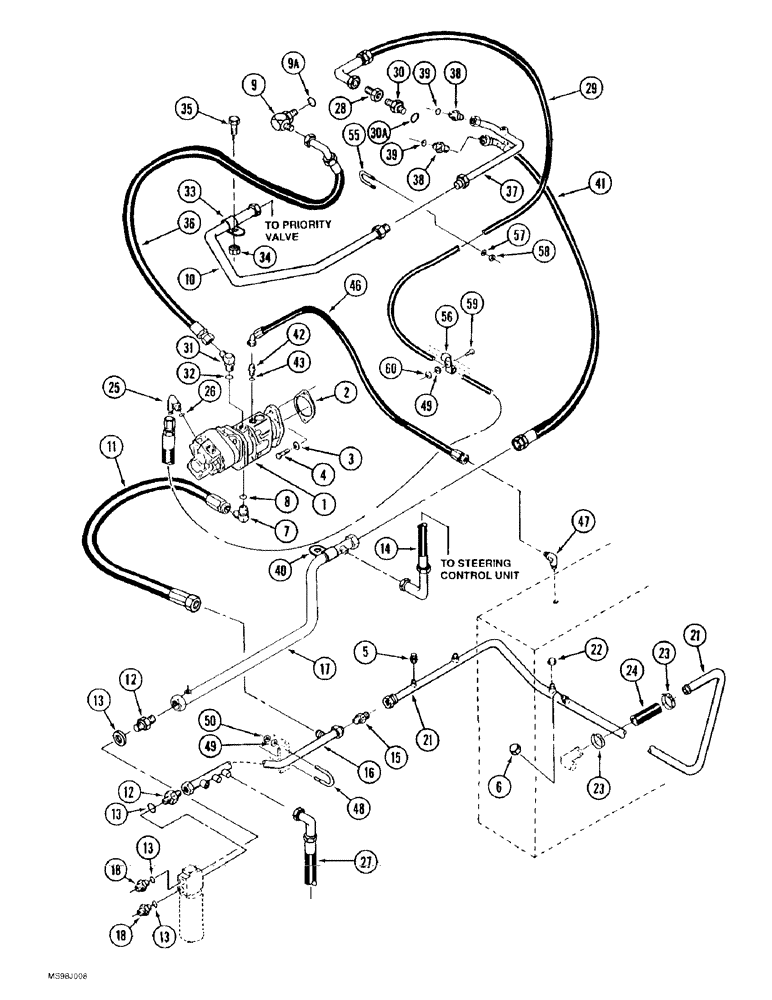

Запчасти Case IH 9390 (8-006) - HIGH OUTPUT HYDRAULIC SYSTEM, PUMP CIRCUIT TO CONTROL VALVE (08) - HYDRAULICS

1

50-3619T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - tandem, no longer available, order component parts separately, parts list Figure 8-022

1шт.

2

18-1176T1

GASKET

- pump

1шт.

3

496-11053

WASHER,17/32" x 1 1/16" x .095", HDN

2шт.

4

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

5

218-756

CAP,37 Degree, 7/8"-14

Used on models without three point hitch 37º, 7/8"-14

2шт.

6

218-758

CAP,37 Degree, 1 5/16"-12

- hex, 1-5/16-12 inch

1шт.

7

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ADAPTER - straight, 1-5/16-12 flare x 1-5/8 inch O-ring, Includes: Ref. 8

1шт.

8

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

9

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 1-5/16-12 flare x 1-1/16-12 inch adj O-ring boss, Includes: Ref. 9A

1шт.

9a

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

10

50-3612T1

HYD TUBE

TUBE - hydraulic valve to priority valve

1шт.

11

31-3002

HOSE

- 889 mm (35 inch) long, to return tube

1шт.

12

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 13

2шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

14

31-3026

HOSE

- 864 mm (34 inch) long

1шт.

15

50-2565T1

VALVE

- check

1шт.

16

50-3581T2

HYD TUBE

TUBE - filter to check valve

1шт.

17

50-3504T2

HYD TUBE

TUBE - priority, Serial Range: valve-filter

1шт.

18

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss

2шт.

21

50-3416T2

HYD TUBE

TUBE - check valve to hydraulic tank

1шт.

22

218-335

CAP,37 Degree, 1 1/16"-12

- hex, 1-1/16-12 inch

1шт.

23

31-1283

MOUNTING CLIP

CLAMP - adjustable, 1-1/4 x 2-5/8 inch

2шт.

24

1-4571

HOSE

- 114 mm (4-1/2 inch) long, cut from 1-4482 bulk hose, see below

1шт.

25

50-3561T1

FITTING

ELBOW - 90 degree, 9/16-18 flare x 7/16-20 inch O-ring boss, Includes: Ref. 26

1шт.

26

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

27

32-187

HOSE

- 762 mm (30 inch) long

1шт.

28

31-2685

FITTING

ADAPTER - orfice

1шт.

29

31-3052

HOSE

- 1524 mm (60 inch) long, to control valve

1шт.

30

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, pilot port, Incl. Ref. 30A

1шт.

30a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

31

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, 1-5/16-12 inch flare x adj O-ring boss, Includes: Ref. 32

1шт.

32

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

1шт.

33

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

34

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

4шт.

35

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

6шт.

36

31-3054

HOSE

- 1372 mm (54 inch) long, Serial Range: pump-tube

1шт.

37

50-3611T1

HYD TUBE

TUBE - supply, tube to control valve

1шт.

38

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 39

2шт.

39

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .116" Thk

2шт.

40

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type 1 1/4", Insul, 3/8" Bolt

1шт.

1-4482

LARGE HOSE

HOSE - bulk, 3048 mm (120 inch) long, sold by the foot

1шт.

41

31-3196

HOSE

- hydraulic control valve to filter, replaces 31-3173 hose

1шт.

42

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 43

1шт.

43

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

46

31-3028

HOSE

- to hydraulic tank

1шт.

47

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 flare x 1/2 inch PT

1шт.

48

19-154

U-BOLT,5/16"-18 x 1 3/4" x 3

- tube

2шт.

49

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

5шт.

50

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

55

19-6258

U-BOLT

- 1/4-20 inch, tube

1шт.

56

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type 7/8", Insul, 3/8" Bolt

3шт.

57

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

58

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

59

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

60

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.
