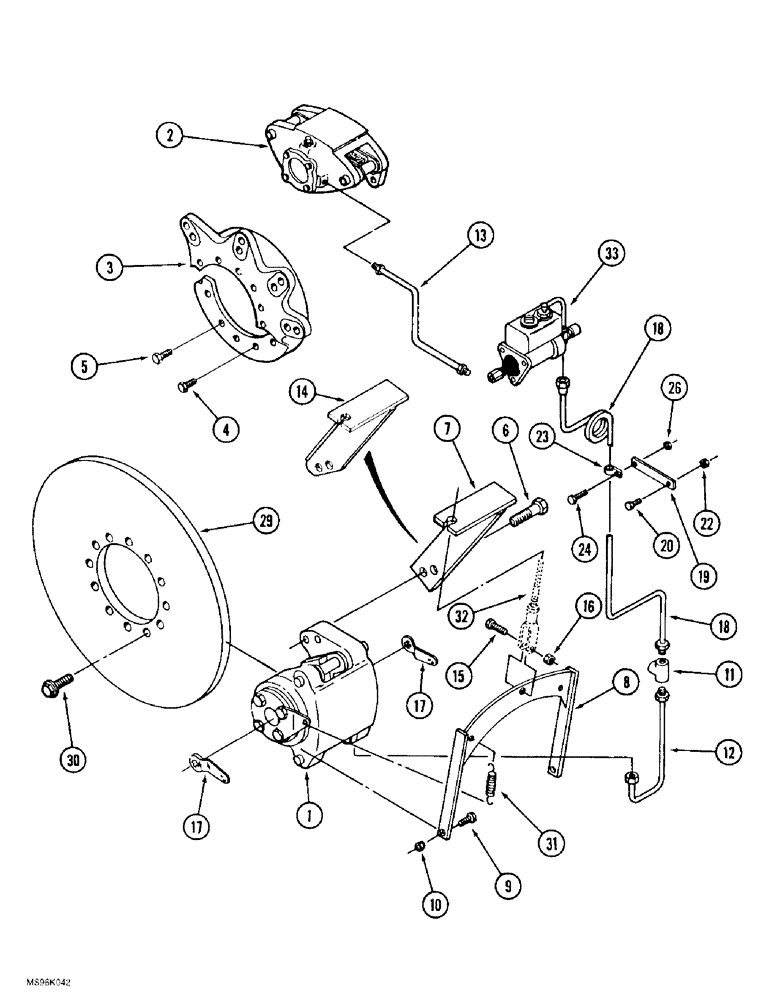

Запчасти Case IH 9390 (7-10) - BRAKE SYSTEM, 9380 AND 9390 ONLY (07) - BRAKES

1

90-8368T92

BRAKE CALIPER

CALIPER ASSEMBLY - brake, with parking brake, parts list Figure 7-14, replaces 90-7650T91 caliper

1шт.

When replacing caliper assembly 90-7650T91 on machines built prior to P.I.N. JEE0037590 with 90-8368T92 caliper, remove parking brake lever 90-8362T1 and replace with shorter levers from original caliper 90-7650T91 or order 90-7656T2 kit, which includes (1) parking brake lever and (1) 800-44035 snap ring.

1шт.

90-8368T92R

REMAN-BRAKE ASSY.

Reman For 9370, 9380, 9390

1шт.

90-8368T92C

CORE-BRAKE ASSY.

Return Number

1шт.

2

90-7871T91

BRAKE CALIPER

CALIPER ASSEMBLY - brake, without parking brake, parts list Figure 7-12

1шт.

3

90-6843T2

SUPPORT

MOUNT - caliper

1шт.

4

40-1185

SCREW,Flg, M14 x 1.5 x 120mm, Gr 12.9

BOLT - 12 point flange, 14 - 1.5 x 120 mm, class 12.9

6шт.

5

40-1186

SCREW,Flg, M14 x 1.5 x 60mm, Gr 12.9

BOLT - 12 point flange, 14 - 1.5 x 60 mm, class 12.9

5шт.

6

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

- hex, 5/8 NC x 2-1/4 inch, grade 8

2шт.

7

90-6347T2

SUPPORT

BRACKET - retaining, parking brake cable, prior to P.I.N. JEE0037590

1шт.

8

90-8381T1

SUPPORT

BRACKET - actuating, park brake, replaces 90-4030T1 bracket

1шт.

9

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

2шт.

10

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

11

222-1150

TEE,7/16"-24, Inv Fl

- 7/16-24 inch inverted flare

1шт.

12

90-7863T1

TUBE,.25" OD

- brake line, branch to cylinder with parking brake

1шт.

13

90-7864T1

TUBE,0.25" OD x 8.97" L

- brake line, branch to cylinder without parking brake

1шт.

14

90-8309T1

SUPPORT

BRACKET - retaining, parking brake cable, P.I.N. JEE0037590 and after

1шт.

15

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

1шт.

16

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

1шт.

17

90-8362T1

BRAKE LEVER

LEVER - parking brake

1шт.

18

90-7862T1

TUBE,0.25" OD x 46.26" L

- brake line, master cylinder

1шт.

19

90-6886T1

LARGE PLATE

STRAP - clamp support

1шт.

20

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

1шт.

22

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

23

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- P-type, 1/4 inch ID

2шт.

24

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

2шт.

26

425-106

NUT,3/8"-16, Cl 5

2шт.

29

90-1367T2

BRAKE DISC

DISC - brake

1шт.

30

428-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

- hex, 5/8 NF x 1-3/4 inch, grade 8

12шт.

31

90-2902T1

SPRING

- return, parking brake

2шт.

32

60-7004T1

CABLE,2529.33mm L

- actuating, parking brake

1шт.

33

60-2821T91

MASTER CYLINDER

CYLINDER ASSEMBLY - brake master, parts list Figure 7-18

1шт.
