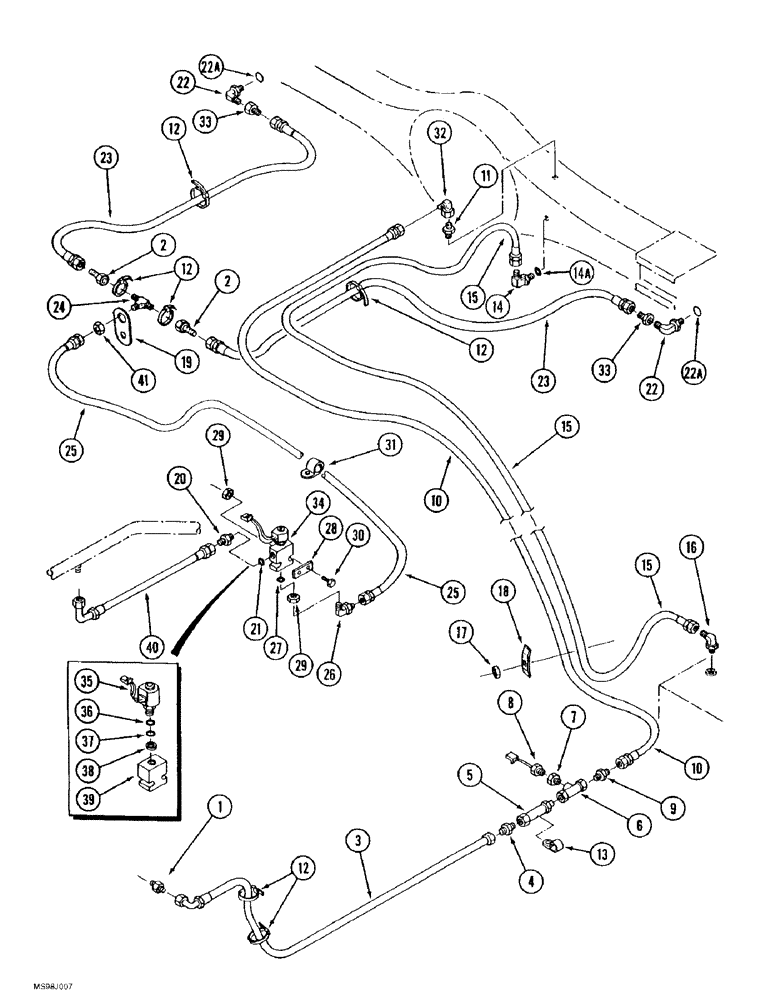

Запчасти Case IH 9390 (6-168) - AXLE COOLING, P.I.N. JEE0069665 AND AFTER (06) - POWER TRAIN

1

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

1шт.

2

218-786

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

ADAPTER - reducing, 3/4-16 female str thread x 9/16-18 inch flare

2шт.

3

18-1537

HOSE ASSY.

HOSE - 1143 mm (45 inch) long

1шт.

4

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight, 7/16-20 flare x 1/4 inch PT

1шт.

5

116195A1

CHECK VALVE

VALVE - check

1шт.

6

31-3069

TEE

ADAPTER - axle cooling

1шт.

7

217-1034

REDUCER,1/4" - 18 Male NPTF x 1/8" - 27 Female NPTF

1шт.

8

1964960C1

PRESSURE SWITCH

SWITCH - axle cooling

1шт.

9

31-2685

FITTING

ADAPTER - orfice

1шт.

10

31-3186

HOSE

- axle cooling

1шт.

11

218-453

HYD CONNECTOR,9/16" - 18 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR, HYD., , Adapter, Straight 9/16"-18, 37º x 1/8"-27, NPTF

1шт.

12

19-135

CABLE TIE

STRAP - tie, nylon

6шт.

13

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

P-type 15/16", Insul, 3/8" Bolt

1шт.

14

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 14A

1шт.

14a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

15

31-3187

HOSE

- axle cooling

1шт.

16

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 flare x 1/2 inch PT

1шт.

17

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

18

R15257

CLAMP

- hose

1шт.

19

189274A1

SPACER

BRACKET - tube mounting, replaces 50-3642T1 bracket

1шт.

20

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 21

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

22

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 22A

2шт.

23

31-3185

HOSE

- 1168 mm (46 inch) long

2шт.

24

218-805

TEE,3/4"-16, 37 Degree, Blkhd

- 3/4-16 inch bulkhead flare branch x flare x flare

1шт.

25

31-3184

HOSE

- lube

1шт.

26

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 27

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

28

50-3580T1

PLATE

BRACKET - valve

1шт.

29

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

30

426-432

BOLT,Hex, 1/4" - 20 x 2", Gr 8

- hex, 1/4 NC x 2 inch, grade 8

2шт.

31

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

1шт.

32

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

1шт.

33

31-3191

ADAPTER

- orifice

2шт.

34

1260819C91

VALVE

- control, Includes: Ref. 35 - 39

1шт.

35

149944C91

VALVE

ASSEMBLY - solenoid, Includes: kit

1шт.

149942C1

SEAL KIT

KIT - seal replacement, Includes: Ref. 36 - 38

1шт.

36

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

37

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

38

NSS

NOT SOLD SEPARAT

WASHER - seal

1шт.

39

NSS

NOT SOLD SEPARAT

VALVE - body

1шт.

40

31-3058

HOSE

- 508 mm (20 inch) long, replaces 31-2067 hose

1шт.

41

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

1шт.

22a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
