Запчасти Case IH 9390 (1-24) - PICTORIAL INDEX, ELECTRONIC CONTROLLED HITCH HYDRAULICS, PRIOR TO P.I.N. JEE0069665 (00) - PICTORIAL INDEX

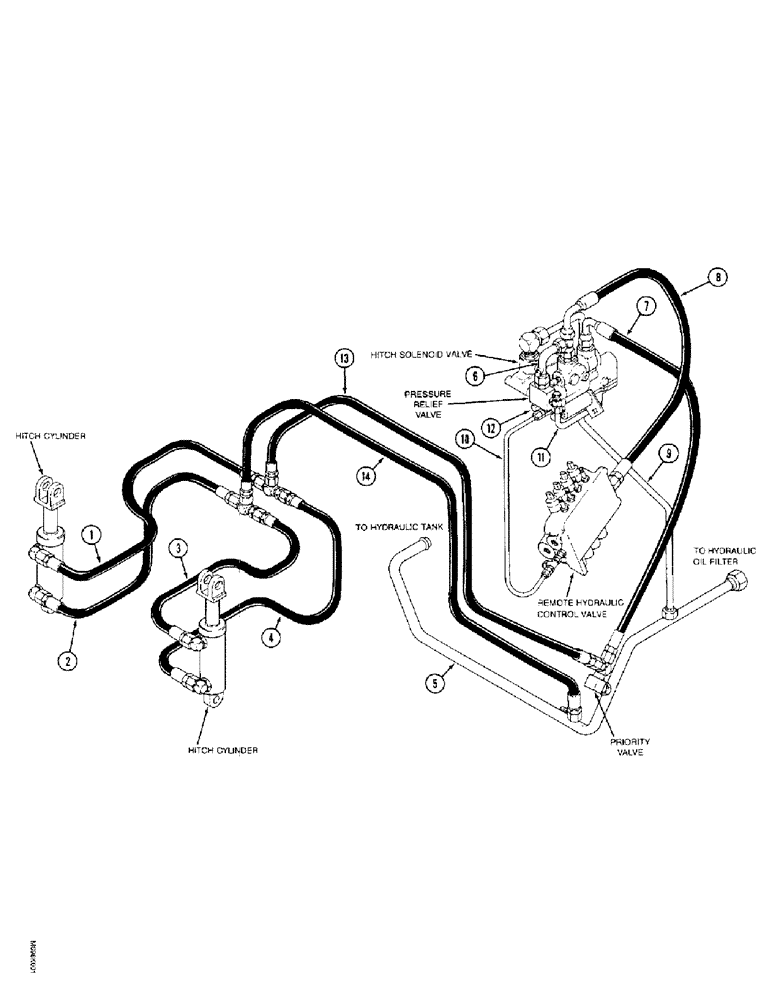

Схема запчастей Case IH 9390 - (1-24) - PICTORIAL INDEX, ELECTRONIC CONTROLLED HITCH HYDRAULICS, PRIOR TO P.I.N. JEE0069665 (00) - PICTORIAL INDEX
5
6
12
14
13
10
9
3
2
1
11
4
8
7

Артикул

Название

Примечание

Количество

1

Left-Hand Hitch Cylinder Drain Hose, 8-87

1шт.

2

Left-Hand Hitch Cylinder Supply Hose, 8-87

1шт.

3

Right-Hand Hitch Cylinder Drain Hose, 8-87

1шт.

4

Right-Hand Hitch Cylinder Supply Hose, 8-87

1шт.

5

Hydraulic Drain Tube To Hydraulic Tank, 8-3

1шт.

6

Pressure Reducing Valve Tube, 8-83

1шт.

7

Hitch Cylinder Supply Hose, 8-83

1шт.

8

Hitch Solenoid Valve Supply Hose, 8-83

1шт.

9

Hitch Solenoid Valve Drain Tube, 8-83

1шт.

10

Hitch Hydraulic Pressure Sensing Hose, 8-83

1шт.

11

Pressure Reducing Valve Drain Tube, 8-83

1шт.

12

Pressure Reducing Valve Drain Hose, 8-83

1шт.

13

Hitch Cylinder Supply Hose, 8-87

1шт.

14

Hitch Cylinder Drain Hose, 8-87

1шт.

Выбрано товаров: 14
