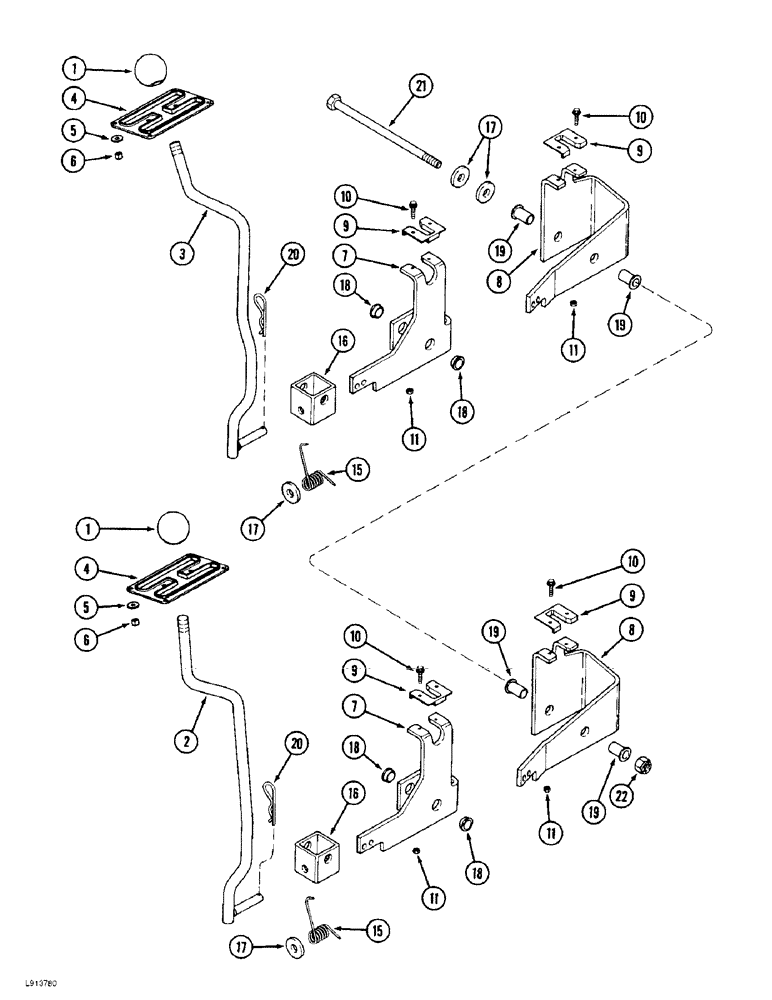

Запчасти Case IH 9390 (6-108) - TRANSMISSION SHIFT CONTROLS, SHIFT LEVERS, SYNCHROSHIFT TRACTOR (06) - POWER TRAIN

1

60-6623T1

BALL KNOB

KNOB - control lever

2шт.

2

60-6645T1

LEVER

- range shift

1шт.

3

60-6644T1

LEVER

- gear shift

1шт.

4

60-6655T1

SIEVE

PLATE - control lever pattern

2шт.

5

495-31022

WASHER,#10

12шт.

6

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

12шт.

7

60-6614T2

SHIFTER FORK

BRACKET - lever, inner

2шт.

8

60-6615T2

SHIFTER FORK

BRACKET - lever, outer

2шт.

9

60-6617T1

SHIFTER FORK

PLATE - support, lever

4шт.

10

363-30812

SCREW,Hex Wash Hd, #8-32 x 3/4"

- machine, hex washer head, No. 8 NC x 3/4 inch

8шт.

11

131-29

LOCK NUT,#8-32, GB

NUT - hex, self-locking, No. 8 NC

8шт.

15

60-6622T1

SPRING

- lever

2шт.

16

60-4293T1

JOINT

TRUNNION - lever

2шт.

17

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

18

90-4368T1

BUSHING,15.95mm ID x 19.13mm OD x 7.92mm L

- pivot

4шт.

19

90-4367T1

BRONZE BUSHING

BUSHING - pivot, long

4шт.

20

19-5400

PIN

- hair, 1/8 inch

2шт.

21

426-8136

BOLT,Hex, 1/2" - 13 x 8-1/2", Gr 8

- hex, 1/2 NC x 8-1/2 inch, grade 8

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
