Запчасти Case IH 9390 (1-12) - PICTORIAL INDEX, HIGH OUTPUT MAIN HYDRAULICS (00) - PICTORIAL INDEX

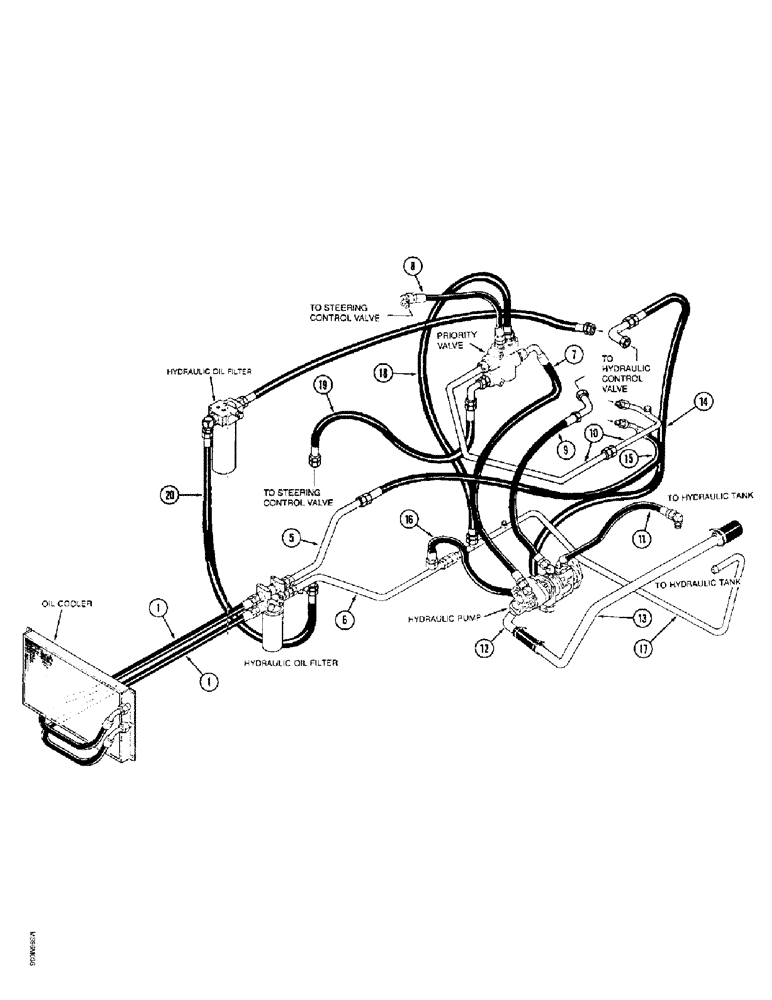

Схема запчастей Case IH 9390 - (1-12) - PICTORIAL INDEX, HIGH OUTPUT MAIN HYDRAULICS (00) - PICTORIAL INDEX
10
20
16
19
14
9
1
8
12
7
5
1
17
13
6
18
15
11

Артикул

Название

Примечание

Количество

1

Oil Cooler to Filter Hose, 8-15

1шт.

5

Hydraulic Pump Supply Tube, 8-15

1шт.

6

Charge Pressure Tube, 8-15

1шт.

7

Gear Pump Outlet Hose, 8-9

1шт.

8

Steering Sensing Hose, 8-9

1шт.

9

Hydraulic Control Valve Supply Hose, 8-7

1шт.

10

Hydraulic Control Valve Supply Tube, 8-7

1шт.

11

Hydraulic Return Hose, 8-7

1шт.

12

Gear Pump Inlet Elbow Tube, 8-9

1шт.

13

Gear Pump Inlet Tube, 8-9

1шт.

14

Hydraulic Pump Pressure Sensing Hose, 8-7

1шт.

15

Hydraulic Control Valve Drain Hose, 8-7

1шт.

16

Hydraulic Pump Supply Hose, 8-7

1шт.

17

Hydraulic Return Tube, 8-7

1шт.

18

Priority Valve Hose to Return Hose, 8-9

1шт.

19

Steering Control Supply, 8-9

1шт.

20

Filter Hose to Charge Tube, 8-15

1шт.

Выбрано товаров: 17
