Запчасти Case IH 9390 (6-090) - 24 SPEED SYNCHROSHIFT TRANSMISSION ASSEMBLY, THIRD SHAFT ASSEMBLY (06) - POWER TRAIN

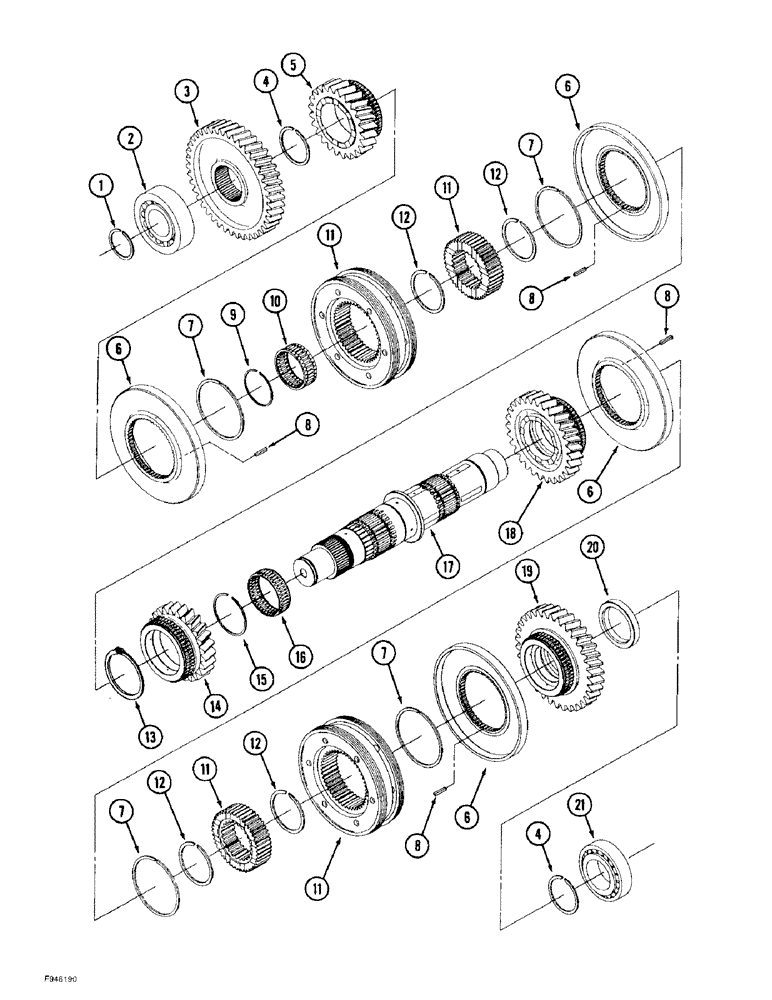

Схема запчастей Case IH 9390 - (6-090) - 24 SPEED SYNCHROSHIFT TRANSMISSION ASSEMBLY, THIRD SHAFT ASSEMBLY (06) - POWER TRAIN
17
3
11
15
8
4
6
13
18
12
7
19
21
7
9
6
5
14
7
7
2
8
12
20
11
12
12
8
6
10
4
16
6
11
8
11
1

Артикул

Название

Примечание

Количество

90-7812T91

TRANSMISSION

ASSEMBLY - mechanical shift, 24-speed, parts list Figures 6-066 - 6-100, Includes: Ref. 1 - 21

1шт.

90-7988T91

SHAFT ASSY.

SHAFT ASSEMBLY - third, Includes: Ref. 1 - 21

1шт.

1

90-7887T1

RING, SNAP

RING - retaining, 2.5 mm

1шт.

Part of third shaft retaining ring kit P/N 90-8037T91.

1шт.

1

90-7888T1

RING, SNAP

RING - retaining, 2.6 mm

1шт.

Part of third shaft retaining ring kit P/N 90-8037T91.

1шт.

1

90-7889T1

RING, SNAP

RING - retaining, 2.7 mm

1шт.

Part of third shaft retaining ring kit P/N 90-8037T91.

1шт.

1

90-7890T1

RING, SNAP

RING - retaining, 2.8 mm

1шт.

Part of third shaft retaining ring kit P/N 90-8037T91.

1шт.

1

90-7891T1

RING, SNAP

RING - retaining, 2.9 mm

1шт.

Part of third shaft retaining ring kit P/N 90-8037T91.

1шт.

1

90-7892T1

RING, SNAP

RING - retaining, 3.0 mm

1шт.

Part of third shaft retaining ring kit P/N 90-8037T91.

1шт.

2

33-1708T1

TAPERED BEARING

BEARING - tapered roller

1шт.

3

90-7893T1

PINION

GEAR - driven, third shaft

1шт.

4

S5040S00F

RING

- retaining

2шт.

5

90-7894T1

PINION

GEAR - drive, first speed

1шт.

6

90-7895T1

DRIVE PLATE

DISK - synchro, speed

4шт.

7

90-7904T1

RING, SNAP

RING - retaining

4шт.

8

SM832508

PIN

- spring

16шт.

9

90-7896T1

RING, SNAP

RING - retaining

1шт.

10

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

BEARING - needle

1шт.

11

33-1830T1

SYNCHRONIZER

- speed

2шт.

12

S5090S00F

RING, SNAP

RING - retaining

4шт.

13

90-8013T1

RING, SNAP

RING - retaining

1шт.

14

90-7897T1

PINION

GEAR - drive, reverse speed

1шт.

15

90-8014T1

RING, SNAP

RING - retaining

1шт.

16

90-8015T1

BEARING, NEEDLE

BEARING - needle

1шт.

17

90-7898T1

SHAFT

- speed

1шт.

18

90-7899T1

PINION

GEAR - drive, second speed

1шт.

19

90-7900T1

PINION

GEAR - drive, third speed

1шт.

20

90-7901T1

SPACER

- third speed gear

1шт.

21

33-1676T1

TAPERED BEARING

BEARING - tapered roller

1шт.

90-8037T91

PACKAGE,SERVICE

KIT - retaining ring, third shaft, Includes: one each of Ref. 1 above

1шт.

Выбрано товаров: 35
