Запчасти Case IH 9390 (6-088) - 24 SPEED SYNCHROSHIFT TRANSMISSION ASSEMBLY, PUMP DRIVE (06) - POWER TRAIN

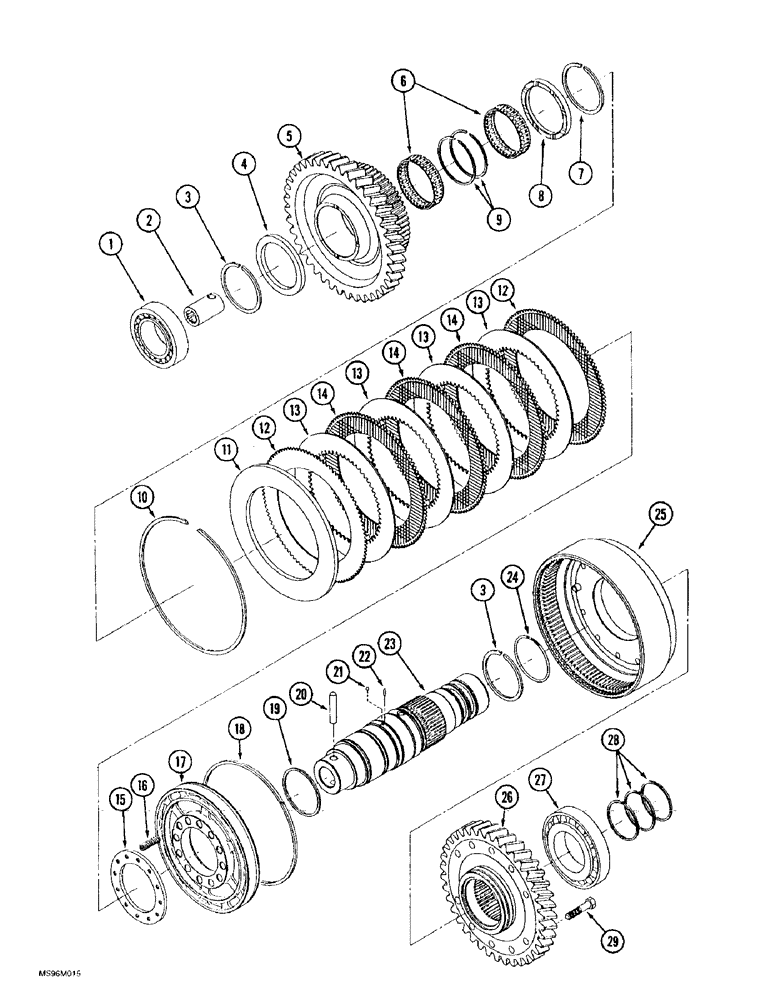

Схема запчастей Case IH 9390 - (6-088) - 24 SPEED SYNCHROSHIFT TRANSMISSION ASSEMBLY, PUMP DRIVE (06) - POWER TRAIN
11
18
26
21
15
1
16
2
13
12
19
20
13
25
14
10
6
5
14
23
12
14
27
13
24
17
29
22
3
13
8
4
9
28
3
7

Артикул

Название

Примечание

Количество

90-7812T91

TRANSMISSION

ASSEMBLY - mechanical shift, 24-speed, parts list Figures 6-066 - 6-100, Includes: Ref. 1 - 29

1шт.

90-8251T91

SHAFT ASSY.

SHAFT ASSEMBLY - pump drive, Includes: Ref. 1 - 29

1шт.

1

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

CUP - tapered roller bearing

1шт.

1

529207R91

BEARING ASSY,54.99mm ID x 29mm W

CONE - tapered roller bearing

1шт.

2

90-7939T1

TRANSMISSION SLEEVE

COUPLING - sleeve, pump

1шт.

3

33-1416T1

RING, SNAP

RING - retaining

2шт.

4

90-8241T1

THRUST WASHER

- thrust

1шт.

5

90-8242T1

PINION

GEAR - drive, high

1шт.

6

90-8243T1

BEARING, NEEDLE

BEARING - needle

2шт.

7

S5040S00F

RING

- retaining

1шт.

8

90-8244T1

THRUST WASHER

- thrust

1шт.

9

90-8245T1

RING, SNAP

RING - snap

2шт.

10

90-8233T1

RING, SNAP

RING - snap

1шт.

11

90-8234T1

PLATE

- end, clutch

1шт.

12

90-8235T1

CLUTCH DISC

PLATE - faced, clutch

2шт.

13

S4070S00F

CLUTCH DISC,2.4mm Thk

PLATE - steel, 2.4 mm thick

1шт.

Steel plates, Ref. 13; a total of 4 pieces must be used.

1шт.

13

S4110S00F

CLUTCH DISC,2.1mm Thk

PLATE - steel, 2.1 mm thick

1шт.

Steel plates, Ref. 13; a total of 4 pieces must be used.

1шт.

14

33-1519T2

NOTCHED DISK

PLATE - faced

3шт.

15

90-8236T1

PLATE

- spring

1шт.

16

S2640S00F

SPRING

- return

12шт.

17

90-8237T1

PISTON

- clutch

1шт.

18

S2630S00F

RING

- sealing

3шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

19

S4410S00F

RING

- piston

1шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

20

90-7941T1

DOWEL

PIN - dowel

1шт.

21

90-8246T1

BALL

- steel

1шт.

22

90-8247T1

NEEDLE

- shaft

1шт.

23

90-8248T1

COUNTERSHAFT

SHAFT - pump

1шт.

24

90-8239T1

O-RING

- special, replaces 90-8249T1 O-ring

1шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

25

90-8238T1

CLUTCH HOUSING

DRUM - clutch

1шт.

26

90-8250T1

PINION

GEAR - input

1шт.

27

90-7937T1

BEARING, ROLLER

CONE - tapered roller bearing

1шт.

28

90-7938T1

SEALING RING

RING - seal

3шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

29

514-738

BOLT,Hex, M10 x 1.25 x 45mm, Cl 8.8, Full Thd

10шт.

90-7927T92

GASKET KIT

KIT - gasket, transmission, Includes: parts on Figures 6-066 - 6-100, prior to P.I.N. JEE0071001

1шт.

90-8401T91

GASKET KIT

KIT - gasket, transmission, Includes: Ref. 18, 19, 24 and 28 and on Figures 6-066 - 6-100, P.I.N. JEE0071001 and after

1шт.
