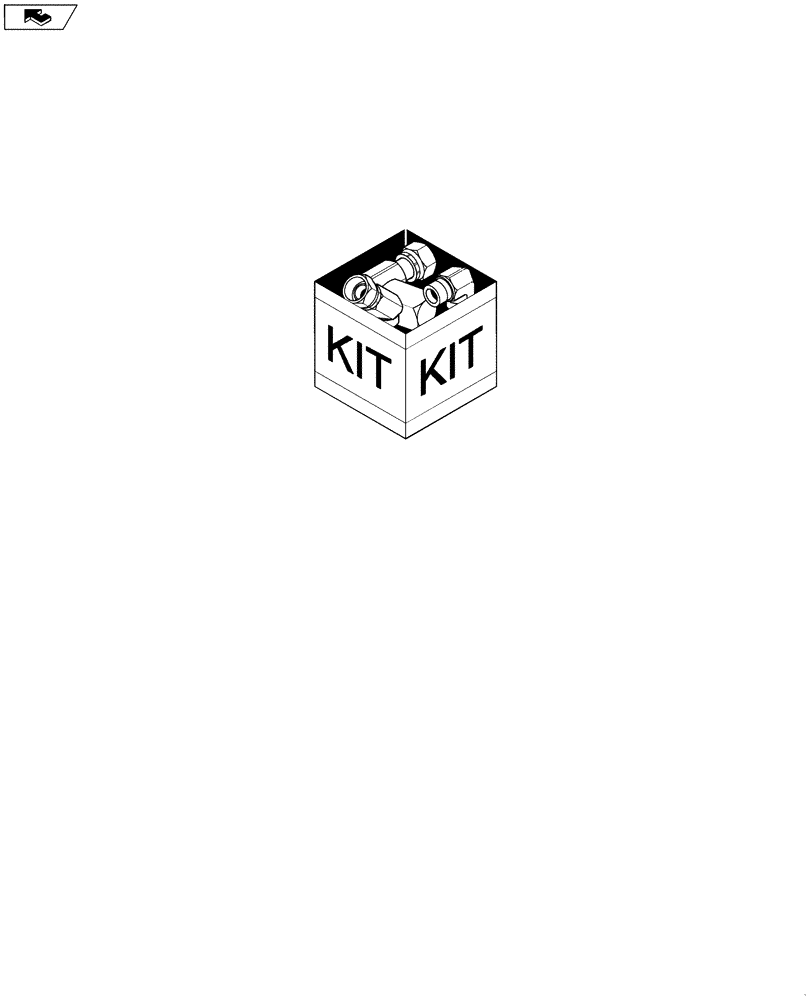

Запчасти Case IH 9390 (6-075) - DIA KIT - CLEAR-VIEW CAPS FOR IDLERS AND ROLLERS (06) - POWER TRAIN

1

73341627

KIT

KIT Clear-View Cap, 9300 Series QuadTrac, Incl 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

CAP Idler; Incl in 1, 11

16шт.

3

NSS

NOT SOLD SEPARAT

PLUG; Incl 4; Incl in 1, 12

24шт.

4

NSS

NOT SOLD SEPARAT

O-RING, Incl in 3

24шт.

5

NSS

NOT SOLD SEPARAT

GASKET; Incl in 1, 11

16шт.

6

NSS

NOT SOLD SEPARAT

WASHER; Incl in 1, 11, 12

240шт.

7

NSS

NOT SOLD SEPARAT

CAP Roller; Incl in 1, 12

24шт.

8

NSS

NOT SOLD SEPARAT

O-RING; Incl in 1, 12

24шт.

9

NSS

NOT SOLD SEPARAT

BOLT; Incl in 1, 11, 12

74шт.

10

73341633

KIT

WRENCH; Plug, Incl in1

1шт.

11

73341628

KIT

KIT Idler Cap; Incl 2 (qty 1), 5 (qty 1), 6 (qty 6), 9 (qty 6)

1шт.

12

73341629

KIT

KIT Roller Cap; Incl 3 (qty 1), 7 (qty 1), 8 (qty 1), 6 (qty 6), 9 (qty 6)

1шт.

13

73341632

KIT

KIT Replacement Plug; Incl 3 (qty 5), 4 (qty 5)

1шт.
