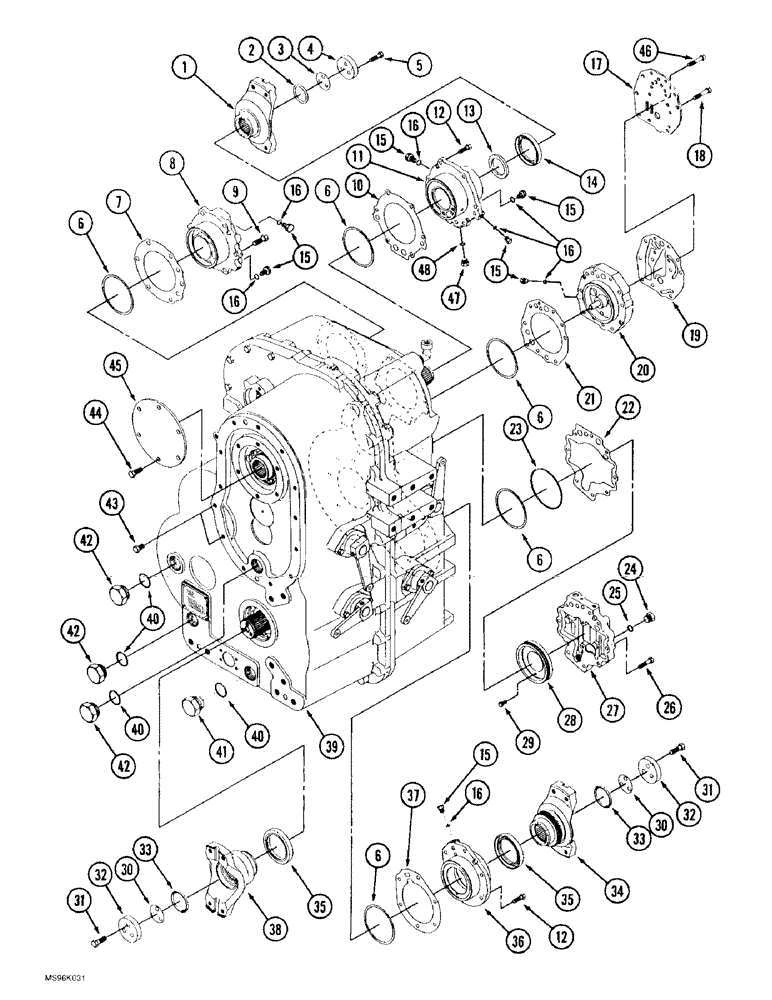

Запчасти Case IH 9390 (6-066) - 24 SPEED SYNCHROSHIFT TRANSMISSION ASSEMBLY, PUMP MOUNTING, COVERS AND YOKES (06) - POWER TRAIN

90-7812T91

TRANSMISSION

ASSEMBLY - mechanical shift, 24-speed, parts list Figures 6-066 - 6-100, Includes: Ref. 1 - 48

1шт.

1

33-1410T1

YOKE

- input

1шт.

2

33-1414T1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

- yoke sealing

1шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

3

90-8253T1

SHIM

- 0.10 mm (0.004 inch) thick

1шт.

3

90-8254T1

SHIM

- 0.30 mm (0.012 inch) thick

1шт.

3

90-8255T1

SHIM

- 0.70 mm (0.028 mm) thick

1шт.

4

90-8256T1

WASHER

PLATE - yoke retainer

1шт.

5

514-929

BOLT,Hex, M14 x 1.5 x 35mm, Cl 10.9, Full Thd

- hex, 14 - 1.5 x 35 mm, class 10.9

3шт.

6

33-1631T1

SHIM

- 0.10 mm (0.004 inch) thick

1шт.

6

33-1632T1

SHIM

- 0.15 mm (0.006 inch) thick

1шт.

6

33-1633T1

SHIM

- 0.30 mm (0.012 inch) thick

1шт.

6

33-1634T1

SHIM

- 0.51 mm (0.020 inch) thick

1шт.

6

33-1635T1

SHIM

- 0.71 mm (0.028 inch) thick

1шт.

7

90-7991T1

GASKET

- bearing retainer

1шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

8

90-8257T1

RETAINER

- bearing

1шт.

9

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

10

90-7993T1

GASKET

- bearing retainer, input shaft

1шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

11

90-8258T1

RETAINER

- bearing

1шт.

12

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 10 - 1.25 x 30 mm

12шт.

13

33-1636T1

WASHER

- retrainer, seal

1шт.

14

33-1412T1

OIL SEAL

SEAL - input yoke

1шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

15

S1030S00F

PLUG

- hex, O-ring boss

7шт.

16

S1040S00F

O-RING

- plug

9шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

17

90-7995T1

RETAINER

PLATE - retainer cover

1шт.

18

514-720

BOLT,Hex, M10 x 1.25 x 50mm, Cl 8.8, Full Thd

5шт.

19

90-7996T1

GASKET

- cover plate

1шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

20

90-7997T1

RETAINER

- bearing, third shaft

1шт.

21

90-7998T1

GASKET

- bearing retainer, third shaft

1шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

22

90-7999T1

GASKET

- ditch plate

1шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

23

33-1620T1

GASKET

O-RING - retainer

1шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

24

S1210S00F

PLUG

- hex, O-ring boss

1шт.

25

S1200S00F

O-RING

- plug

1шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

26

514-718

BOLT,Hex, M10 x 1.25 x 40mm, Cl 8.8, Full Thd

- hex, 10 - 1.25 x 40 mm

5шт.

27

90-8000T1

PLATE

- ditch

1шт.

28

90-8001T1

RETAINER

- bearing, fourth shaft

1шт.

29

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

30

33-1450T1

SHIM

- 0.10 mm thick

1шт.

30

33-1451T1

SHIM

- 0.30 mm thick

1шт.

31

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

6шт.

32

33-1432T1

WASHER

PLATE - retainer

2шт.

33

33-1422T1

O-RING

O-RING - yoke sealing

2шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

34

33-1429T1

YOKE

- output

1шт.

35

33-1428T1

OIL SEAL

SEAL - output shaft

2шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

36

90-8002T1

RETAINER

- bearing, fifth shaft

1шт.

37

90-8003T1

GASKET

- bearing retainer, fifth shaft

1шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

38

90-8004T1

YOKE

- output, rear, 8C

1шт.

39

90-7987T1

HOUSING

- rear, transmission

1шт.

40

S1080S00F

O-RING

- plug

4шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

41

S1090S00F

PLUG

- magnetic

1шт.

42

S1010S00F

PLUG, DRAIN

PLUG - O-ring boss

3шт.

43

514-841

BOLT,Hex, M12 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

44

514-834

BOLT,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 12 - 1.25 x 30 mm

6шт.

45

33-1619T2

COVER

- end, used on models without PTO

1шт.

46

514-738

BOLT,Hex, M10 x 1.25 x 45mm, Cl 8.8, Full Thd

1шт.

47

S1390S00F

PLUG

- O-ring boss

1шт.

48

S1320S00F

O-RING

- plug

1шт.

Part of transmission gasket kit P/N 90-7927T92

1шт.

90-7927T92

GASKET KIT

KIT - gasket, transmission, Includes: Ref. 48 and parts on Figures 6-066 - 6-100, prior to P.I.N. JEE0071001

1шт.

90-8401T91

GASKET KIT

KIT - gasket, transmission, Includes: Ref. 2, 7, 10, 14, 16, 19, 21, 22, 23, 25, 33, 35, 37 and 40, and parts on Figures 6-066 - 6-100, P.I.N. JEE0071001 and after

1шт.
