Запчасти Case IH 9390 (6-058) - 12 SPEED SYNCHROSHIFT TRANSMISSION ASSEMBLY, INPUT SHAFT (06) - POWER TRAIN

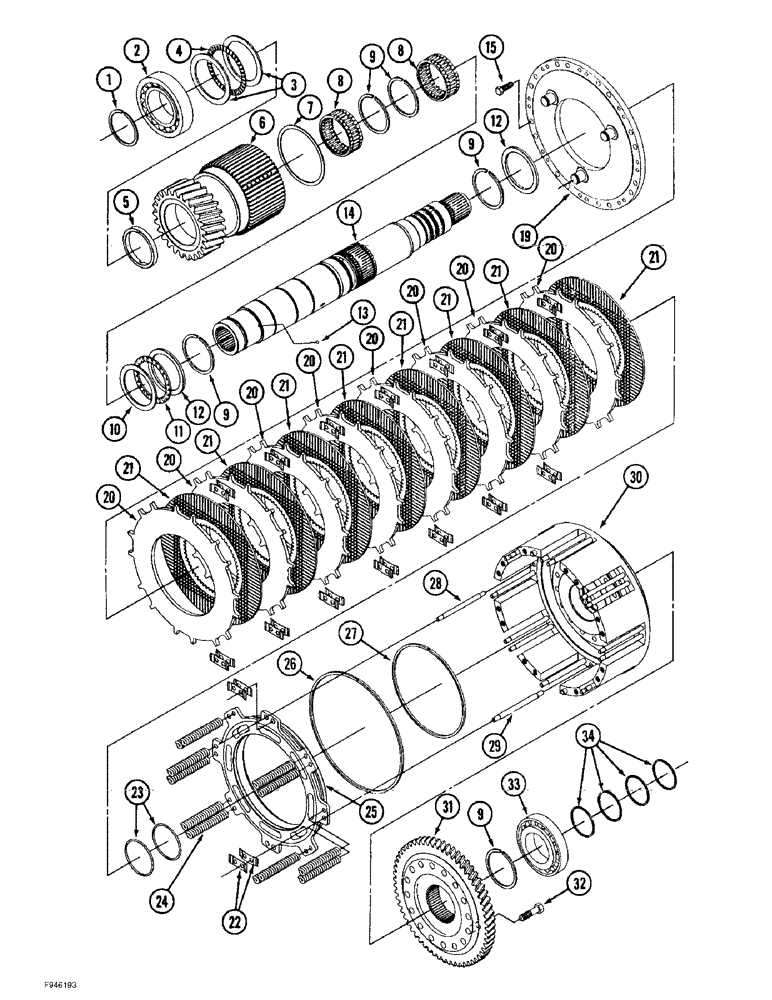

Схема запчастей Case IH 9390 - (6-058) - 12 SPEED SYNCHROSHIFT TRANSMISSION ASSEMBLY, INPUT SHAFT (06) - POWER TRAIN
4
19
15
32
33
21
20
21
20
26
2
11
9
30
9
7
5
24
21
29
20
13
20
20
28
21
9
23
8
27
22
12
21
31
21
9
10
3
34
25
14
20
21
1
20
21
6
20
12
8

Артикул

Название

Примечание

Количество

90-7775T91

TRANSMISSION

ASSEMBLY - mechanical shift, parts list Figures 6-034 - 6-064, Includes: Ref. 1 - 34

1шт.

90-7943T91

SHAFT

ASSEMBLY - input, 12 speed, Includes: Ref. 1 - 34

1шт.

1

90-7916T1

RING

- retaining, 2.5 mm

1шт.

Part of input shaft retaining ring kit P/N 90-8036T91

1шт.

1

90-7917T1

RING

- retaining, 2.6 mm

1шт.

Part of input shaft retaining ring kit P/N 90-8036T91

1шт.

1

90-7918T1

RING

- retaining, 2.7 mm

1шт.

Part of input shaft retaining ring kit P/N 90-8036T91

1шт.

1

90-7919T1

RING

- retaining, 2.8 mm

1шт.

Part of input shaft retaining ring kit P/N 90-8036T91

1шт.

2

90-7920T1

BEARING, ROLLER

BEARING - tapered roller

1шт.

3

90-7921T1

THRUST RING

WASHER - thrust

2шт.

4

90-7922T1

THRUST RING

BEARING - thrust

1шт.

5

90-7923T1

COLLAR

- bearing

1шт.

6

90-7924T1

PINION

GEAR - drive, input

1шт.

7

33-1829T1

RING, SNAP

RING - retaining

1шт.

8

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

BEARING - needle

2шт.

9

S5040S00F

RING

- retaining

5шт.

10

S5230S00F

BEARING WASHER

WASHER - thrust

1шт.

11

A75158

THRUST BEARING,76.25mm ID x 95mm OD x 1.98mm W

BEARING - thrust, replaces S5050S00F bearing

1шт.

12

90-7925T1

WASHER

- thrust

2шт.

13

S14701960

BALL,3.968mm OD

- steel

1шт.

14

90-7926T1

SHAFT

- input

1шт.

15

514-721

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

- hex, 10 - 1.25 x 30 mm

14шт.

19

90-7930T1

COVER

- clutch

1шт.

20

33-1783T3

CLUTCH DISC

PLATE - steel, 6.8 mm (0.268 inch)

1шт.

Steel plates, Ref. 20; a total of 8 pieces must be used.

1шт.

20

33-1784T3

CLUTCH DISC

PLATE - steel, 7.2 mm (0.283 inch)

1шт.

Steel plates, Ref. 20; a total of 8 pieces must be used.

1шт.

21

33-1663T1

CLUTCH DISC

PLATE - clutch, friction

8шт.

22

33-1785T1

SPRING

PLATE - separating, clutch

32шт.

23

90-7931T1

GASKET

O-RING - shaft

2шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

24

90-7932T1

SPRING

- return

12шт.

25

90-7933T1

PISTON

- clutch, prior to P.I.N. JEE0071001

1шт.

25

90-8389T1

PISTON

- clutch, P.I.N. JEE0071001 and after

1шт.

26

33-1662T1

PISTON

RING - seal, large, prior to P.I.N. JEE0071001

1шт.

Part of transmission gasket kit P/N 90-7927T92

1шт.

26

90-8385T1

O-RING

RING - seal, P.I.N. JEE0071001 and after

1шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

27

S2630S00F

RING

- sealing, prior to P.I.N. JEE0071001

1шт.

Part of transmission gasket kit P/N 90-7927T92

1шт.

27

90-8386T1

O-RING

RING - seal, P.I.N. JEE0071001 and after

1шт.

Part of transmission gasket kit P/N 90-8401T91.

1шт.

28

90-7934T1

GUIDE

PIN - guide, use with 90-7932T1 return spring, Ref. 24

12шт.

29

33-1659T1

GUIDE PIN

PIN - guide, use with 33-1785T1 separating plate, Ref. 22

4шт.

30

90-7935T1

DRUM

- clutch, prior to P.I.N. JEE0071001

1шт.

30

90-8388T1

DRUM

- clutch, P.I.N. JEE0071001 and after

1шт.

31

90-7936T1

PLIERS

GEAR - drive, pump

1шт.

32

514-831

BOLT,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

- hex, 12 - 1.25 x 45 mm

16шт.

33

90-7937T1

BEARING, ROLLER

CONE - tapered roller bearing

1шт.

34

90-7938T1

SEALING RING

RING - seal

4шт.

90-7927T92

GASKET KIT

KIT - gasket, transmission, Includes: Ref. 26 and 27 and parts on Figures 6-034 - 6-064, prior to P.I.N. JEE0071001

1шт.

90-8401T91

GASKET KIT

KIT - gasket, transmission, Includes: Ref. 23, 26 and 27, and parts on Figures 6-034 - 6-064, P.I.N. JEE0071001 and after

1шт.

90-8036T91

PACKAGE,SERVICE

KIT - retaining ring, input shaft, Includes: one each of Ref. 1

1шт.

Выбрано товаров: 55
